1.54" LCD Screen Module | 240x240 RGB SPI Interface | STM32/C51/MSP430 Support

COD: DS20205
Dimensioni:

Risoluzione:

Interfaccia:

Supporto per touchscreen:

Supporto al consiglio di amministrazione

Raspberry Pi

abc

1.54 inch IPS TFT, 65K colors, 4-wire SPI interface. Wide viewing angle, -10~60℃ operation. STM32/C51/MSP430 code examples. Ideal for embedded projects!

Richiesta di prezzi a volume







    Descrizione

    1.54" LCD Screen Module | 240x240 RGB SPI Interface:

    1.54-inch IPS TFT module, designed for seamless integration into embedded systems. Featuring a crisp 240x240 resolution and 65K RGB color depth, this display delivers vibrant visuals with ultra-wide 178° viewing angles.

    ✅ IPS panel: True-color clarity from any angle
    ✅ Low-power SPI control: Save MCU resources
    ✅ Plug-and-play: Detailed tutorials & sample codes
    ✅ Industrial-grade durability: Stable under thermal stress
    ✅ Contact us for bulk pricing and customization options!

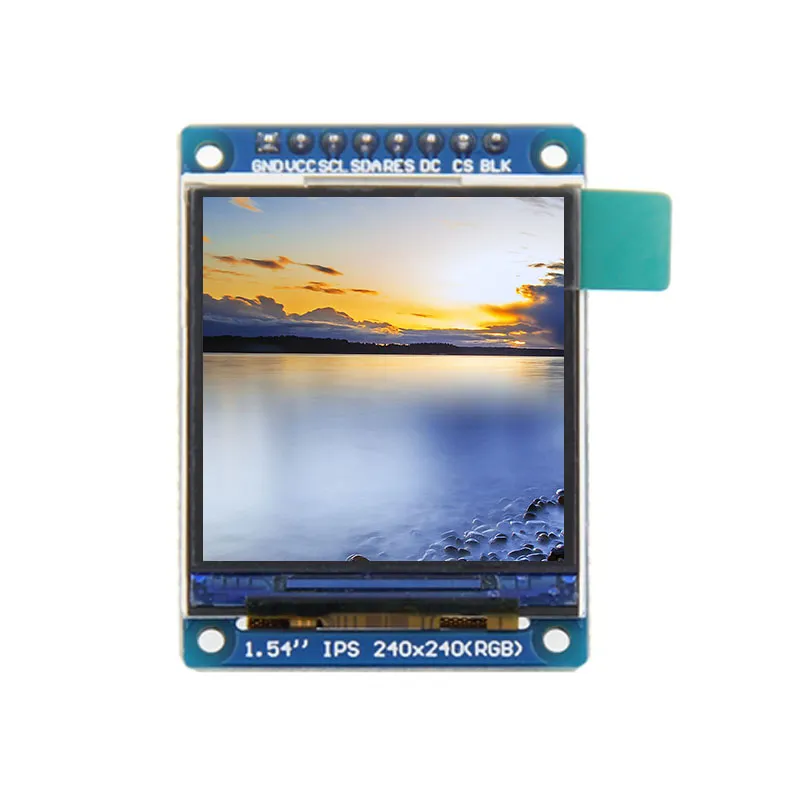

    LCD Screen Module

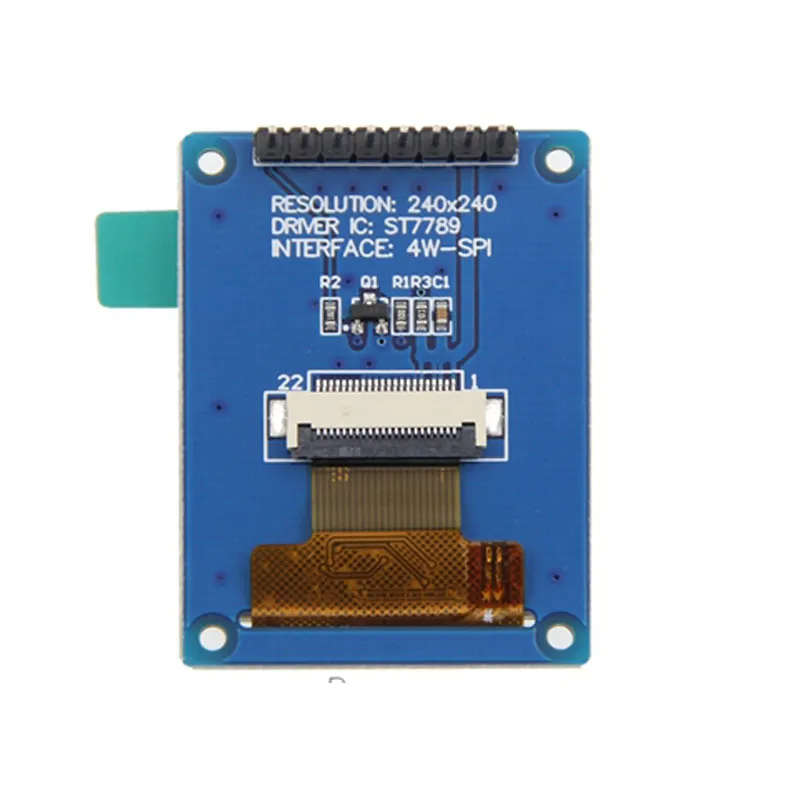

    1.54 inch IPS SPI Module
    Parametri chiave Colore del display RGB 65K color Interfaccia PIN NO. SIMBOLO DESCRIZIONE
    Dimensioni dello schermo 1.54(inch) 1 GND Massa di alimentazione LCD
    Tipo IPS 2 VCC LCD power supply is positive (3.3V)
    Driver IC ST7789 3 SCL Segnale di clock del bus SPI LCD
    Risoluzione 240*240 (Pixel) 4 SDA Segnale dati di scrittura del bus SPI LCD
    Interfaccia del modulo Interfaccia SPI a 4 fili 5 RES LCD reset control signal(Low level reset)

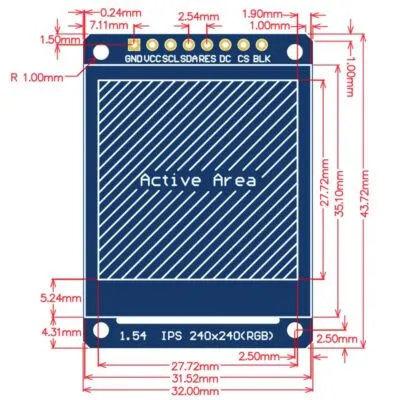

    Area attiva (area AA) 27.72x27.72 (mm) 6 DC LCD register / data selection control signal
    Dimensioni del modulo PCB 32.00x43.72 (mm) (Low level: register, high level: data)
    Temperatura di esercizio -10℃~60℃ 7 CS LCD chip select control signal (low level enable)
    Temperatura di stoccaggio -20℃~70℃ 8 BLK LCD backlight control signal (high level lighting,
    Tensione di alimentazione VCC 5V/3,3V if you do not need control, please connect 3.3V)
    product picture SPI display

    Scaricare

    1.54-Inch 240 × 240 SPI LCD Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 240 × 240 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
