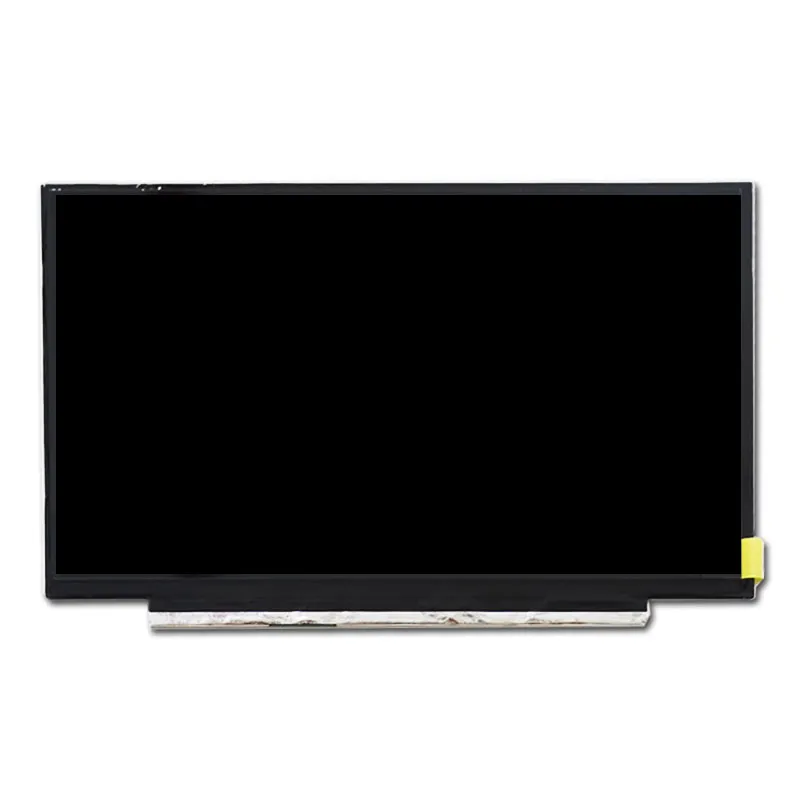

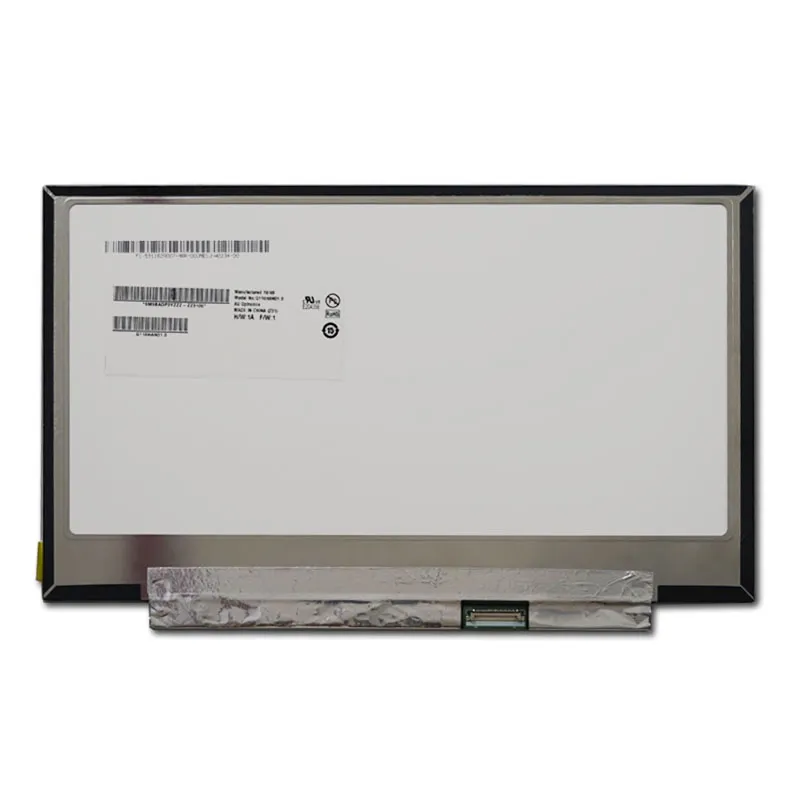

G116HAN01.0 AUO 11.6 inch IPS LCD Panel 1920*1080

COD: DS50019
Dimensioni:

Numero di modello

G116HAN01.0

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

300

Temperatura di esercizio:

-0℃~50℃

Supporto per touchscreen:

Tipo di display:

Resources:

G116HAN01.0 from Brand AUO, Resolution 1920*1080, Operating Temperature from -0~50℃, EDP 1.2(2 lane) Interface, Stable supply, Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    G116HAN01.0 General Description

    The AUO Display G116HAN01.0 composed of a TFT-LCD panel, a driver circuit and power supply circuit, and a LED backlight system. The screen format is intended to support XGA (1920(H) x 1080(V)) screen and 16.7M colors (RGB 8-bits data driver) with LED backlight driving. All input signals are EDP interface, which is well suited for a display unit of notebook style personal computer industial machine.

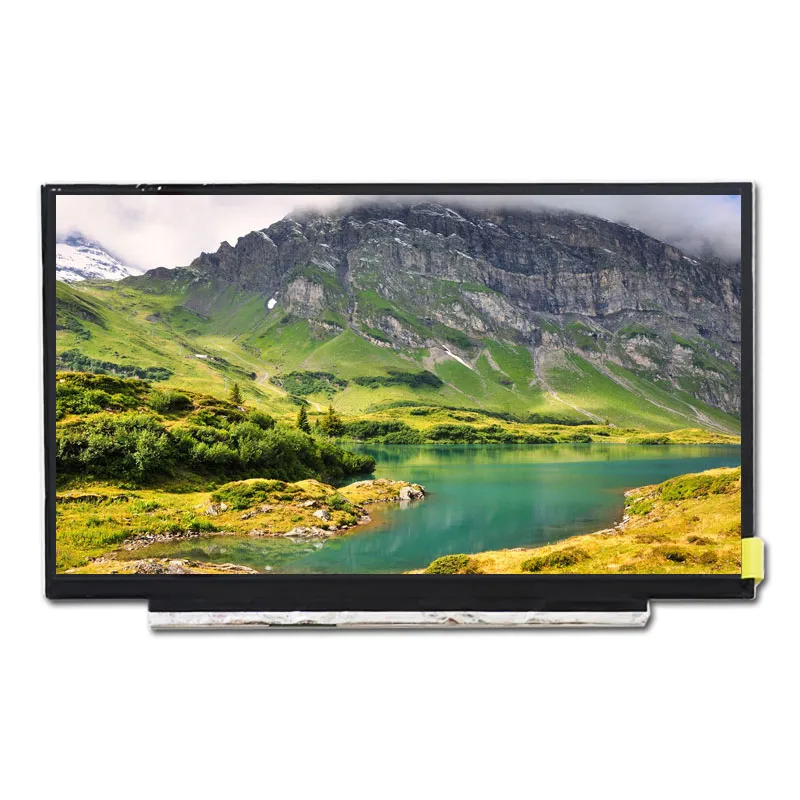

    G116HAN01.0 IPS LCD Panel Characteristics

    The 11.6 inch AUO IPS LCD Panel features an active area of 256.32 mm (H) x 144.18 mm (V) and a resolution of 1920 x 1080 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.1335 mm. Utilizing AHVA (Advanced Hyper-Viewing Angle) technology in a normally black display mode, it operates at a nominal input voltage of 3.3V with a typical power consumption of 3.2W under an all-white pattern. The module has a maximum weight of 200 grams and physical dimensions of 268 mm (H) x 158 mm (V) x 3.0 mm (D). It features a 2-channel EDP electrical interface and an anti-glare surface treatment with a hardness rating of 3H, supporting 16.7 million colors (8-bit) . Designed for operation and storage within a temperature range of -0°C to +60°C, the module is suitable for diverse applications needing high-quality display performance.

    11.6" TFT-LCD Product Specifications

    Numero di modello G116HAN01.0
    Dimensione 11.6
    Risoluzione 1920*1080
    Dimensione del contorno 268*168.5*3
    Area attiva 256.32*144.18
    Luminosità (cd/m²) 300
    Interfaccia eDP
    Visualizza la direzione ALL
    Temperatura di esercizio -0~50
    Temperatura di stoccaggio -20~60
    Durata del LED 15000
    Supporto per touchscreen Senza
    Rapporto di contrasto 800:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    11.6" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G116HAN01.0 11.6-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G116HAN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 11.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing eDP cable and controller with the AUO G116HAN01.0?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G116HAN01.0?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G116HAN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G116HAN01.0

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    300

    Temperatura di esercizio:

    -0℃~50℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
