15.6 inch 10 Point Capacitive Touch Panels with USB Interface, mxT1664T3 IC, 3mm G+G Glass

COD: DS40047
Dimensioni:

Interfaccia:

Thickness

3 mm

Structure

G+G

Touch IC

microchip

abc

Capacitive Touch Panels, G+G structure, Unlock Collaboration: 10-User Multi-Touch, Sunlight-Readable, CE/FCC Certified, Idea for Industrial control systems

Richiesta di prezzi a volume







    Descrizione

    15.6 inch 10 Point Capacitive Touch Panels with USB Interface:



    15.6-inch capacitive touch panel, engineered for seamless interactivity and industrial reliability. Designed to meet demanding commercial and industrial requirements, this panel combines cutting-edge technology with robust construction for superior user experiences.

    Advanced Features:
    ✓ Enables smooth, responsive multi-user interaction for collaborative workflows or advanced applications
    ✓ Features a 3mm tempered glass cover lens for enhanced scratch resistance, impact protection, and optical clarity. Ideal for high-traffic public or industrial settings.
    ✓ Rated for 50 million+ touch cycles and operates reliably in temperatures from -20°C to 70°C
    ✓ Custom firmware and mounting solutions available upon request



    15.6 inch 10 Point Capacitive Touch Panels with USB Interface
    Construction Cover Glass Thickness: 2.8 mm±0.05mm
    OCR Thickness: 0.2mm ± 0.05mm
    ITO Glass Double side ITO glass: Thickness: 0.7mm ± 0.05mm

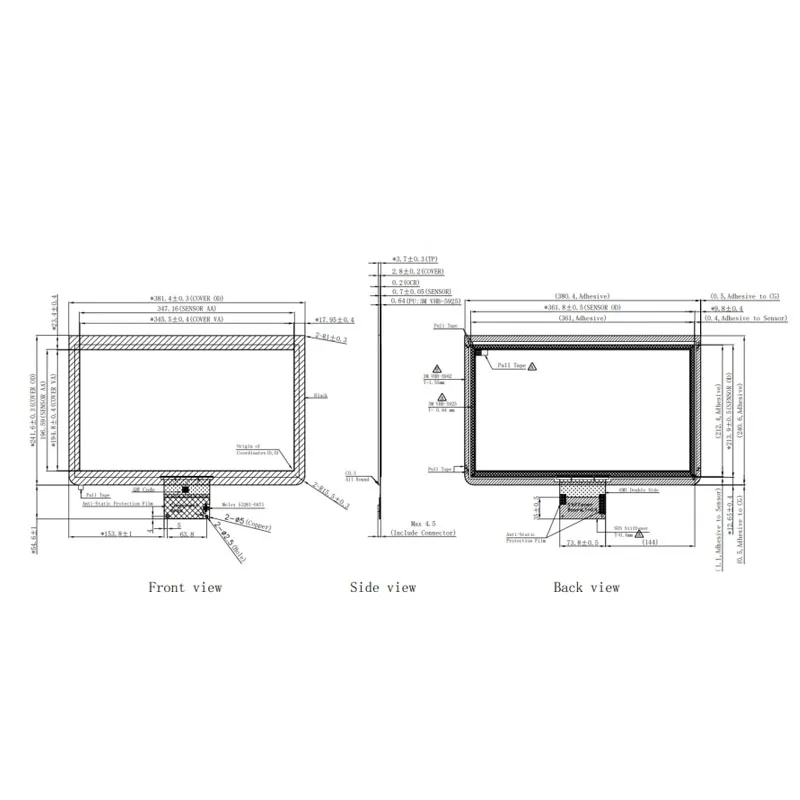

    Machanical Characteristics Touch size 15.6 inch
    Outer Dimension 381.4*241.6
    View Area 345.50*194.80
    Sensor Area 361.80*213.90
    Cover Thickness 2.8
    Number of Touch 10
    Interfaccia USB
    Controller Microchip

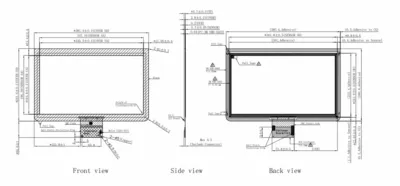

    10-Point Capacitive Touch Panel

    Scaricare

    15.6-Inch Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 15.6-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed USB interface, verify the port’s role, driver support and power needs on the exact configuration. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
