2.1 inch Circular 480*480 MIPI TFT LCD Screen

COD: DS20007
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

450

Supporto per touchscreen:

Tipo di display:

2.1 inch Roubd TFT LCD Display  480*480 Pixels  Serial MIPI Interface  30 pin FFC ZIF Connection  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

    2.1”  round TFT LCD display Features

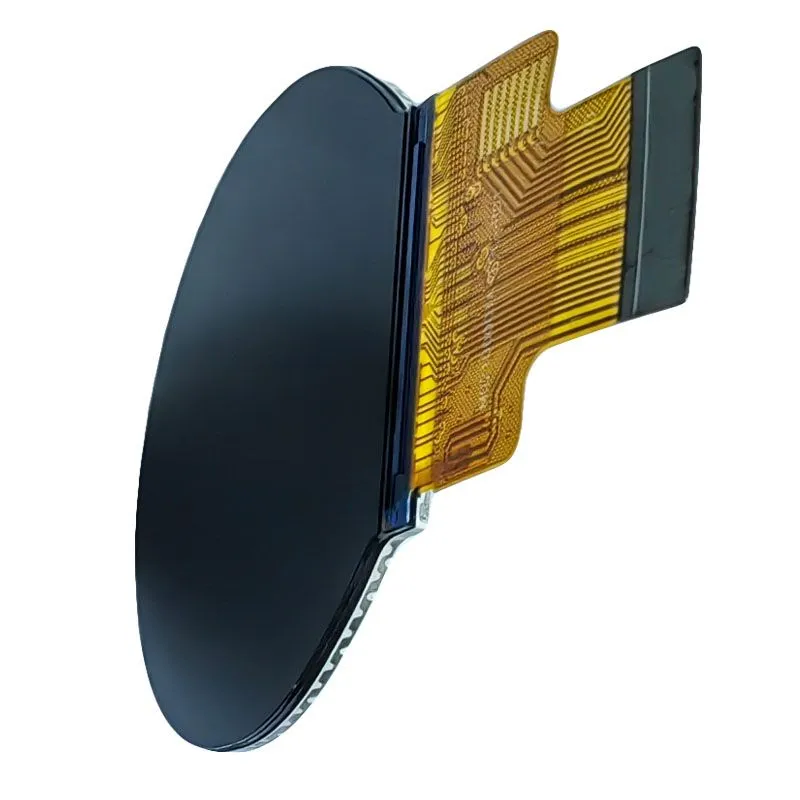

    The 2.1 inch round TFT LCD display module features an active area of 53.28 mm x 53.28 mm, providing ample space for detailed visuals, while its overall dimensions of 56.18 mm x 59.71 mm x 2.22 mm allow for easy integration into various device designs. With an impressive viewing angle of 85° in all directions, it ensures consistent image quality and color accuracy, making it suitable for diverse environments. The display boasts a brightness level of 450 cd/m², ensuring excellent visibility in both indoor and outdoor conditions, alongside a long LED lifetime of 30,000 hours for reliable performance. Additionally, it has a contrast ratio of 1000, enhancing clarity and vibrancy, and operates efficiently within a temperature range of -20°C to 70°C. Utilizing a MIPI interface with a 30-pin connection, this module facilitates seamless integration with modern micro controllers. Ideal for smartwatches, consumer electronics, and industrial displays, it suits applications requiring high visual quality and durability.



    Unique Display Layouts:

    The circular format allows for innovative layout designs that can make better use of the available screen space. For instance, notifications, data metrics, or graphical elements can be arranged in a way that enhances readability and user experience.

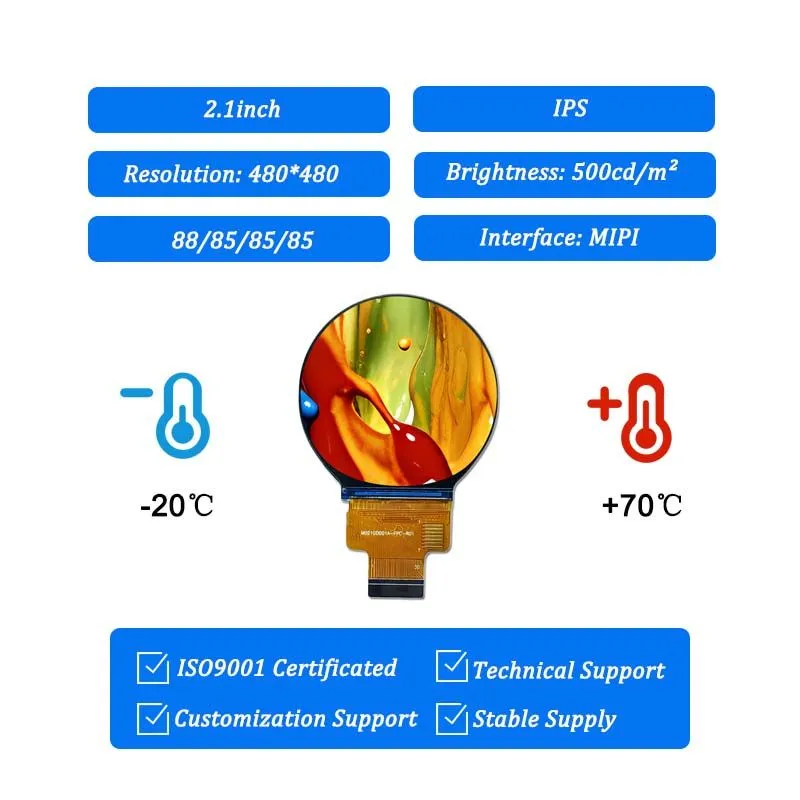

    2.1" round TFT LCD display Product Specifications

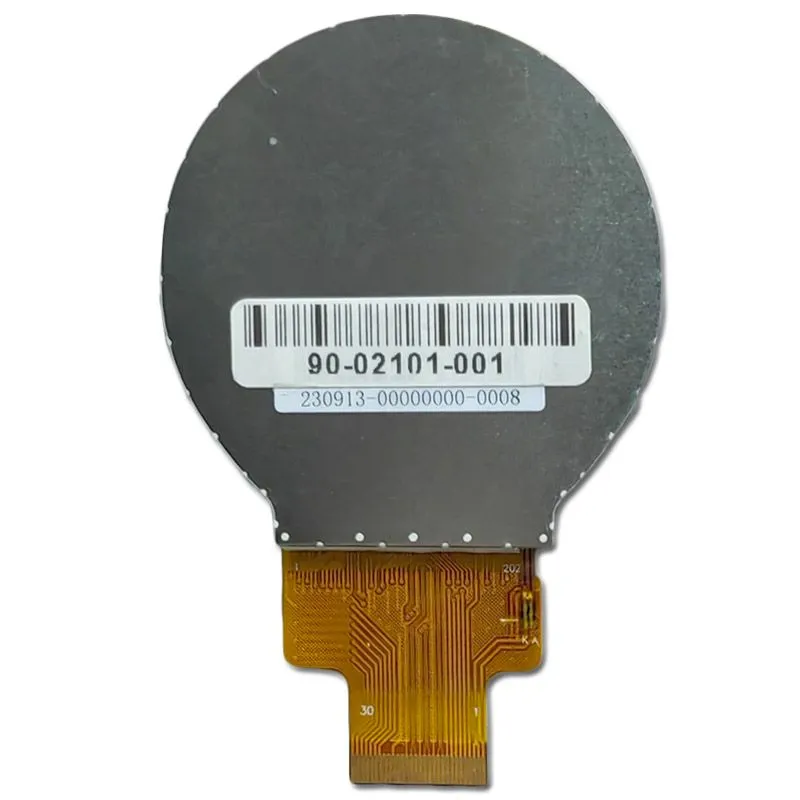

    Numero di modello  90-02101-001
    Dimensione 2.1
    Risoluzione 480*480
    Dimensione del contorno 56.18*59.71*2.22
    Area attiva 53.28*53.28
    Luminosità (cd/m²) 450
    Interfaccia MIPI
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 30000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1000:1
    Alimentazione 3.3 V
    Tipo di display LCD a colori

    2.1" TFT LCD Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Adjust the length, position, and pin out of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    2.1-Inch 480 × 480 Round LCD Display FAQ

    Will the bezel cover any of my dial labels or icons?

    Use the 2.1-inch diagonal to shortlist round displays, then check the exact drawing for fit. Make a mask from the active circle and bezel drawing. Try your dial, long labels and controls with the mask applied on a 480 × 480 canvas before committing to the enclosure.

    How do I check that the driver and artwork align with the visible circle?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check orientation and any address-window offsets in the initialization code, then show a marked test grid to verify the center and edge alignment.

    Should I choose a round display or place a rectangular display behind a round bezel?

    Compare the visible arc, text clipping, module clearance and flex routing for both approaches. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. A mock-up with your longest labels will show how much of the nominal screen you can actually use.

    Can I add custom cover glass, change the flex cable, or add touch?

    Send the visible circle, cover outline and thickness, desired flex exit and touch interface. We can evaluate a cover-only design and a separate touch assembly around the panel.

    Custom Touch Screen Solutions

    What affects the cost and lead time of a custom round display sample?

    Include your cover drawing, host board, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    450

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
