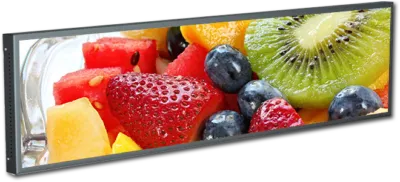

28 inch Stretched Monitor Display Resolution 1920*540 HDMI*2/USB/ATF/Audio/DC IN

COD: DS30004
Dimensioni:

Risoluzione:

Interfaccia:

, , ,

Luminosità (cd/m²):

700

Temperatura di esercizio:

-0℃~50℃

28 inch Stretched Monitor Display, offering resolution 1920*540, Aspect Ratio 32:9,Brightness 700cd/m2, Interface with Audio*1/HDMI IN*2/USB/TF/DC IN

Richiesta di prezzi a volume







    Descrizione

    28 inch Stretched monitor display main features:

    • 178° ultra-wide viewing angle, 1200:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 700cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

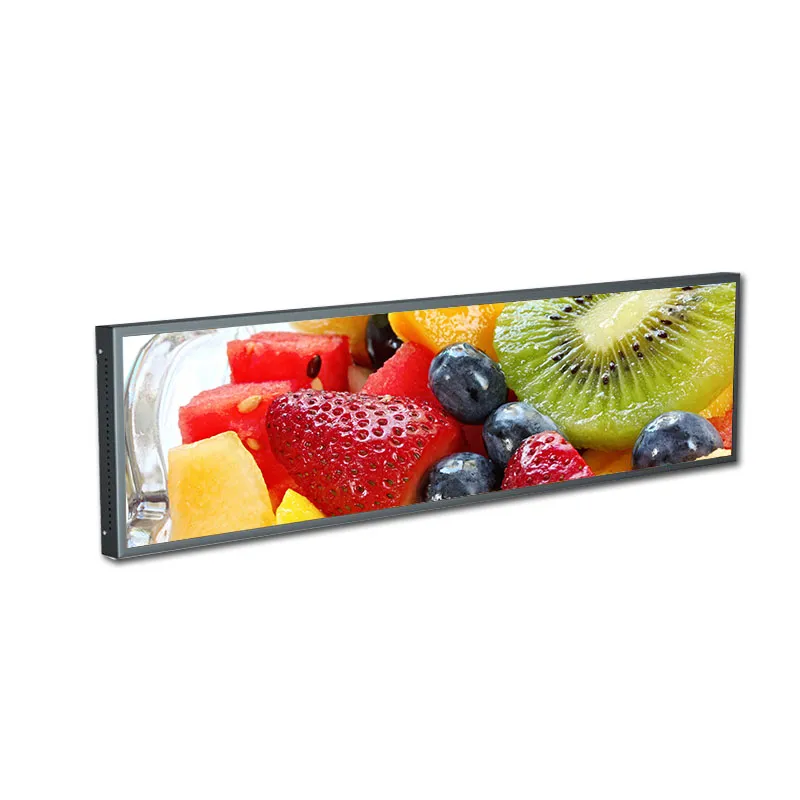

    28 inch Stretched Monitor Display



    28 inch Stretched monitor display Specification

    Display LCD Dimensioni dello schermo 28inch
    Area attiva 698.4*129.86(mm)
    Outline 728.4*159.86*46(mm)
    Screen Type a-Si TFT-LCD
    Pixel Number 1920*358
    Aspect Ratio -
    Luminance 450 cd/m2
    Rapporto di contrasto 1200:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Profondità del colore 1.07B   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.279*0.279(mm)
    Mainboard CPU A40
    Ram -
    Flash -
    O/S -
    Interfaccia USB*2/TF/Audio/RJ45/HDMI OUT/DC IN
    Machine Appearance and Structure Hardware shell
    Colore Black
    Peripheral Speaker
    Power supply AC 110 -240V 50/60Hz
    Power consumption ≦35W
    Temperatura di esercizio -10℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    Installation method Wall hanging
    Peso netto 4Kg
    Corton size -
    Number of boxes -
    Corton weight -

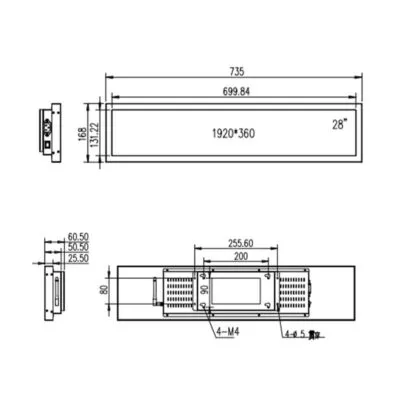

    Drawing and photo 28 inch stretched lcd monitor

    28-Inch Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 28-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Get the native pixel layout first, then try your typical desktop, menu or signage layout at that layout before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , ,

    Luminosità (cd/m²):

    700

    Temperatura di esercizio:

    -0℃~50℃

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
