24 inch Bar LCD Display Monitor Resolution 1920*360 High Contrast Ratio 3000:1

COD: DS30002
Dimensioni:

Risoluzione:

Interfaccia:

, , ,

Luminosità (cd/m²):

500

24 inch Bar LCD Display Monitor, offering resolution 1920*360, Aspect Ratio 32:9, Brightness 500cd/m2, Interface with Audio*1/HDMI IN*2/USB/TF/DC IN

Richiesta di prezzi a volume







    Descrizione

    24 inch Bar LCD display monitor main features:

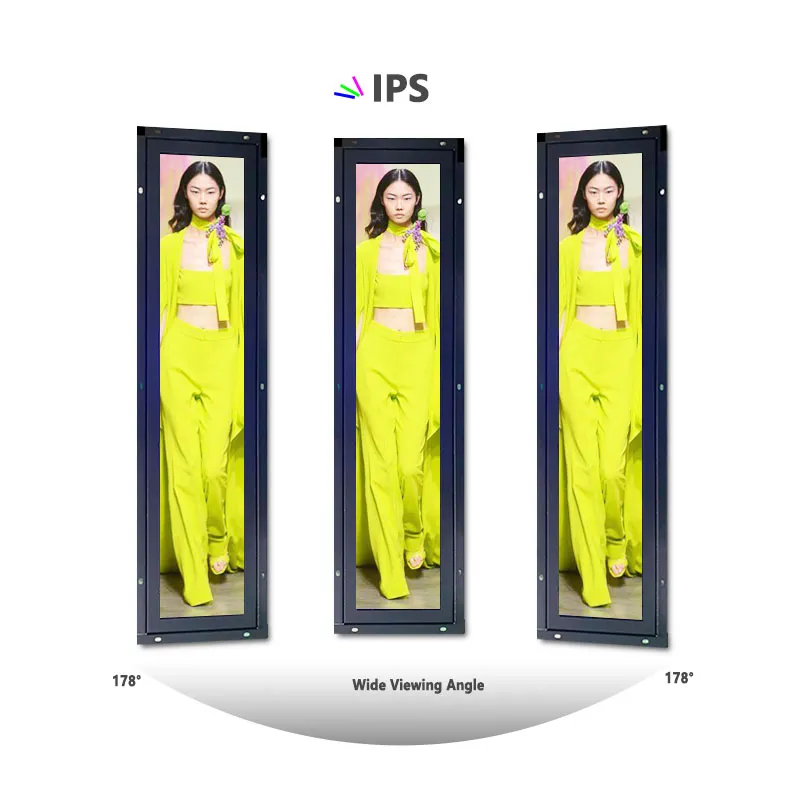

    • 178° ultra-wide viewing angle, 3000:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 300~500cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

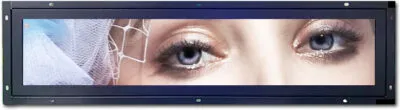

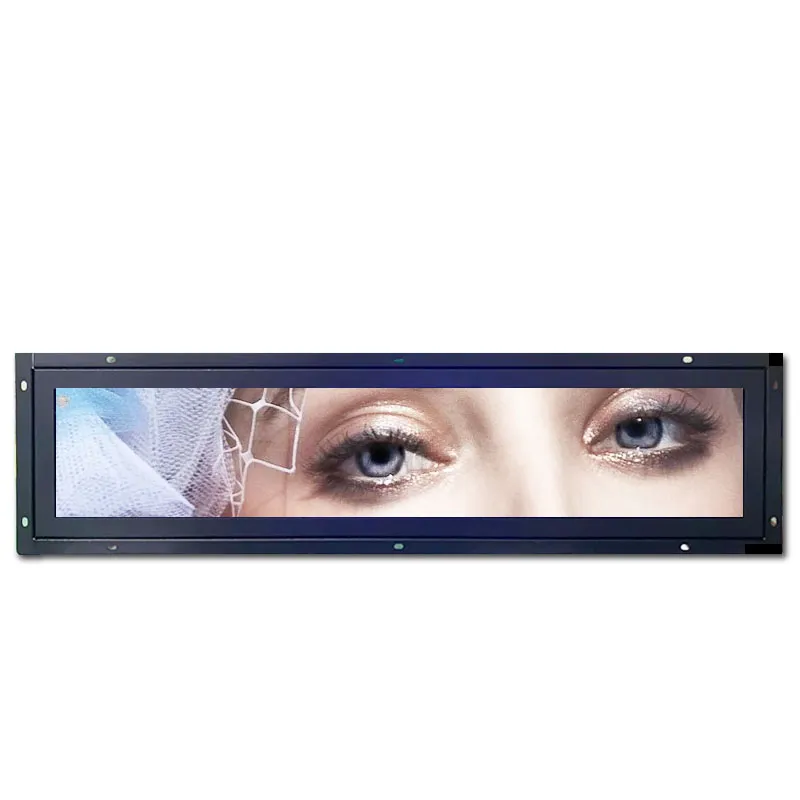

    24 inch Bar LCD Display Monitor



    24 inch Bar LCD display monitor Specification
    Display LCD Dimensioni dello schermo 24 inch
    Area attiva 598*112(mm)

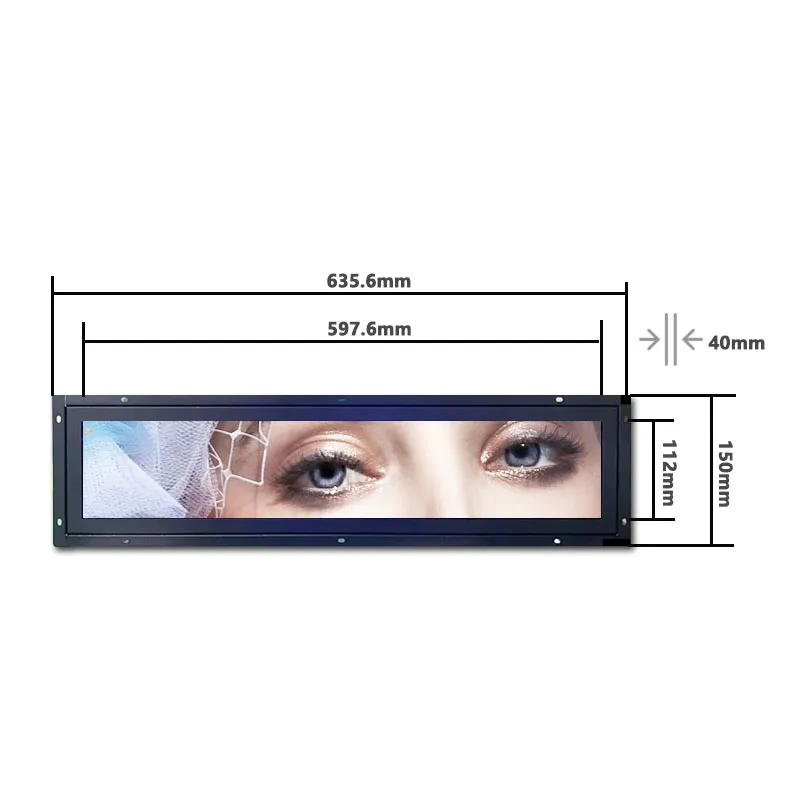

    Outline 626*140.6*38(mm)
    Screen Type a-Si TFT-LCD
    Pixel Number 1920*360
    Aspect Ratio 16:3
    Luminance 500 cd/m2
    Rapporto di contrasto 3000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Profondità del colore 16.7M   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.3114×0.3114 mm
    Mainboard CPU V53
    Ram -
    Flash -
    O/S -
    Interfaccia Audio/HDMI IN*2/USB/TF/DC IN
    Machine Appearance and Structure Sheet Metal
    Colore Black
    Peripheral WIFI/Speaker*2
    Power supply AC100~230V
    Power consumption ≦20W
    Temperatura di esercizio 0℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    Installation method Wall hanging
    Peso netto 5Kg
    Corton size
    Number of boxes 2PCS/Corton
    Corton weight 11Kg

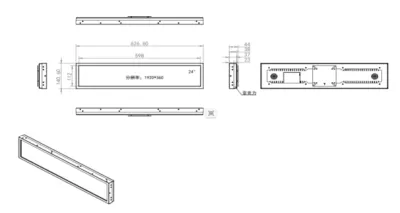

    Drawing and photo 24 inch Bar LCD display monitor drawings

    24-Inch 1920 × 360 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 24-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 360 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , ,

    Luminosità (cd/m²):

    500
