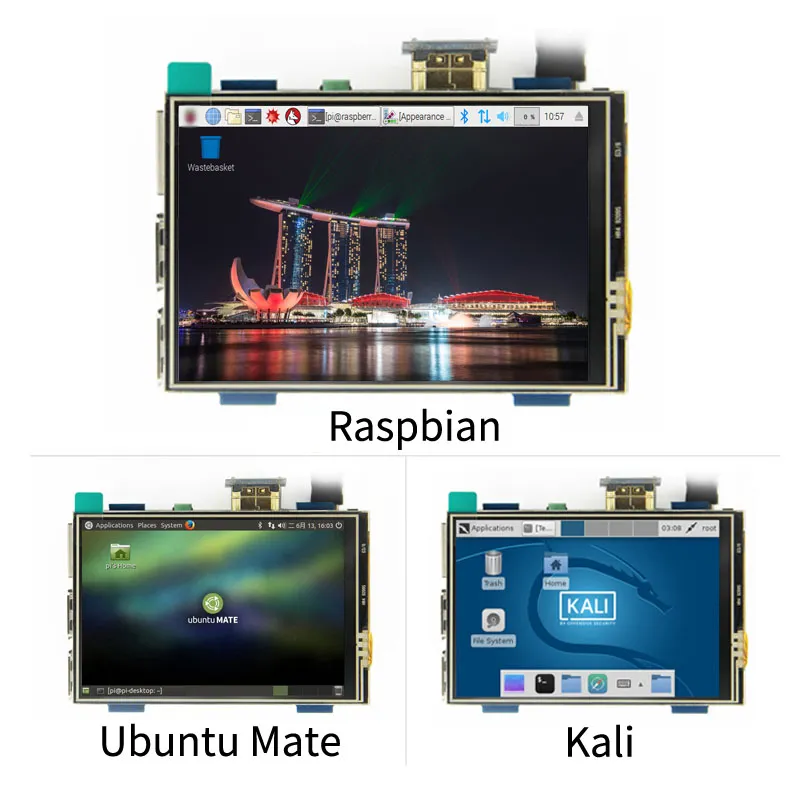

3.5 inch TFT LCD Touch Screen Display for Raspberry PI

480x320 3.5 tft touchscreen for raspberry pi

3.5 inch TFT LCD Touch Screen Display for Raspberry PI with HDMI

COD: DS20194

Dimensioni:	3.5 inch
Risoluzione:	480*320
Interfaccia:	HDMI
Supporto al consiglio di amministrazione	Raspberry Pi
Supporto per touchscreen:	capacitivo

3.5 inch TFT LCD Touch Screen Display for Raspberry PI, with HDMI interface , 480*320 high resolution, resistive touch, Compatible with Raspberry Pi ZeroW，A, A+, B, B+, 2B, 3B, 3B+,4B and so on

$99.00

Descrizione

3.5 inch TFT LCD Touch Screen Display for Raspberry PI main features:

3.5 inch standard LCD display, supports HDMI input, refresh rate above 60FPS
Physical resolution 480×320, configurable software resolution up to 1920×1080
Can be used as a Raspberry Pi display with touch control function (touch driver needs to be installed)
Can be used as a computer monitor, TV box, PSP and other standard HDMI output devices (no touch function)

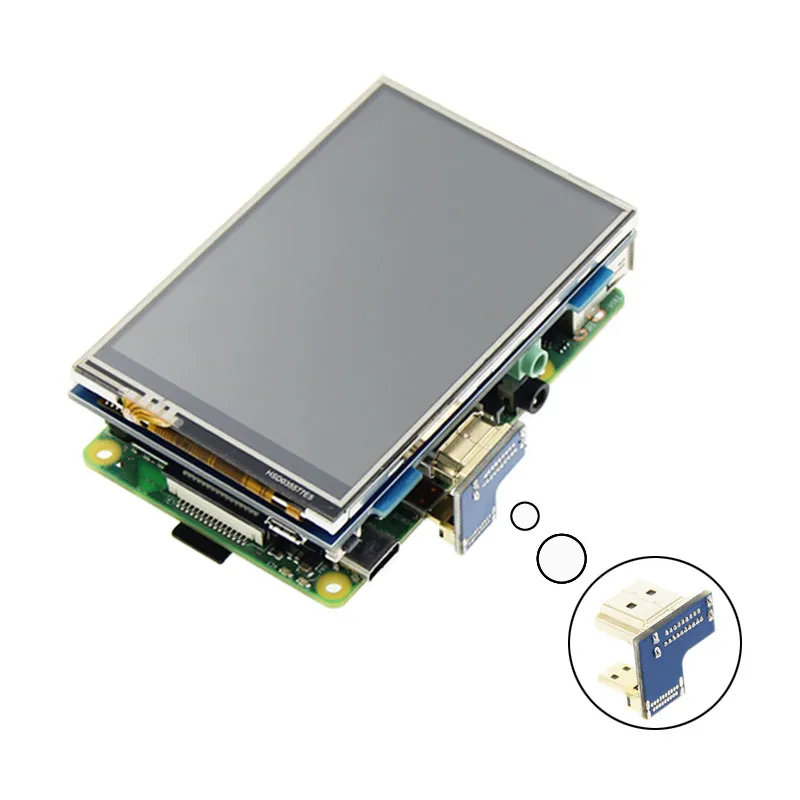

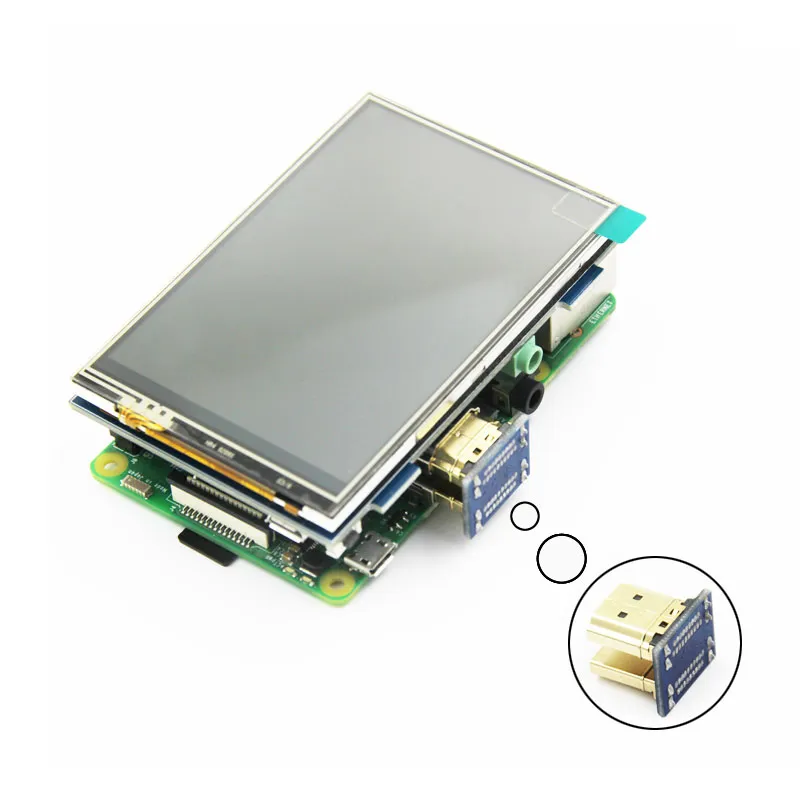

Compatible and can be directly inserted into all versions of Raspberry Pi motherboards (Raspberry Pi 1st generation B and Zero require additional HDMI cable)
Support HDMI audio output, backlight brightness adjustable

Parametri chiave	Dimensione	3.5(inch)
	SKU	DS20194
	Physical resolution	480×320(dots)
	Software adjustable resolution	480×320~1920×1080(dots)
	Touch	Resistive touch screen
	USB input power	5V 1A
	Power consumption	0.18A*5V 510mW (backlight off)
	Dimensions	85.5*60.6 (mm)
	Packaging size	14313451 (mm)
	Weight (including packaging)	142(g)

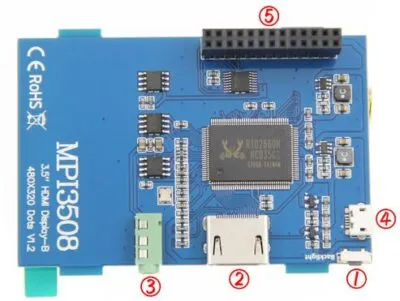

Hardware Description
	①Backlight button	Backlight brightness adjustment button, short press backlight changes 10%, long press 3 seconds to turn off backlight
	②HDMI interface	HDMI signal input interface
	③Headphone interface	HDMI audio output interface
	④USB power supply interface	Provides power when used as a normal display (5V 1A)
	⑤Raspberry Pi 26PIN female socket	Get power and return touch from here when used as a Raspberry Pi display
