4.97" AMOLED Screen Display HD+ 720x1280, MIPI, 400nits, -20°C~60°C

COD: DS10011
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~60℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

Resources:

4.97 inch AMOLED screen Display with HD+ 720x128 resolution, MIPI interface, 400nits brightness, 20,000:1 contrast, full viewing angle, and wide temperature range (-20°C~60°C). Perfect for smart devices and industrial use.

Richiesta di prezzi a volume







    Descrizione

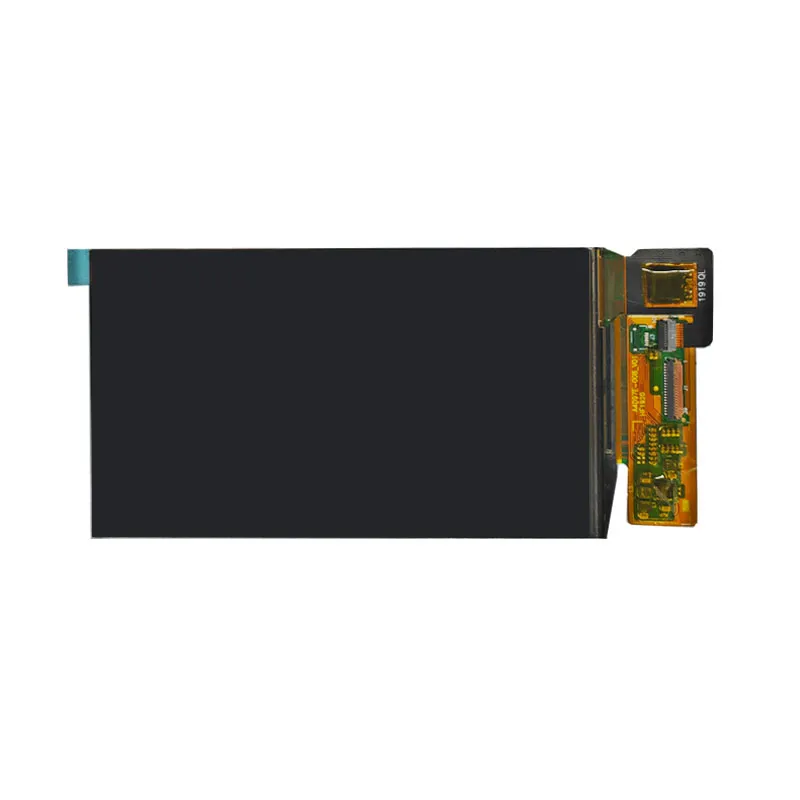

    4.97" Amoled Screen Display

    4.97-inch AMOLED Screen Display, designed to deliver sharp visuals and robust performance. Boasting HD+ resolution (720x1280) and 20,000:1 contrast ratio, this display offers vivid colors and deep blacks, enhanced by 400nits brightness for readability in diverse lighting conditions.



    4.97" Amoled Screen Display Key Features

    • MIPI Interface: High-speed data transfer for smooth integration with modern hardware.
    • Extended Temperature Range: Stable operation from -20°C to 60°C, suitable for industrial, medical, and consumer electronics.
    • Full Viewing Angle: Consistent image quality from any angle, ideal for interactive displays.
    • Energy Efficiency: AMOLED technology minimizes power consumption without compromising brightness or color accuracy.
      Applications:
      Optimized for wearables, portable IoT devices, handheld scanners, and smart home panels requiring compact size and reliable performance.
    1. Rugged design for harsh environments
    2. Factory-tested durability and longevity
    3. Support custom configurations (contact for OEM/ODM solutions)

    4.97" Amoled Display Product Specifications

    Dimensione LCD (pollici) 4.97(Diagonal)
    Numero di pixel 720*1280
    Pixel Pitch(um) 61.884*110.016
    Dimensioni di massima (mm) 64.12*116.72*0.84
    Area attiva (mm) 38.207 ×38.207
    Tipo di display AMOLED
    Interfaccia MI PI
    Visualizza la direzione ALL
    Power Supply(v) 3.3
    Luminance(cd/m²) 350
    Drive IC RM67295
    - -
    - -
    - -
    - -

    4.97" Amoled Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    4.97-Inch MIPI AMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.97-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed AMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~60℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
