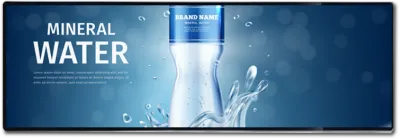

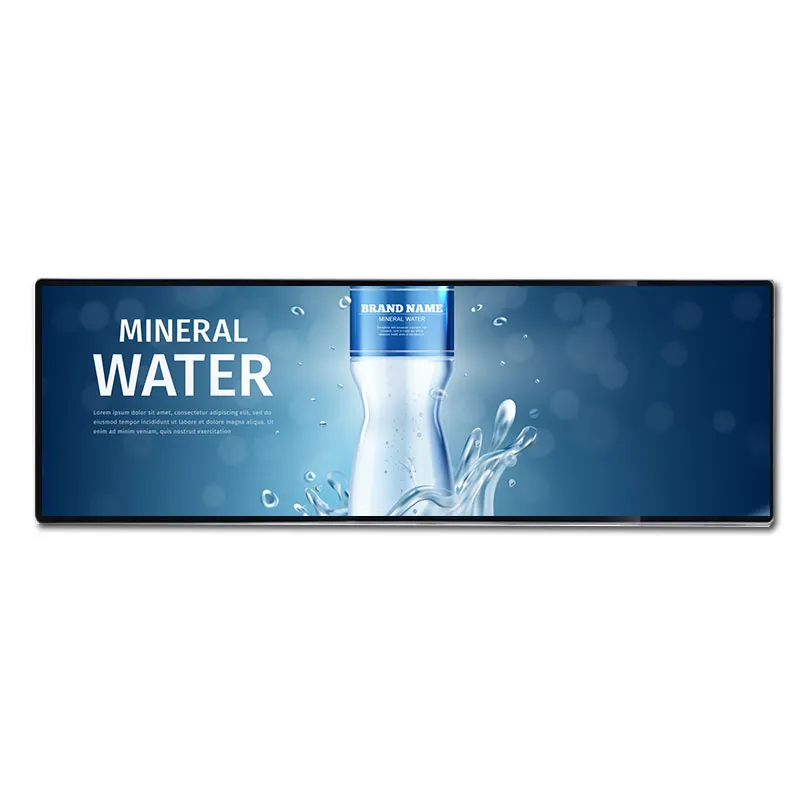

47.6 inch TFT LCD Monitor 1920*360 Audio/RJ45/HDMI/USB*2/TF/DC IN

COD: DS30017
Dimensioni:

Risoluzione:

Interfaccia:

, , , ,

Luminosità (cd/m²):

700

Temperatura di esercizio:

-0℃~50℃

47.6 inch TFT LCD Monitor, offering resolution 1920*360, Aspect Ratio 3:1,Brightness 700cd/m2, Interface with Audio/RJ45/HDMI/USB*2/TF/DC IN, Optional Android motherboard

Richiesta di prezzi a volume







    Descrizione

    47.6 inch TFT LCD monitor main features:

    • 178° ultra-wide viewing angle, 1200:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically

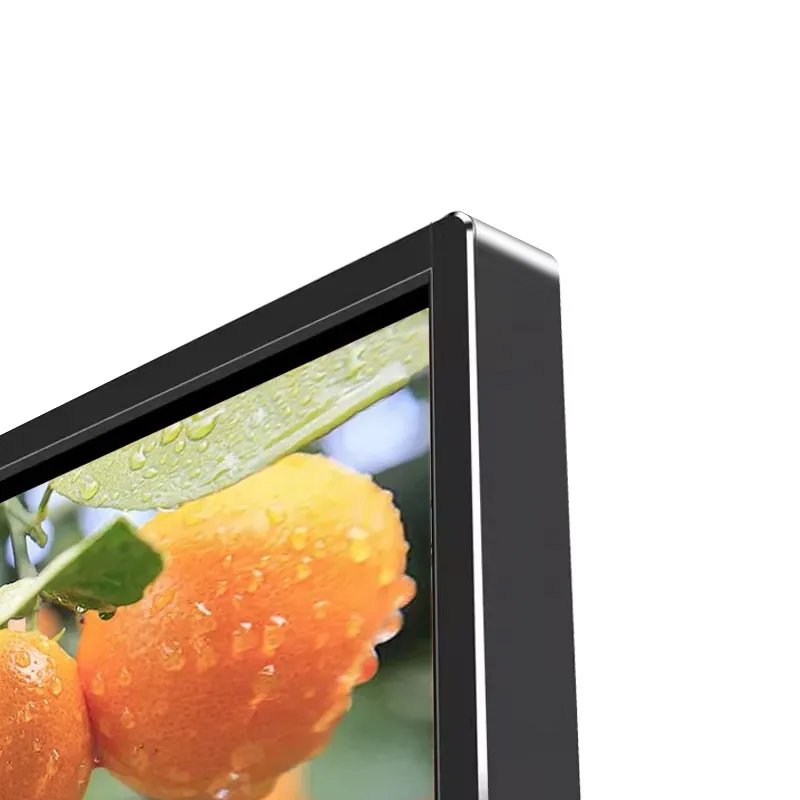

    • Sheet metal frame, protects screen from bumps
    • Brightness 700cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable
    47.6 inch TFT LCD Monitor



    47.6 inch TFT LCD monitor Specification

    Display LCD Dimensioni dello schermo 47.6 inch
    Area attiva 1189.44*223.02(mm)
    Outline 1217.28*250.5*44(mm)
    Screen Type a-Si TFT-LCD
    Pixel Number 1920*360
    Aspect Ratio 3:1
    Luminance 700 cd/m2
    Rapporto di contrasto 1200:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Profondità del colore 16.7M   68% NTSC
    Response 9 (Typ.)(G to G) ms
    Pixel Pitch 0.6195×0.6195 mm
    Mainboard CPU A40
    Ram 1G
    Flash 8G
    O/S Andriod 7.1
    Interfaccia Audio/RJ45/HDMI/USB*2/TF/DC IN
    Machine Appearance and Structure Sheet Metal
    Colore Black
    Peripheral WIFI/Speaker*2
    Power supply AC100~230V
    Power consumption ≦70W
    Temperatura di esercizio 0℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    Installation method Wall hanging
    Peso netto 16Kg
    Corton size
    Number of boxes 2PCS/Corton
    Corton weight 35Kg

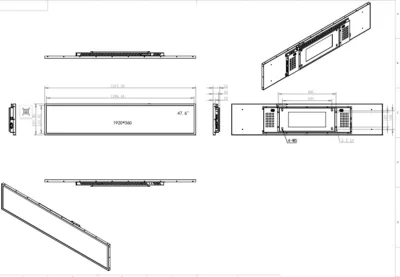

    Drawing and photo 47.6 inch TFT LCD monitor

    47.6-Inch 1920 × 360 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 47.6-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 360 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 700 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , , ,

    Luminosità (cd/m²):

    700

    Temperatura di esercizio:

    -0℃~50℃

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
