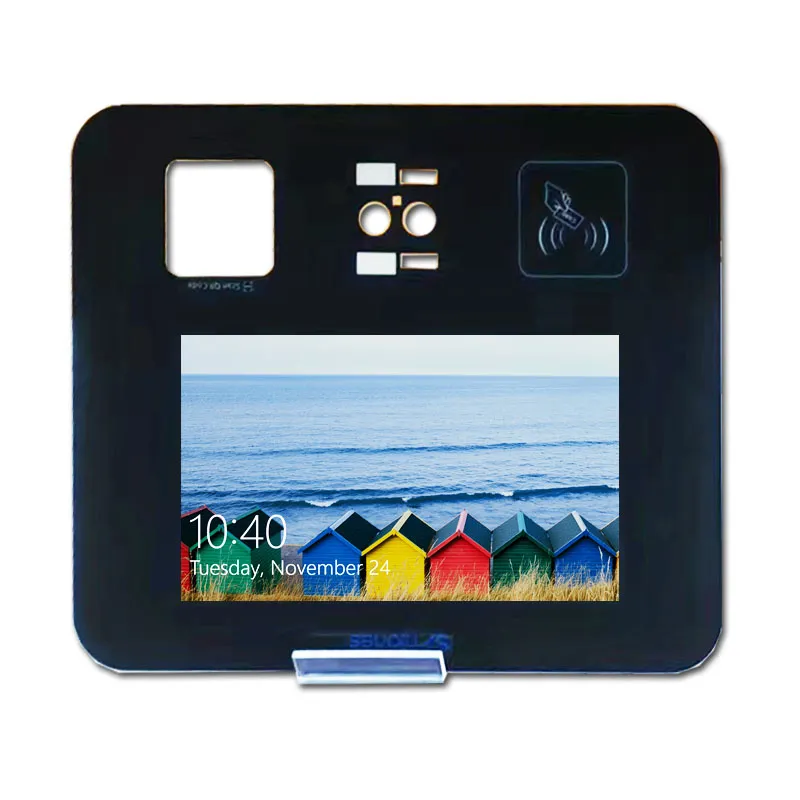

7 inch 1024*600 LVDS TFT Touch Panel

COD: DS20114
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

7 inch TFT Touch Panel  1024*600 Pixels  Serial LVDS Interface  Cover Lens+ITO Glass+FPC  OCA Bonding  Customized Capacitive Touch Displa

Richiesta di prezzi a volume







    Descrizione

    7" TFT Touch Panel Features

    The TFT Touch Panel provides a wide viewing angle of 80° in all directions, ensuring excellent visibility, and utilizes an LVDS 40 interface for reliable data transfer. With a brightness of 500 cd/m², it remains visible in bright environments. This TFT screen is effectively in temperatures ranging from -20°C to 70°C, with safe storage capabilities from -30°C to 80°C, ensuring reliability across diverse applications

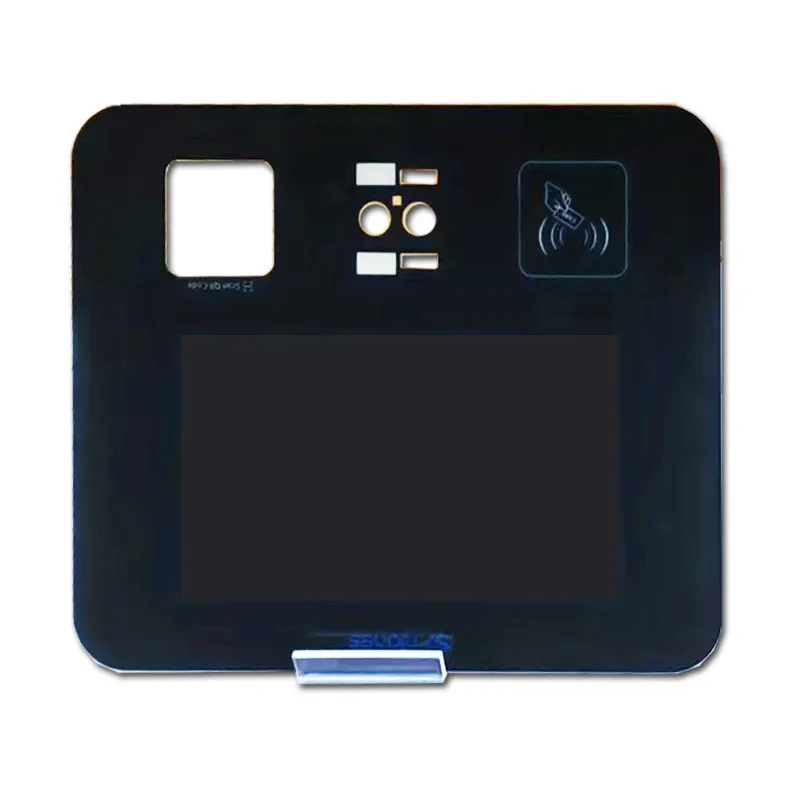

    7 inch TFT Panel with Capacitive Touch Screen

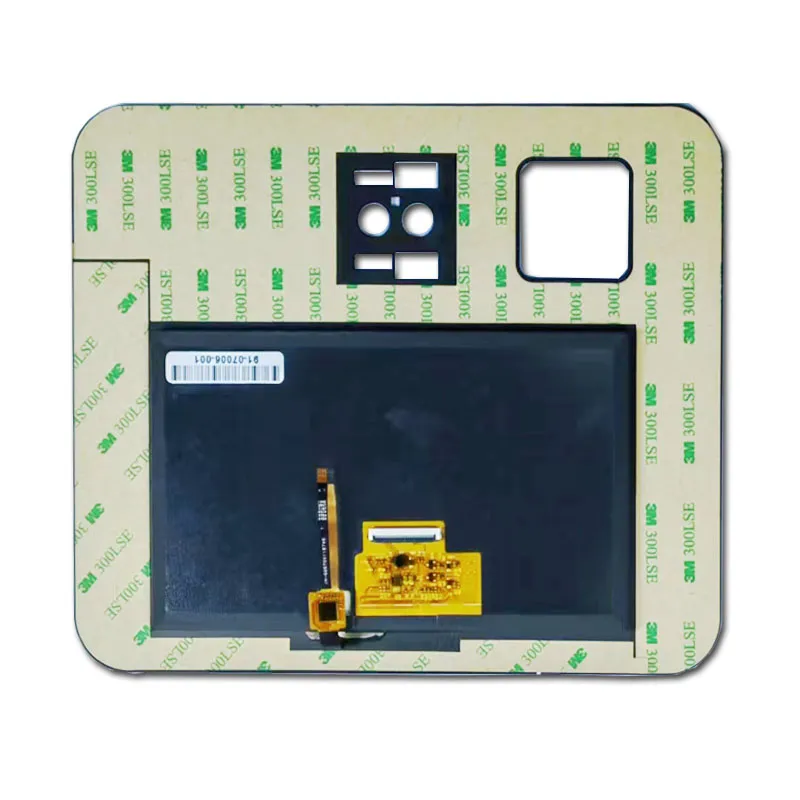

    This 7 inch TFT Touch Panel features a sophisticated capacitive touch technology that incorporates a cover lens made of durable glass and Indium Tin Oxide (ITO) glass for electrical conductivity, bonded with Optically Clear Adhesive (OCA) for optimal clarity and sensitivity. Its Glass-on-Glass (G+G) structure enhances durability and scratch resistance while improving optical performance by minimizing reflections. The touch panel is driven by the GT911 touch controller, renowned for its high accuracy and responsiveness, ensuring smooth and instantaneous user interactions with minimal latency.

    7.0" TFT-LCD Product Specifications

    Numero di modello  91-07006-001
    Dimensione 7.0
    Risoluzione 1024*600
    Dimensione del contorno 224*184*4.65
    Area attiva 154.21*85.92
    Luminosità (cd/m²) 500
    Interfaccia LVDS
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen capacitivo
    Rapporto di contrasto 800:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    7.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    7-Inch 1024 × 600 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 7-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1024 × 600 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
