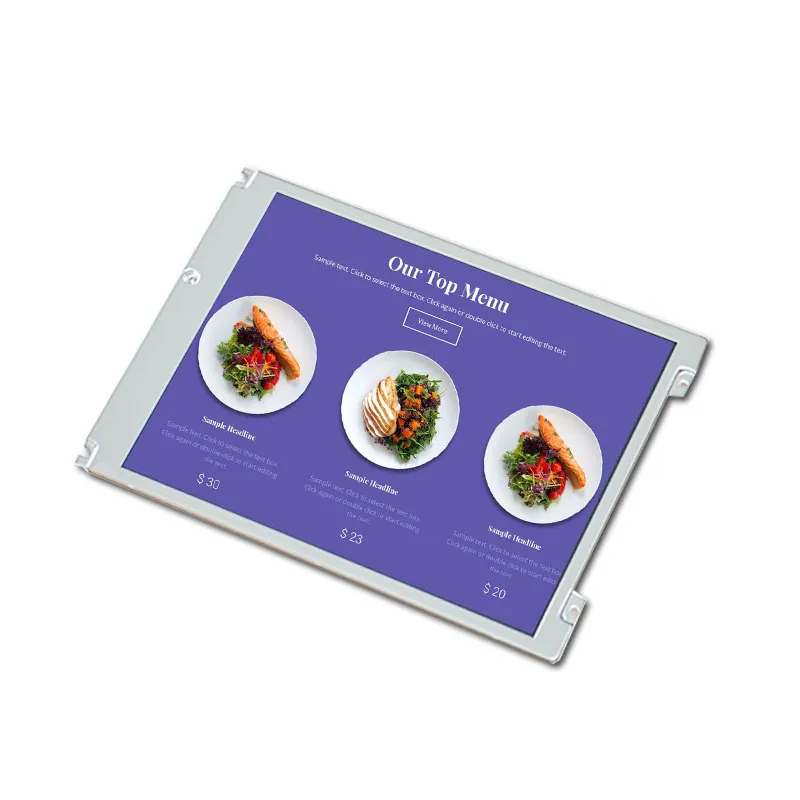

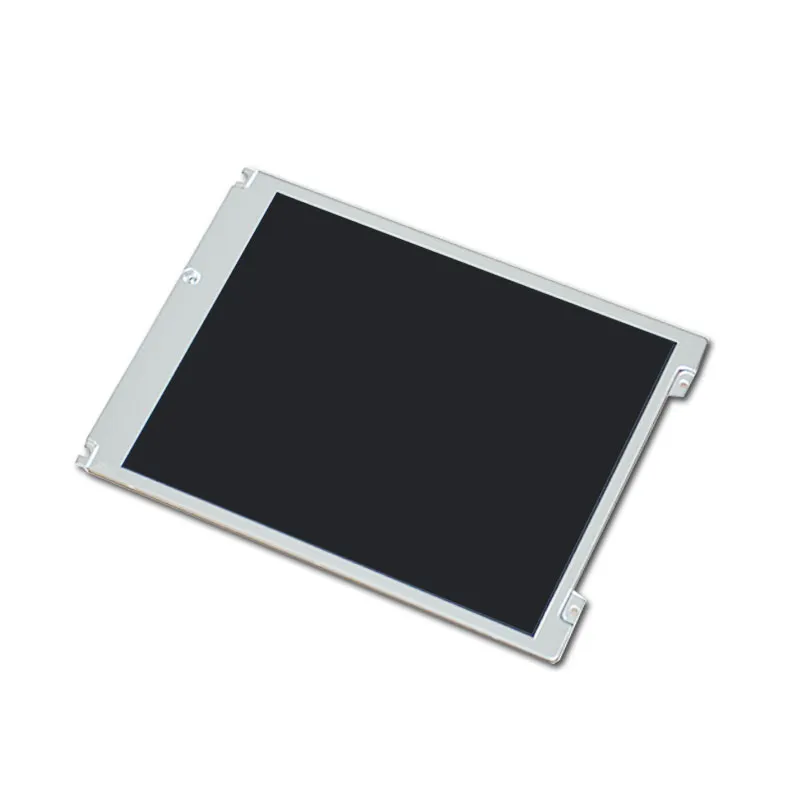

8” Au optronics Panel A080XTN01.5 1024x768, 700:1 Contrast, -10~60°C

COD: DS50128
Dimensioni:

Numero di modello

A080XTN01.5

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~60℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

A080XTN01.5 8-inch 1024x768 TN LCD with 700:1 contrast, 300nits. 40-pin LVDS interface, -10~60°C operation, 15K-hour lifespan. Bulk OEM pricing available.

Richiesta di prezzi a volume







    Descrizione

    A080XTN01.5 General Desription

    The AUO A080XTN01.5 8-inch TN LCD module is engineered for cost-sensitive industrial and commercial applications requiring sharp grayscale performance and extended temperature resilience. With 1024x768 resolution and 700:1 contrast ratio, it delivers precise imaging for control panels and diagnostic equipment.
    Key Procurement Benefits:
    700:1 High Contrast: Enhances text/icon clarity in medical monitors and logistics terminals
    40-pin LVDS Compatibility: Direct integration with industrial PCBs, eliminating adapter costs
    Wide Thermal Tolerance: Stable operation from -10°C to 60°C for outdoor kiosks and factory automation
    Proven Reliability: 15,000-hour backlight lifespan (tested at 300nits, 25°C ambient)



    A080XTN01.5 Technical

    ・300nits brightness with anti-glare surface (Haze 20%)
    ・6 o'clock viewing direction for vertical-mount applications
    ・60Hz refresh rate, 3.3V power input
    ・RoHS/CE compliant, supports PCAP touch integration
    Ideal for batch procurement in HVAC control systems, portable test instruments, and retail self-checkout solutions. Volume orders qualify for tiered pricing and 10-week lead time commitments. Customization options include EMI shielding, bezel modifications, and bonded touchscreens.

    A080XTN01.5 Product Specifications

    Diagonal Size 8.0"(Diagonal)
    Pixel Number 1024×768 Pixels
    Luminance 300
    Module Size 183(W)×141(H)×3.9(D)
    Area attiva 162.048(W)×121.536(H)
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/65/65
    Interfaccia LVDS
    Rapporto di contrasto 700
    Temperatura di esercizio -10~60℃
    Temperatura di stoccaggio -20~70℃
    Durata del LED 15K
    Supporto per touchscreen Senza
    Alimentazione 3.3v
    Tipo di display Color TFT

    AUO LCD Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO A080XTN01.5 8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO A080XTN01.5?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO A080XTN01.5?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO A080XTN01.5?

    Use 1024 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO A080XTN01.5 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    A080XTN01.5

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~60℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
