8 inch 800*1280 MIPI IPS LCD Panels

COD: DS20072
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

8 inch tft lcd screen  800*1280 Pixels  Serial MIPI Interface Customized touch screen  Outdoor Industrial panels

Richiesta di prezzi a volume







    Descrizione

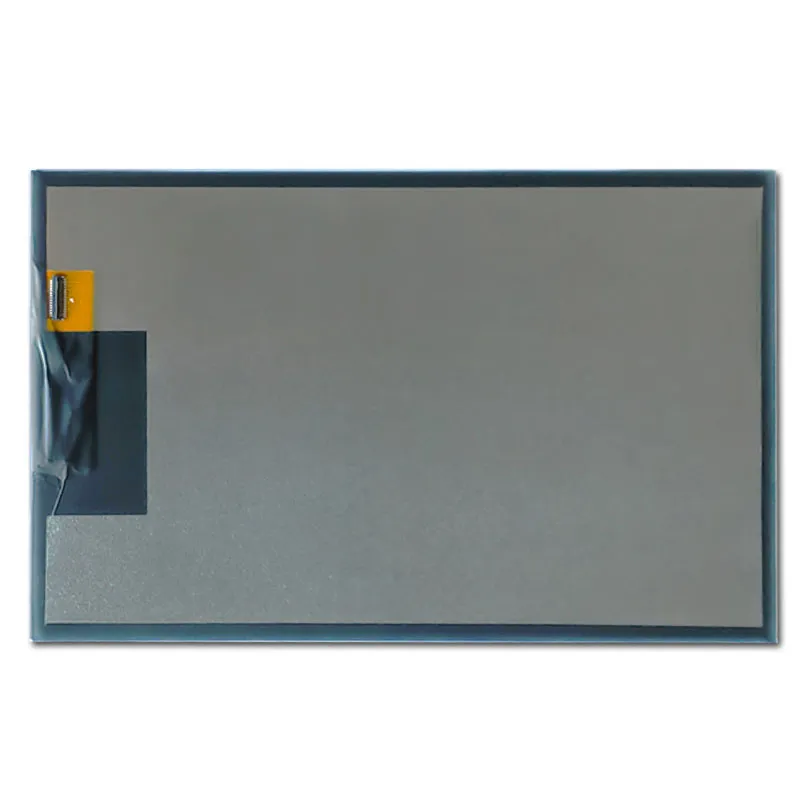

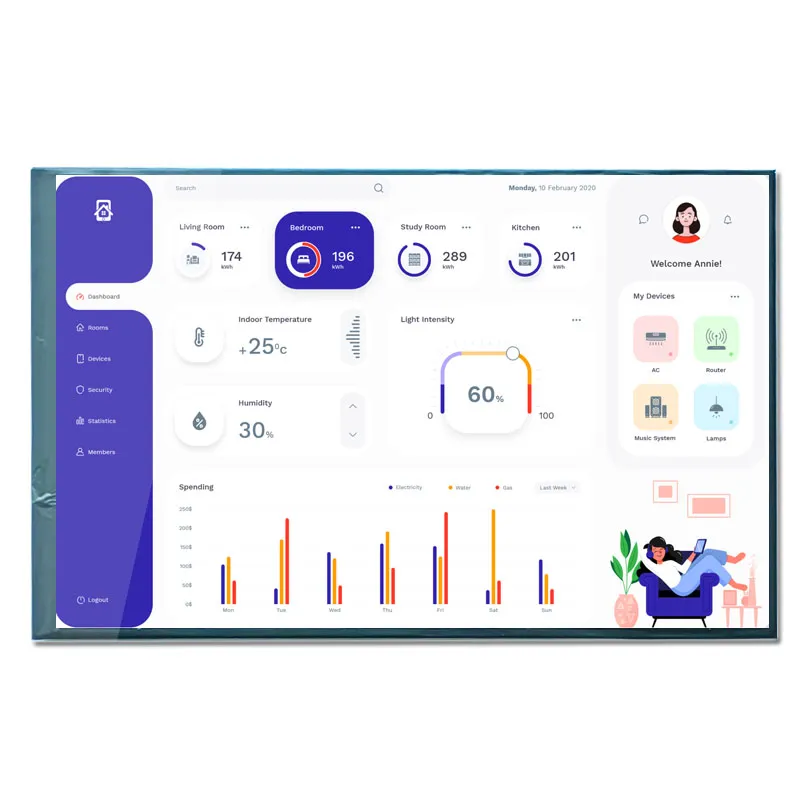

    8" IPS Panels Features

    The 8 inch IPS LCD Panels features a resolution of 800x1280 pixels, making it suitable for a range of consumer electronics and industrial applications. It has an active area of 107.64mm x 172.22mm and compact dimensions of 114.6mm x 184.1mm x 2.6mm, enabling easy integration into device designs. The display offers an 80° viewing angle for consistent image quality and a brightness level of 350 cd/m² for excellent visibility in various lighting conditions. With a contrast ratio of 1200, it enhances content clarity.



    Wide Application for 8" IPS LCD Panel

    The display panel is highly versatile and well-suited for various applications across multiple industries. In industrial settings, it can be integrated into control panels and automation systems, providing operators with clear, real-time information for effective monitoring and control. In embedded systems, including point-of-sale systems that require user-friendly interfaces for transactions and smart home devices that enable intuitive control over home systems like lighting and security. Its robust features make it a reliable choice for both consumer and industrial applications.

    8.0" TFT-LCD Product Specifications

    Numero di modello  90-08004-BS1
    Dimensione 8.0
    Risoluzione 800*1280
    Dimensione del contorno 114.6*184.1*2.6
    Area attiva 107.64*172.22
    Luminosità (cd/m²) 350
    Interfaccia MIPI
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1200:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    8.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    8-Inch 800 × 1280 MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 1280 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
