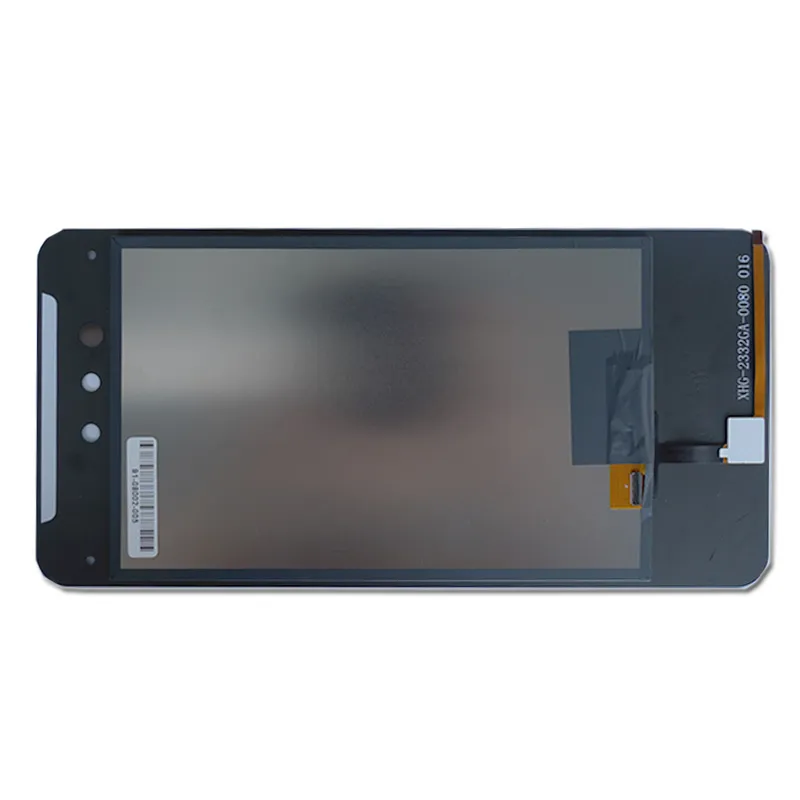

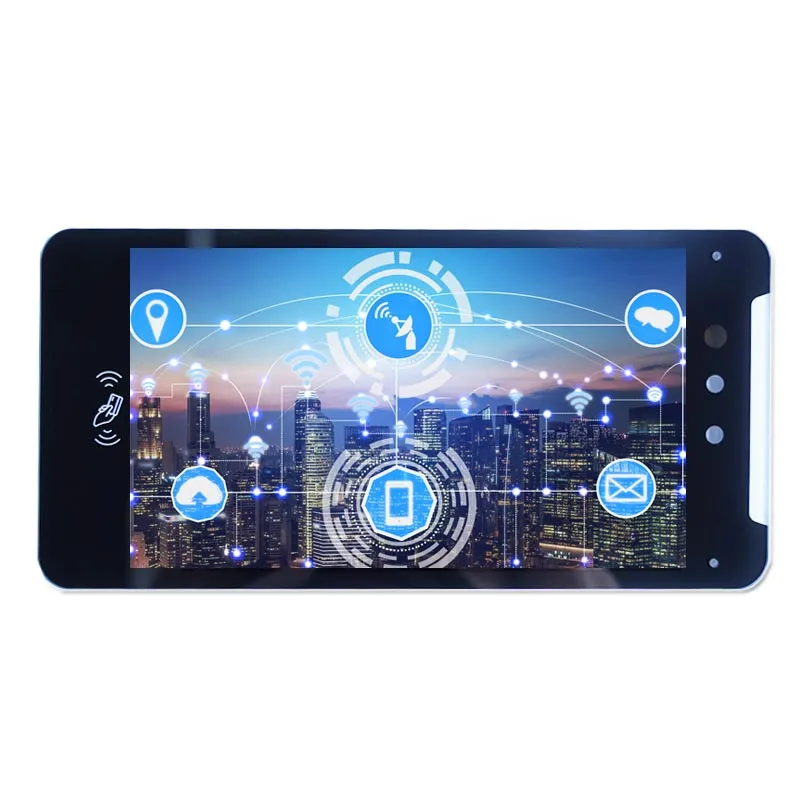

8 inch Touch Panel LCD 800*1280 Pixels

COD: DS20118
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

420

Supporto per touchscreen:

Tipo di display:

8 inch Touch Panel LCD  800*1280 Pixels  Drive IC ILI9881C  G+F+F  OCA Bonding  Transparency≥85%  surface hardness 6H  with Capacitive Touch Display

Richiesta di prezzi a volume







    Descrizione

    8" Touch Panel LCD Features

    The 8 inch Touch Panel LCD features a wide viewing angle of 80° in all directions, ensuring excellent visibility from multiple perspectives. It utilizes a MIPI 31 interface for reliable data transfer and seamless integration with modern microcontrollers. With a brightness of 420 cd/m², the display remains visible in various lighting conditions, It offers a high contrast ratio of 1500:1, providing outstanding differentiation between light and dark areas for an enhanced visual experience.



    8 inch LCD Panel with Capacitive Touch Screen

    The 8-inch LCD Panel features a capacitive touch screen constructed with a Glass-on-Film-on-Film (G+F+F) design, comprising a top glass layer, a touch-sensitive film layer, and a bottom film layer, all bonded with Optically Clear Adhesive (OCA) for high optical clarity and minimal reflection. With a transparency of ≥ 85%, the touch screen ensures excellent light transmission and vibrant colors, keeping display content clear and vivid. Additionally, the glass surface boasts a hardness rating of 6H, providing significant resistance to scratches and impacts, making it highly durable for use in devices subjected to rough handling or harsh conditions.

    8.0" TFT-LCD Product Specifications

    Numero di modello  91-08002-005
    Dimensione 8.0
    Risoluzione 800*1280

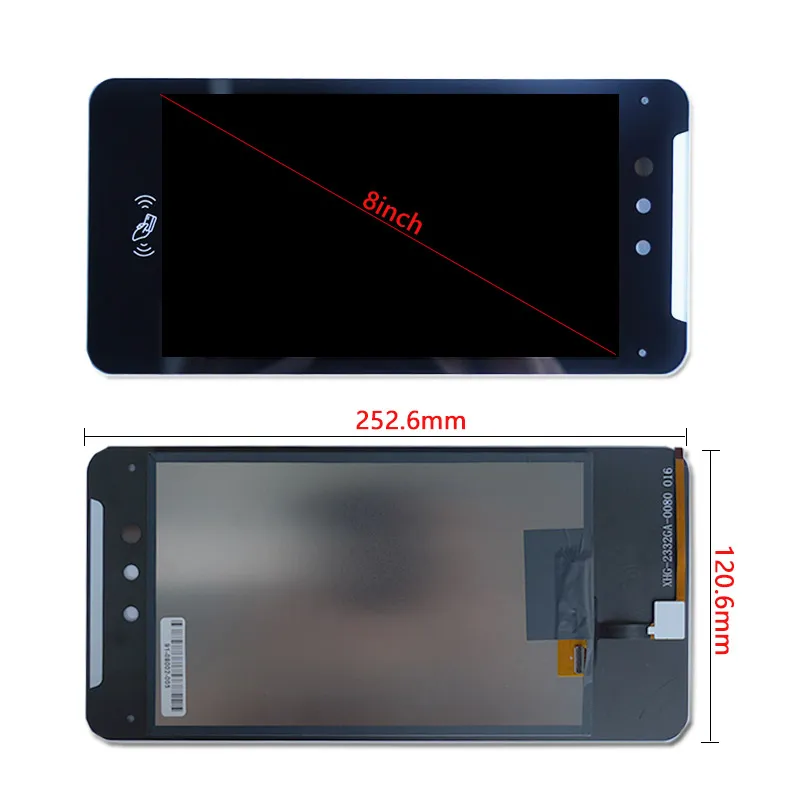

    Dimensione del contorno 120.6*252.6*5.45
    Area attiva 107.64*172.22
    Luminosità (cd/m²) 420
    Interfaccia MIPI
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen capacitivo
    Rapporto di contrasto 1500:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    8.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    8-Inch 800 × 1280 MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 1280 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 420 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    420

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
