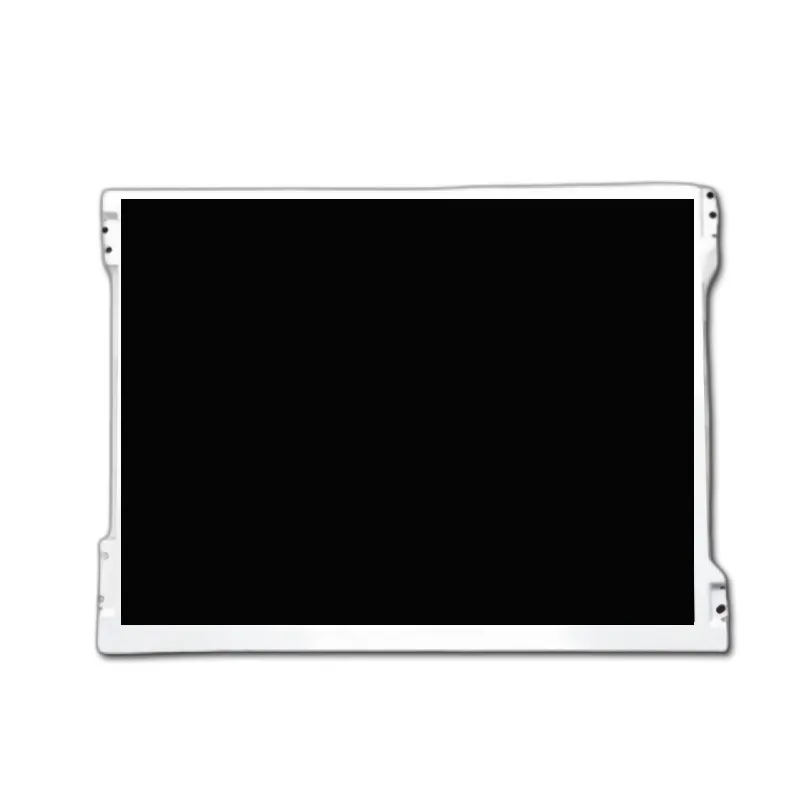

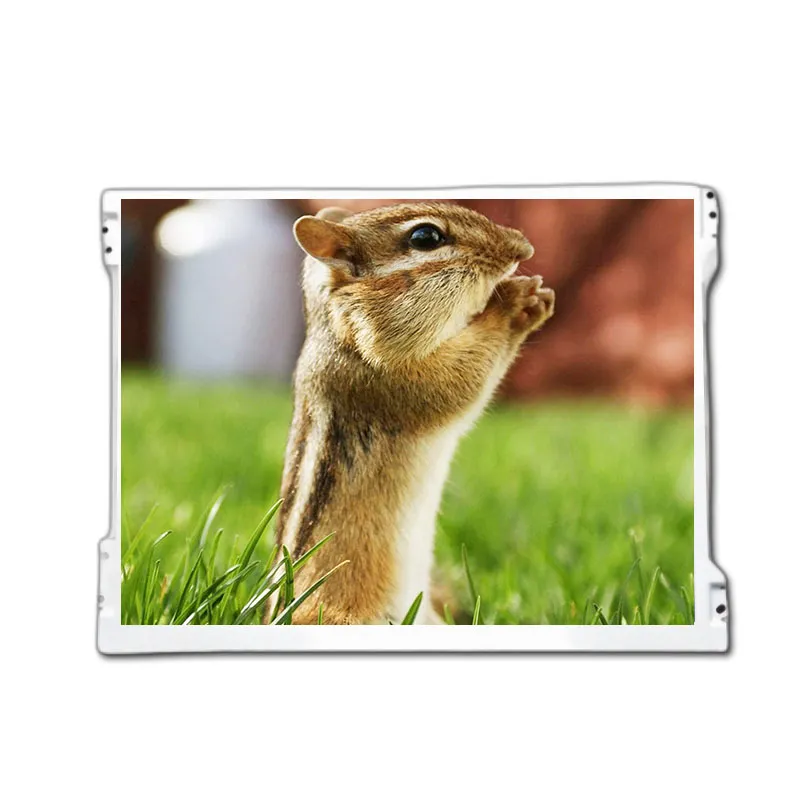

IVO M084GNS1 R1 8.4'' TFT LCD Panel 800x600 LVDS 80/80/80/80 TN 50K Hrs -20℃~70℃

COD: DS50090
Dimensioni:

Numero di modello

M084GNS1 R1

Risoluzione:

Interfaccia:

Supporto per touchscreen:

Tipo di display:

Luminosità (cd/m²):

350

Temperatura di esercizio:

-20℃~70℃

Resources:

IVO M084GNS1 R1: 8.4'' TN LCD with 800x600 LVDS, -20℃~70℃ range, 50K lifespan. Ideal for industrial, medical & outdoor applications. RoHS compliant

Richiesta di prezzi a volume







    Descrizione

    IVO m084gns1 r1 General Description

    The IVO M084GNS1 R1 is an 8.4 inch TFT LCD panel engineered for industrial, commercial, and embedded applications requiring high durability and stable performance. With an 800x600 resolution (SVGA), this TN (Twisted Nematic) panel delivers sharp visuals and supports 80/80/80/80 viewing angles (horizontal/vertical, CR≥10), ensuring readability across diverse lighting conditions.



    Key Features:

    High Compatibility: LVDS interface ensures seamless integration with industrial control systems, medical devices, POS terminals, and automation equipment.
    Extended Lifespan: Rated for 50,000 hours of continuous operation, minimizing downtime and maintenance costs.
    Wide Temperature Range: Operates reliably in extreme environments (-20℃ to 70℃), ideal for outdoor or harsh industrial settings.
    Robust Construction: TN panel technology balances cost-efficiency with performance, resistant to flicker and signal interference.
    Standard Specifications: 4:3 aspect ratio, 6/5/6/6-bit color depth, and 300:1 contrast ratio for clear image reproduction.

    8.4" TFT-LCD Product Specifications

    Numero di modello M084GNS1 R1
    Dimensione 8.4
    Risoluzione 800(RGB)×600
    Dimensione del contorno 203×142.5×6.2
    Area attiva 170.4×127.8
    Luminosità (cd/m²) 350
    Interfaccia LVDS 20pin
    Visualizza la direzione TN
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 600:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    8.4" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    IVO M084GNS1 R1 8.4-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M084GNS1 R1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the IVO M084GNS1 R1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the IVO M084GNS1 R1 compare with the AUO G084SN05 V904?

    Both catalog listings show 8.4 inches, 800 × 600 and LVDS. The catalog lists −20 °C to +70 °C for the IVO panel and −30 °C to +80 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G084SN05 V904

    Is the IVO M084GNS1 R1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    M084GNS1 R1

    Risoluzione:

    Interfaccia:

    Supporto per touchscreen:

    Tipo di display:

    Luminosità (cd/m²):

    350

    Temperatura di esercizio:

    -20℃~70℃
