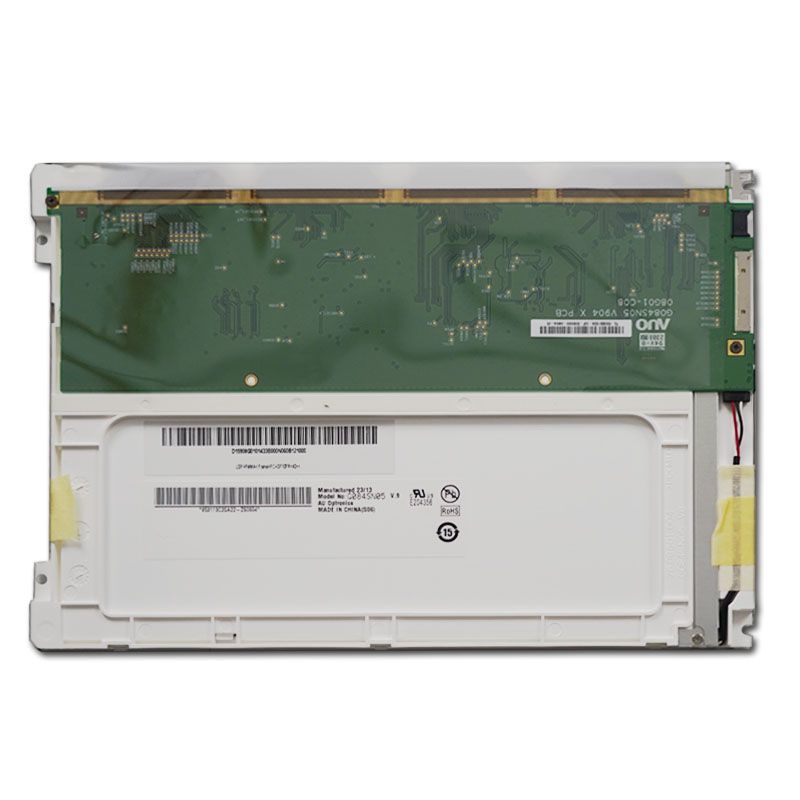

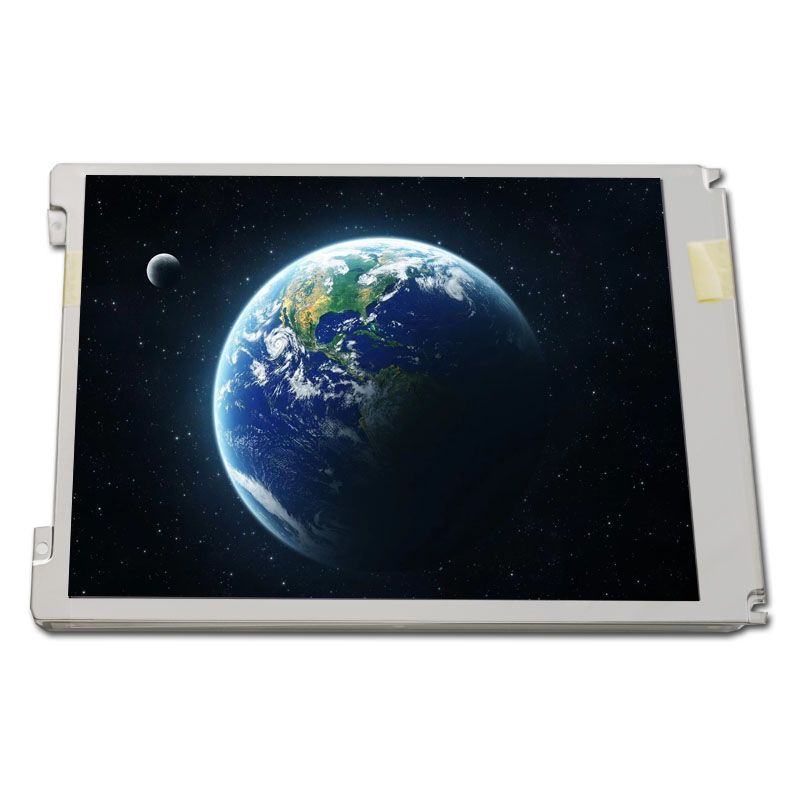

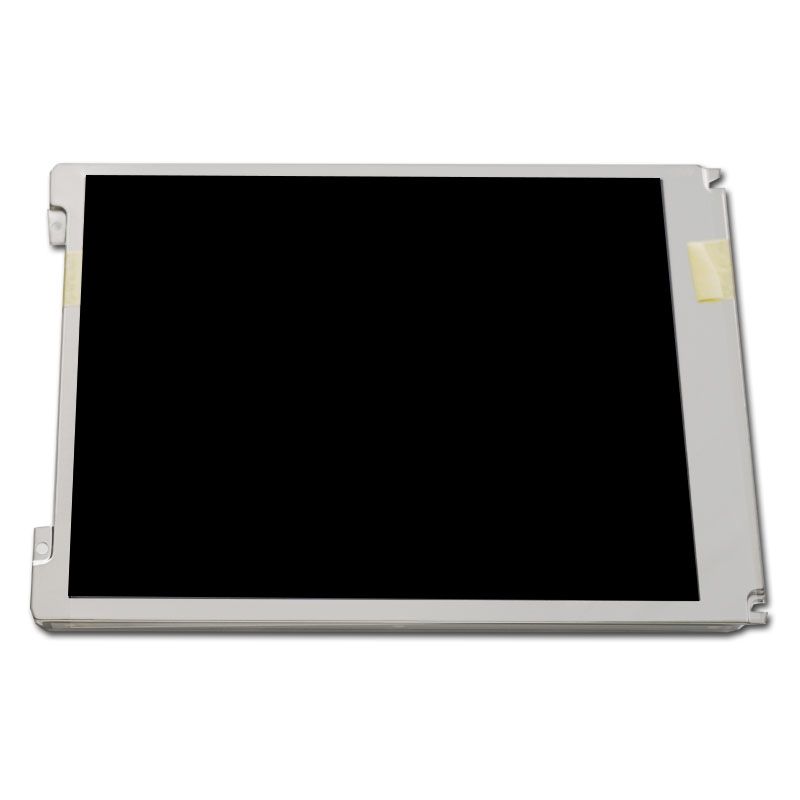

G084SN05 V904 AUO 8.4 inch TFT Screen 800*600

Description

G084SN05 V904 General Description

The 8.4 inch color TFT LCD module G084SN05 V904 designed with wide viewing angle; wide operating temperature and long life LEDs backlight, which is well suited to be the display units for Industrial Applications. LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable. G084SN05 V904 is built in timing controller and LVDS interface. The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits).

G084SN05 V904 AUO TFT Screen Characteristics

The 8.4 inch AUO TFT Screen features an active area of 170.4 mm (H) x 127.8 mm (V) and a resolution of 800 x 600 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.213 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and a typical power consumption of 2.94W. The module weighs approximately 250 grams and has physical dimensions of 203.0 mm (W) x 142.5 mm (H) x 8.0 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 262K colors (6-bit) and 16.2M colors (8-bit). Designed to operate within a temperature range of -30°C to +80°C, with the same range for storage, the module is also RoHS compliant, ensuring adherence to environmental standards

8.4″ TFT-LCD Product Specifications

Model Number	G084SN05 V.904
Size	8.4
Resolution	800*600
Outline Dimension	203*142.5*8
Active Area	170.4*127.8
Brightness(cd/m²)	450
Interface	LVDS
View Direction	TN
Operating Temperature	-30~80
Storage Temperature	-30~80
LED Lifetime	50000
Touchscreen Support	Without
Contrast Ratio	600:1
Power Supply	3.3V
Display Type	Color LCD

8.4″ TFT LCD Custom Solutions

Optimize Your Cable Solutions

Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

LCD Interface Customization

Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

Elevate User Experience with Touch Screen Technology

Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

Custom Cover Glass

Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
