Description
7.0 inch TFT LCD Display Module Core Advantages：

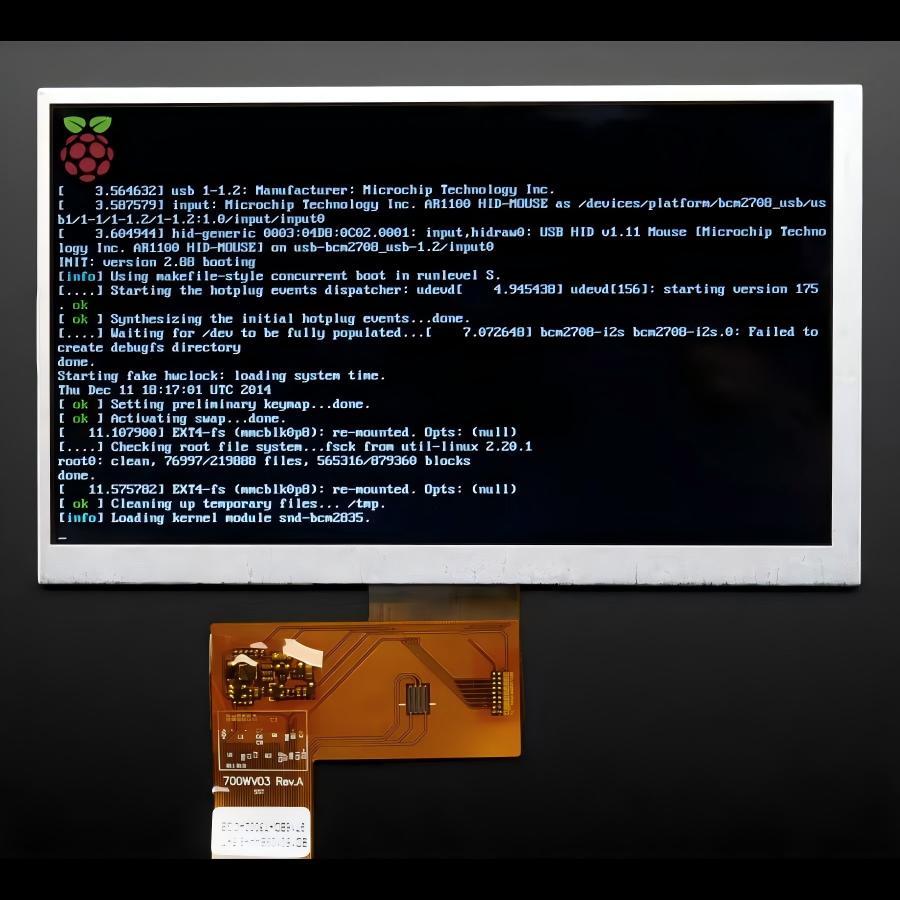

The ZDX070TNCP50-DB10 7-inch TFT LCD module delivers excellent display performance, featuring 800x480 high resolution and a brightness of up to 1000 cd/m², ensuring a clear and bright image. Utilizing LED backlighting, it boasts low power consumption and offers a high contrast ratio of 500:1 with wide viewing angles (typically ±70° horizontally), providing a superior visual experience in various environments. The module features a digital RGB interface, supports scan direction control, and is designed for flexible integration.
7.0 inch TFT LCD Display Module Applications：
This compact and reliable module is designed for robustness, with a wide operating temperature range (-30°C to 85°C) and has passed multiple stringent reliability tests. It is an ideal choice for a variety of applications, including industrial control equipment, Human-Machine Interfaces (HMI), portable instruments, medical device display units, and other embedded systems that require stable, high-quality displays.
7"Product Specifications
| Diagonal size | 7.0 inch |
|---|---|
| Number of pixels | 800 x3(RGB)×480 |
| Brightness | 1000 cd/m² |
| Module size | 164.9 (W) x 100.0 (H) x 5.7 (D) mm |
| Active area | 154.08 (W) x 85.92 (H) mm |
| Look directions | Symmetry |
| Viewing Angle (U/D/R/L) | 40°/60° 70°/70° |
| interface | LVDS |
| Contrast | 500:1 |
| Operating temperature | -30 ~ 85 °C |
| Storage temperature | -30 ~ 85 °C |
| LED Lifespan | 20,000 |
| Power supply | 3.3V |
| Touch screen support |
Not
|
| Display type | TFT-LCD |
IVO LCD display custom solutions
Optimize your wired solution
Adjust the cable's length, position, and pin configuration, or add additional connectors for enhanced functionality. Opt for customized wired solutions designed to simplify connections and ensure secure and reliable performance.
