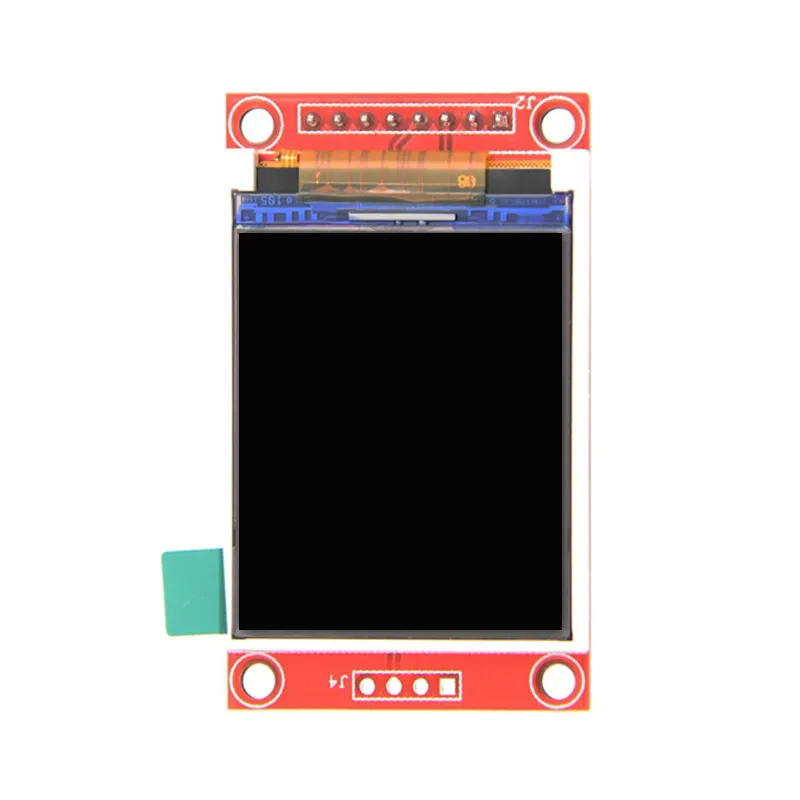

1.8" TFT LCD SPI - 16-bit RGB 65K Color, 128x160, ST7735 with SD Slot

Artikelnummer: DS20207
Größe:

Auflösung:

Schnittstelle:

Touchscreen-Unterstützung:

Board Support

Raspberry Pi

abc

1.8 inch TFT LCD SPI with 16-bit RGB 65K colors, 128x160 resolution. Integrated SD card slot, low-power SPI interface, minimal I/O required. Operates in -20℃~60℃. Ideal for embedded systems & DIY projects.

Preisanfrage für Volumen







    Beschreibung

    1.8" TFT LCD SPI - 16-bit RGB 65K Color, 128x160:

    1.8 inch SPI LCD Module – a high-performance display solution designed for seamless integration and versatile applications.

    ✅ SPI Serial Interface: Requires only 4-6 I/O pins, reducing wiring complexity and saving MCU resources.
    ✅ SD Card Slot: Expand storage capacity for fonts, images, and data logging, enabling rapid prototyping.
    ✅ Wide Temperature Range: Stable operation from -20℃ to 60℃, suitable for industrial and outdoor environments.
    ✅ Low Power Design: Optimized for battery-powered devices like portable instruments and IoT gadgets.

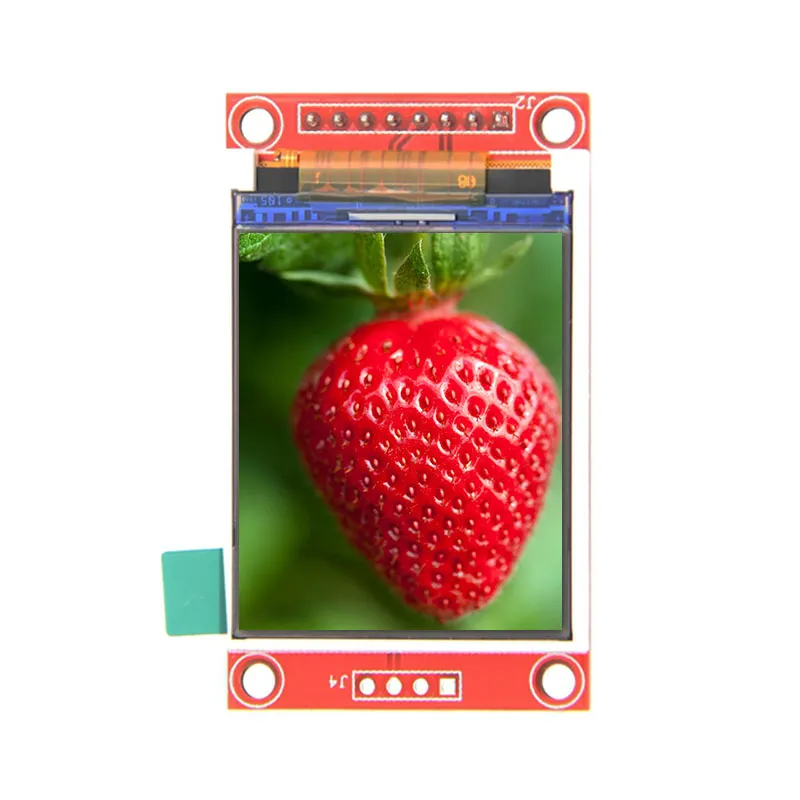

    TFT LCD SPI



    1.8inch SPI Module ST7735S
    Key Parameters Display Color RGB 65K color Schnittstelle PIN NO. SYMBOL DESCRIPTION
    Screen Size 1.8(inch) 1 VCC 5V/3.3V power input
    Type TFT 2 GND Ground
    Driver IC ST7735S 3 CS LCD chip select signal, low level enable
    Auflösung 128*160 (Pixel) 4 RESET LCD reset signal, low level reset
    Module Interface 4-wire SPI interface 5 A0 LCD register / data selection signal,
    Active Area (AA area) 28.03x35.04(mm) high level: register, low level: data
    Module PCB Size 34.5x58.0(mm) 6 SDA SPI bus write data signal
    Betriebstemperatur -20℃~60℃ 7 SCK SPI bus clock signal
    Lagertemperatur -30℃~70℃ 8 LED Backlight control, high level lighting,
    VCC power voltage 3.3V if not controlled, connect 3.3V always bright

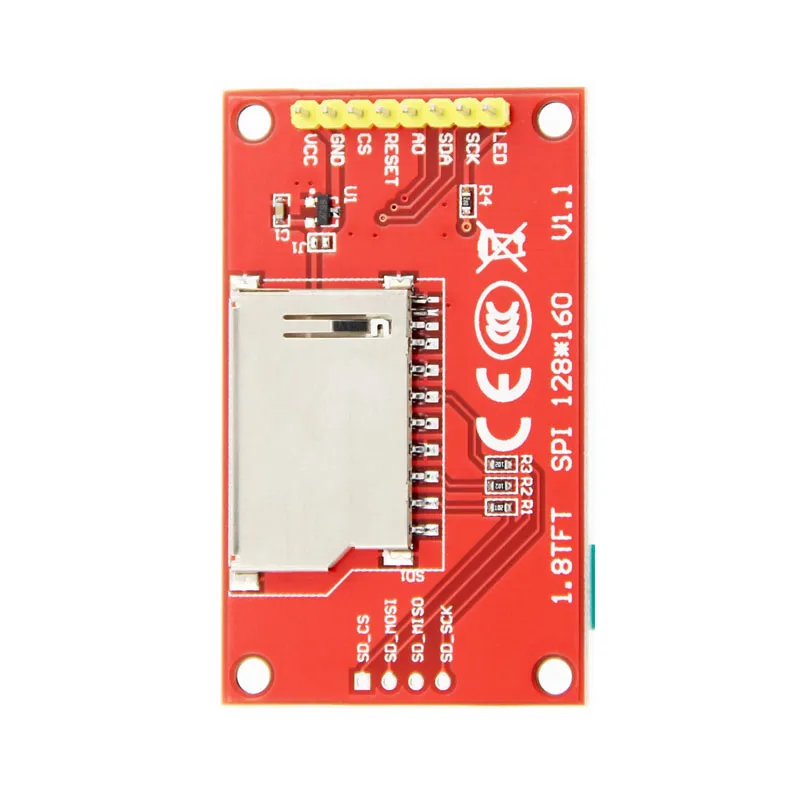

    product picture lcd display module price

    Download

    1.8-Inch 128 × 160 SPI TFT LCD Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 128 × 160 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
