Beschreibung

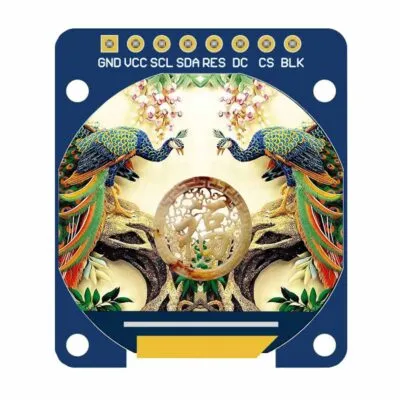

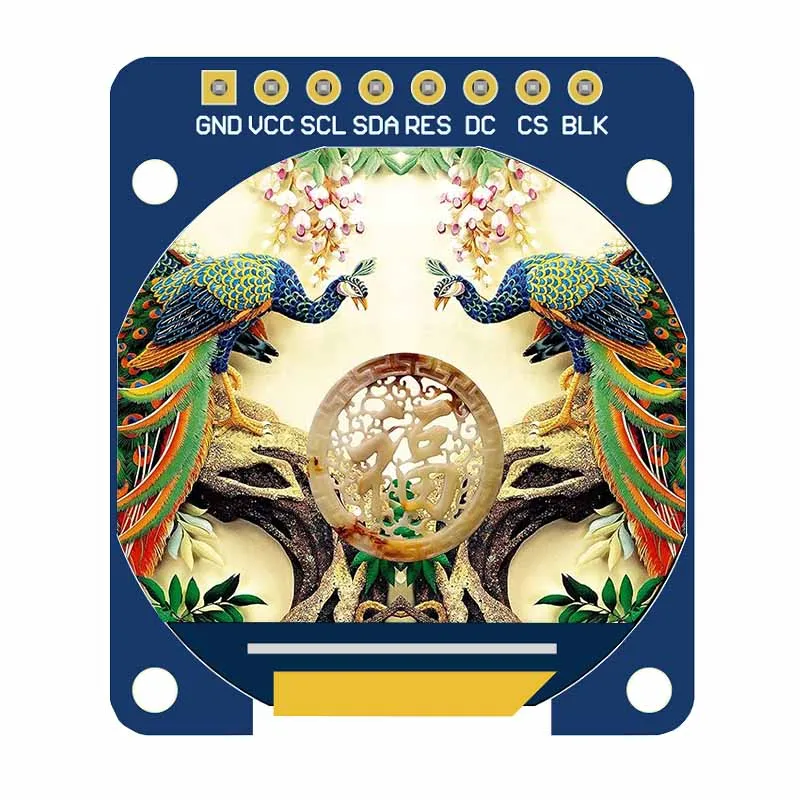

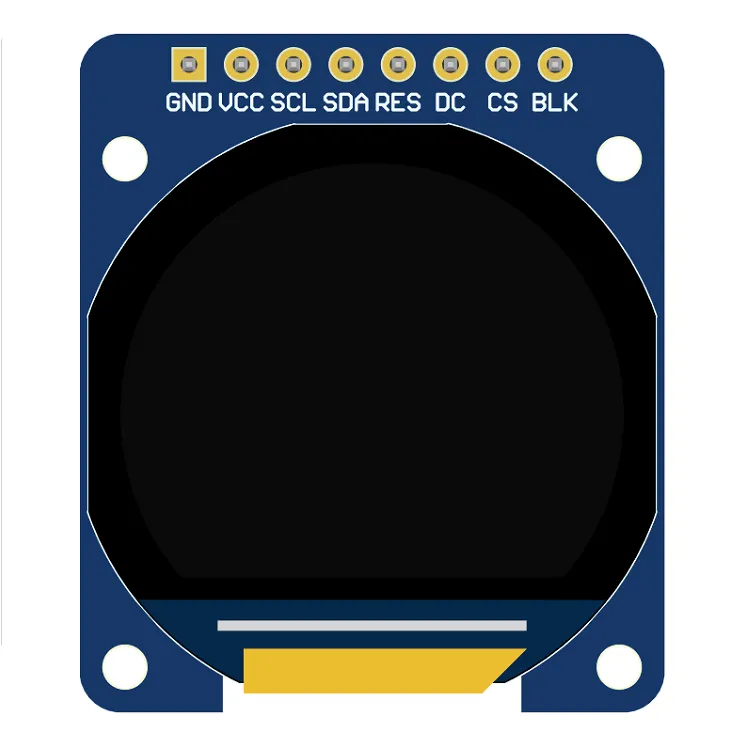

0.96″ Round TFT Display | 240×198 IPS SPI Screen:
| ✅ 4-Wire SPI Interface: Minimizes I/O usage while maintaining fast data transfer. ✅ Onboard Level Shifter: Effortlessly switch between 5V and 3.3V MCU without external components. ✅ IPS Technology: 178° wide viewing angle for consistent clarity in industrial, IoT, and wearable applications. ✅ Ultra-Low Power Design: Optimized for battery-powered devices. ✅ Rugged Construction: Stable performance under extreme temperatures (-20°C to +70°C). Ideal for embedded systems, smart devices, and HMI interfaces, this module offers plug-and-play compatibility with Arduino, Raspberry Pi, and STM32 platforms. Simplify your design process with pre-tested drivers and a lightweight footprint |
 |

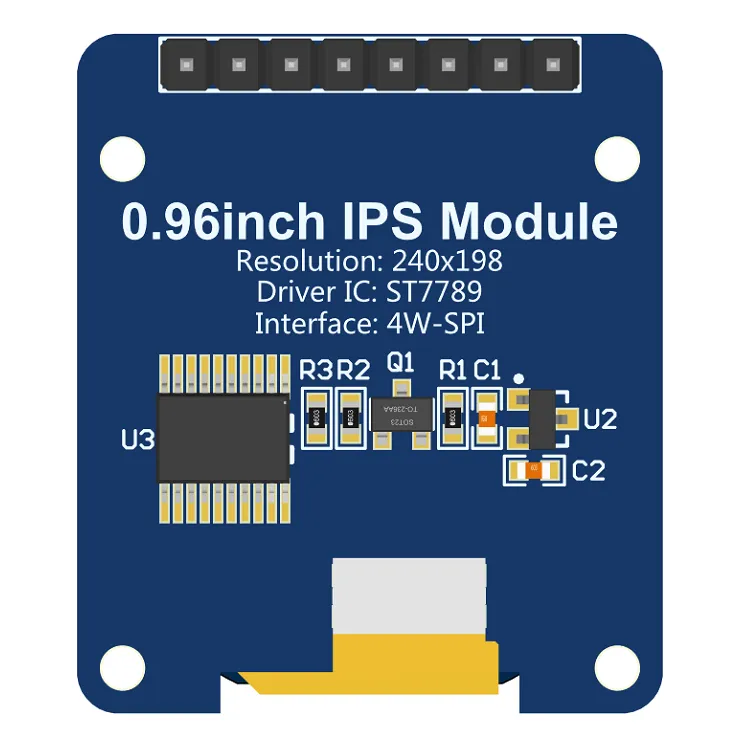

| 0.96inch IPS ST7789 Module | ||
| Key Parameters | Größe | 0.96(inch) |
| SKU | DS20199 | |
| Auflösung | 240xRGBx198 (pixels) | |
| Active Area (AA area) | 24.408(W)x20.137(H)(mm) | |
| TFT Outline Size | 27.4±0.2(W)x27.0±0.2(H)x1.31±0.15(D)(mm)(Excluding adhesive backing) | |
| Module Outline Size | 28.4(W)x33.0(H)x11.17(D)(mm)(including Pin Header) | |
| Display Interface | 4-Line SPI | |
| View Angle | ALL 0’CLOCK | |
| Brightness(TYP) | 300(cd/m2) | |
| Operation Temperature | -10~60(℃) | |
| Lagertemperatur | -20~70(℃) | |
| Working Voltage | 5.0 V/3.3V | |
| Backlight Current | 40 mA | |
| Power | 0.09 W | |
| Backlight Type | White LED*2 | |

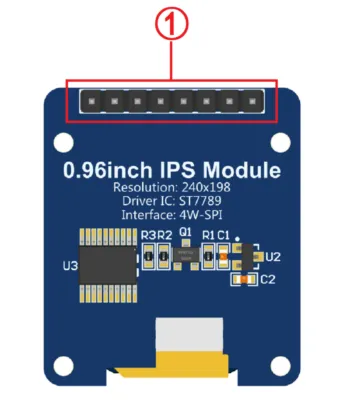

| Hardware Description |  |
|
| ①8P pin arrangement | 2.54mm spacing row pins, module signal input pins | |
