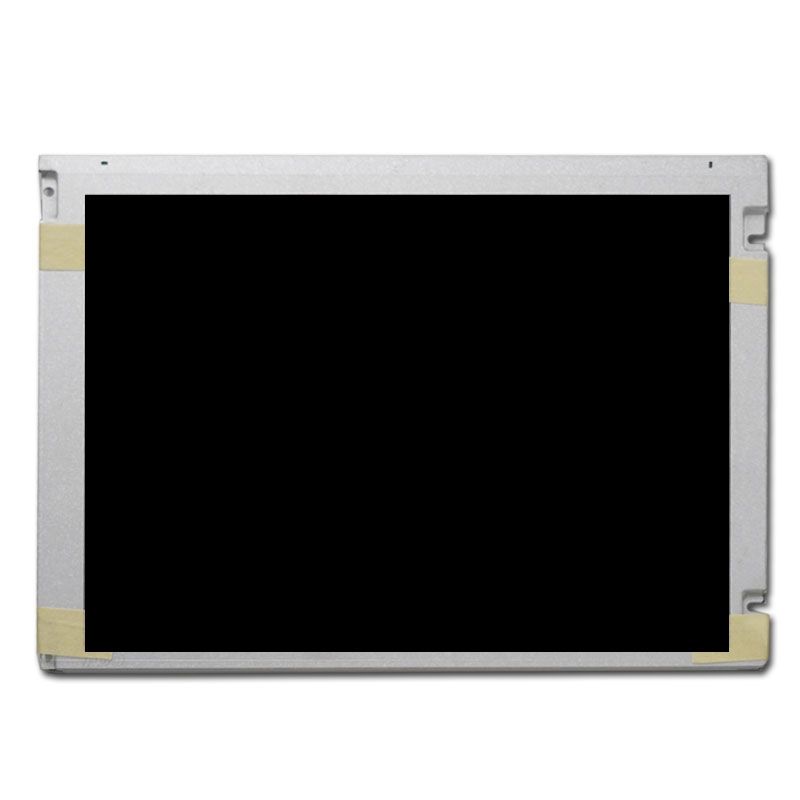

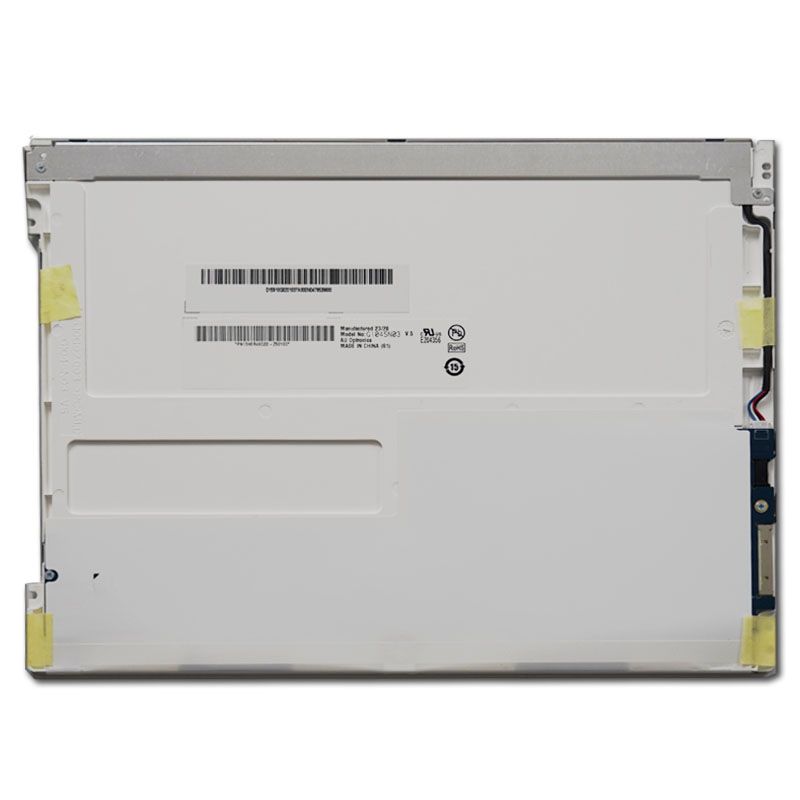

G104STN01.0 AUO 10.4 inch Display TFT LCD 800*600 Pixels

Description

G104STN01.0 General Description

G104STN01.0 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.2M (RGB8-bits) or 262k colors (RGB 6-bits).LED driving board for backlight unit is included in G104STN01.0 and the LED unit is replaceable.All input signals are LVDS interface and compatible with G104SN02 V2. It well suited for industial applications.

G104STN01.0 AUO Display TFT LCD Characteristics

The 10.4 inch AUO Display TFT LCD features an active area of 211.2 mm (H) x 158.4 mm (V) and a resolution of 800 x 600 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.264 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and a typical power consumption of 2.88W under an all-black pattern. The module weighs approximately 365 grams and has physical dimensions of 243.0 mm (H) x 184.0 mm (V) x 6.5 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 16.2 million colors (8-bit) and 262K colors (6-bit). Designed for operation and storage within a temperature range of -20°C to +80°C, the module is also RoHS compliant, ensuring adherence to environmental standards.

10.4″ TFT-LCD Product Specifications

Model Number	G104STN01.0
Size	10.4
Resolution	800*600
Outline Dimension	243*184*7
Active Area	211.2*158.4
Brightness(cd/m²)	400
Interface	LVDS
View Direction	TN
Operating Temperature	-30~80
Storage Temperature	-30~80
LED Lifetime	50000
Touchscreen Support	Without
Contrast Ratio	700:1
Power Supply	3.3V
Display Type	Color LCD
