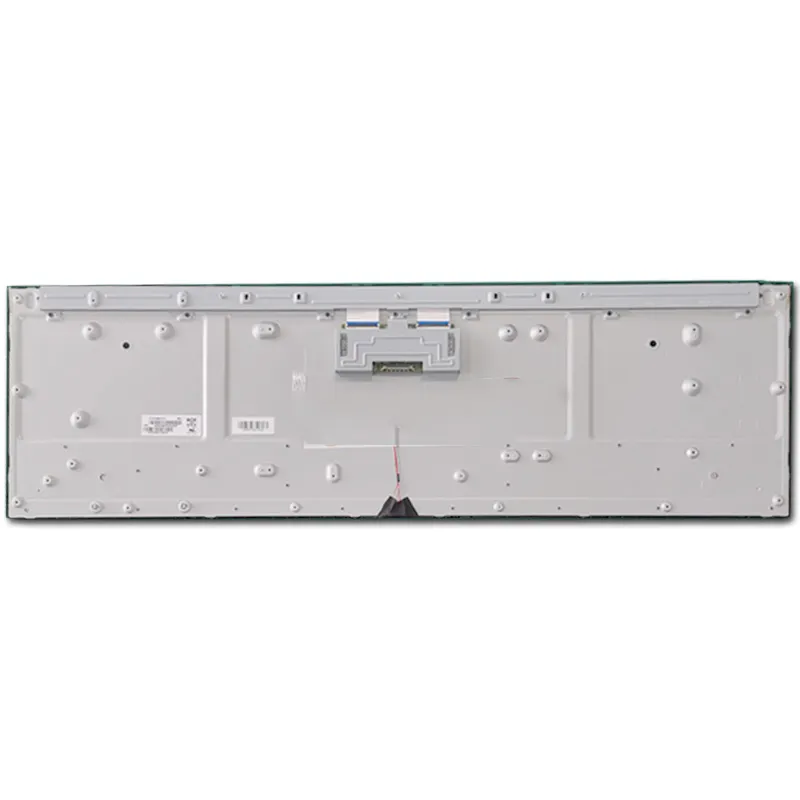

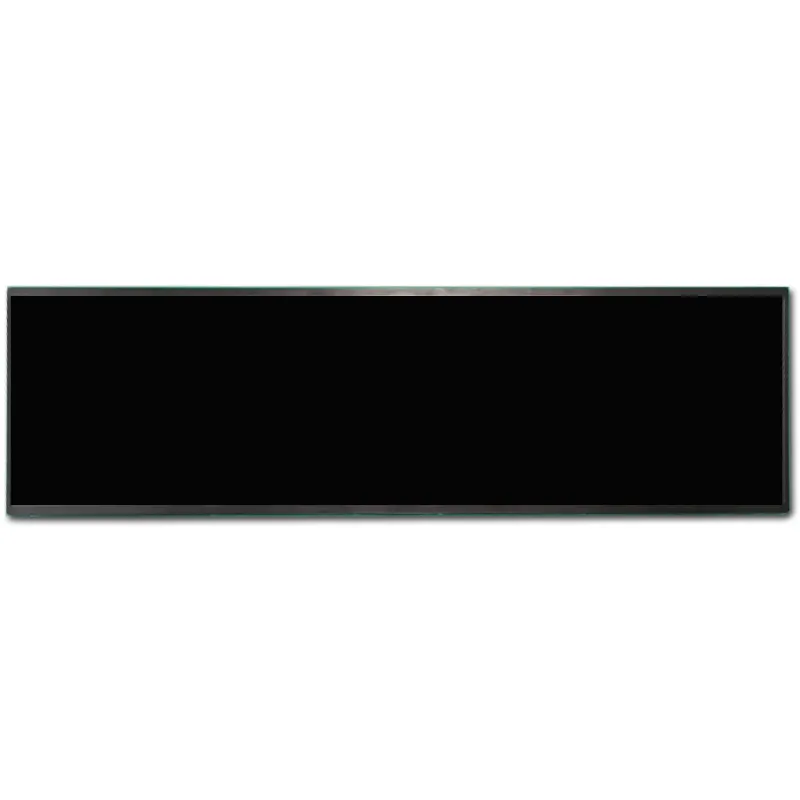

DV370FBM-N10 BOE LCD Panel 37 inch 1920*540 pixels Brightness 700 cd/m²

SKU: DS20164
Tamaño:

Número de modelo

V370FBM-N10

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~50℃

Brillo (cd/m²):

700

Compatible con pantallas táctiles:

Tipo de pantalla:

DV370FBM-N10 BOE LCD Panel, offering resolution 1920*540 pixels, brightness 700 cd/m, AA size 899.712(W)×253.044(H) mm, LVDS (2 ch, 8-bit) , 51 pins Connector

Solicitar precios por volumen







    Descripción

    DV370FBM-N10 General Desription

    DV370FBM-N10 is a 37” diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C.



    DV370FBM-N10 Features

    --Outdoor High Brightness 700 cd/m
    --WLED Backlight,Life ≥ 50K hours
    --Stretched Bar LCD Display
    --89/89/89/89 IPS Wide Viewing Angle
    --High Contrast Ratio
    --RoHS

    DV370FBM-N10 Product Specifications

    Tamaño diagonal 37"(Diagonal)
    Número de píxeles 1920×540 Pixels
    Luminancia 700
    Tamaño del módulo 899.712(W)×253.044(H)
    Área activa 919.3(W)×138.85(H)
    Dirección de visualización ALL
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Interfaz LVDS 51
    Relación de contraste 1000
    Temperatura de funcionamiento -0~50℃
    Temperatura de almacenamiento -20~60℃
    - -
    - -
    - -
    - -

     Bar LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    BOE DV370FBM-N10 37-Inch Stretched Bar LCD FAQ

    How do I confirm that I need the BOE DV370FBM-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 37-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE DV370FBM-N10?

    Check the connector pinout, video timing, panel supply and backlight enable or dimming against the exact drawing. Send us the controller model or cable diagram before reusing the harness.

    TFT LCD datasheet integration guide

    How does the BOE DV370FBM-N10 compare with the Innolux S370AJ1-LE1?

    Both catalog listings show 37 inches, 1920 × 540 and LVDS. The catalog lists 0 °C to +50 °C for the BOE panel and −20 °C to +60 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux S370AJ1-LE1

    Is the BOE DV370FBM-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and adapt its cable or front assembly?

    We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
