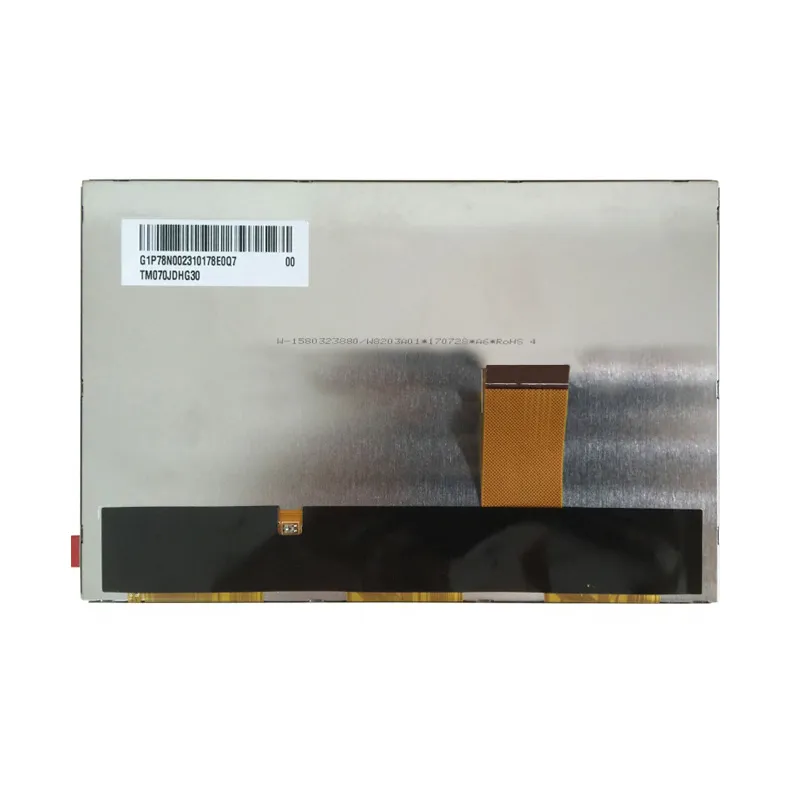

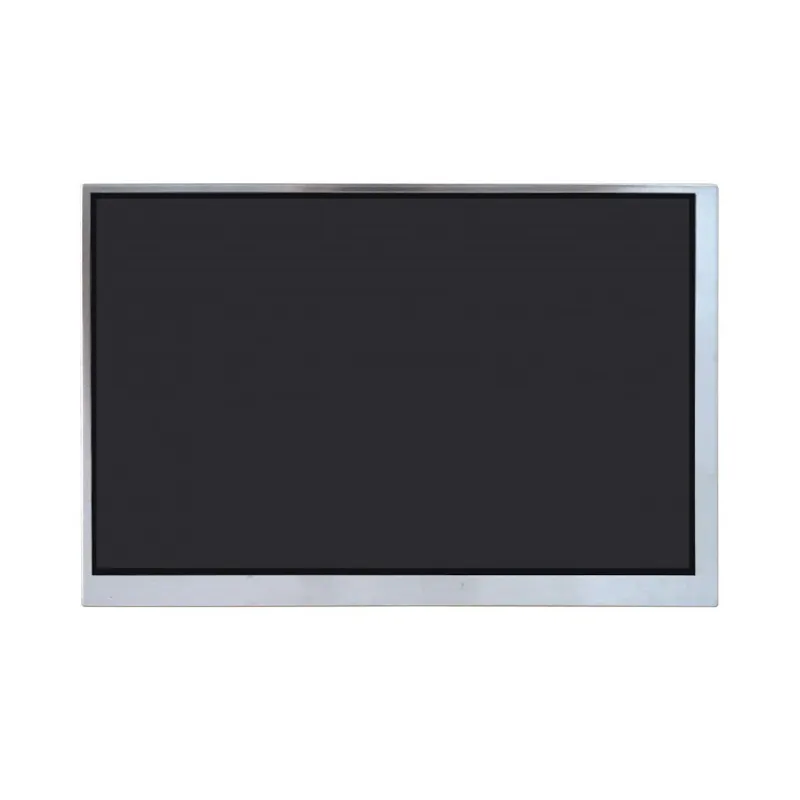

TIANMA TM070JDHG30-00 7 inch IPS LCD Industrial Display with 1280×800 Resolution Industrial TFT

SKU: DS50255
Tamaño:

Número de modelo

M070JDHG30-00

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Compatible con pantallas táctiles:

Tipo de pantalla:

TIANMA TM070JDHG30-00 7 inch 400cd/m² Brightness IPS LCD Display for Harsh Environments – 1280×800 Resolution & -20°C~70°C Operation.

Solicitar precios por volumen







    Descripción

    TM070JDHG30-00 General Desription

    The TIANMA TM070JDHG30-00 is a 7-inch high-resolution (1280×800) color LCD module featuring IPS technology for superior 88° viewing angles in all directions. With 400 cd/m² brightness and an 800:1 contrast ratio, it delivers vivid visuals even in direct sunlight. Built for industrial durability, it operates reliably across -20°C to 70°C and offers a 30,000-hour LED lifespan. The LVDS interface ensures fast data transmission for real-time applications, while the 3.3V low-power design supports energy-efficient systems. Its slim profile (161×107×4.95mm) and non-touch design make it ideal for embedded solutions requiring robust performance in harsh environments.



    Aplicación y rendimiento

    Perfect for industrial HMIs, outdoor kiosks, and transportation systems, the TM070JDHG30-00 excels in high-ambient-light conditions like construction site displays and solar farm monitoring. Its IPS panel ensures consistent color accuracy for medical imaging equipment and aviation dashboards. The wide temperature range suits automotive diagnostics tools and cold-chain logistics trackers. With LVDS signal stability, it powers railway information boards and robotic control panels. Rugged enough for maritime navigation systems and oil/gas field sensors, this display also serves digital signage in retail environments requiring all-angle visibility. Engineers value its 30k-hour lifespan for 24/7 manufacturing line monitors.

    7.0" Product Specifications

    Tamaño diagonal 7.0 inch
    Número de píxeles 1280×800
    Luminancia 400
    Tamaño del módulo 161×107×4.95
    Área activa 149.76×93.692
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 70/70/50/70
    Interfaz LVDS
    Relación de contraste 800 : 1
    Temperatura de funcionamiento -20 ~ 70 °C
    Temperatura de almacenamiento -30 ~ 80 °C
    Vida útil del LED 30000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3/10.4/16/-6.8V
    Tipo de pantalla TFT en color

    TIANMA LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Tianma TM070JDHG30-00 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM070JDHG30-00?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Tianma TM070JDHG30-00?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Tianma TM070JDHG30-00?

    Use 1280 × 800 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Tianma TM070JDHG30-00 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M070JDHG30-00

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:
