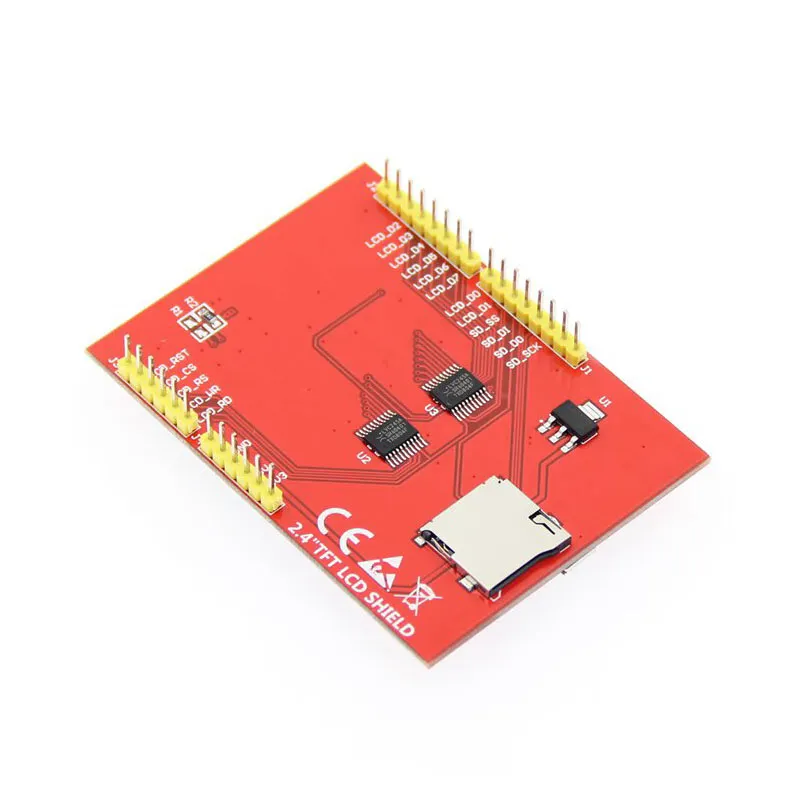

2.4 TFT Display Sheild Support Arduino UNO Mega2560

UGS : DS20192
Taille :

Résolution :

Interface :

Prise en charge de l'écran tactile :

Soutien au conseil d'administration

Arduino, UNO, Mega 2560

abc

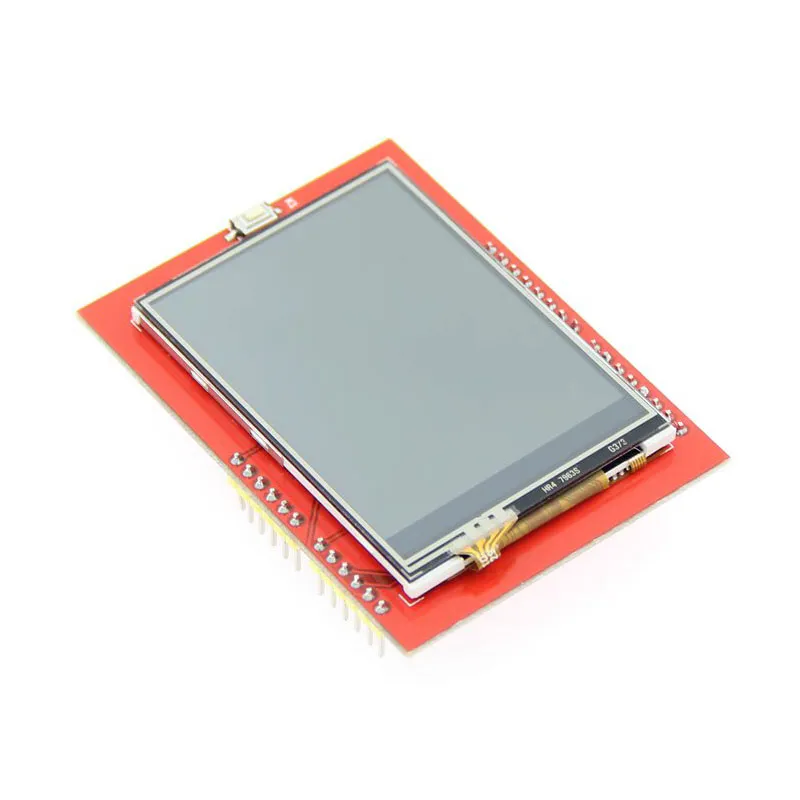

2.4 tft display sheild, LCD touch shield, with 320*240 high resolution, Supports direct plug-in of development boards such as Arduino UNO and Mega2560, no wiring required

Demande de tarification au volume







    Description

    2.4 tft display sheild Arduino main features:

    • Supports direct plug-in use of development boards such as ArduinoUNO and Mega2560, no wiring required
    • 320X240 HD resolution, supports touch function
    • Uses 8-bit parallel bus, which is faster than serial port SPI refresh
    • With SD card slot for convenient expansion of experiments
    • Provides Arduino library and rich sample programs
    • Military-grade process standards, long-term stable operation
    • Provides underlying driver technology support

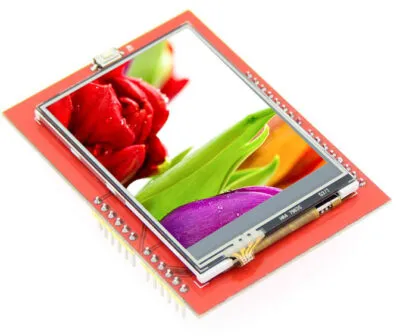

    2.4 inch tft lcd sheild arduino



    Product Parameters Parameter Specification Interface Definition Pin No Symbol Description
    Display colors RGB 65K colorful 1 LCD_RST LCD bus reset signal
    SKU Mar-06 2 LCD_CS LCD bus chip select signal
    Taille 2.4(inch) 3 LCD_RS LCD bus command/data select signal
    Display type TFT 4 LCD_WR LCD bus write signal
    Drive IC ILI9341 5 LCD_RD LCD bus read signal
    Résolution 320*240 (Pixel) 6 GND Power ground
    Module interface 8-bit parallel interface 7 5V 5V power input
    AA 48.96*36.72(mm) 8 3V3 NC pin can be left unconnected
    PCB Dimensions 72.20*52.7(mm) 9 LCD_D0 LCD 8-bit data Bit0
    Température de fonctionnement -20℃~60℃ 10 LCD_D1 LCD 8-bit data Bit1
    Température de stockage -30℃~70℃ 11 LCD_D2 LCD 8-bit data Bit2
    Voltage 5V/3.3V 12 LCD_D3 LCD 8-bit data Bit3
    Consommation électrique - 13 LCD_D4 LCD 8-bit data Bit4
    Gross weight 39(g) 14 LCD_D5 LCD 8-bit data Bit5
    15 LCD_D6 LCD 8-bit data Bit6
    16 LCD_D7 LCD 8-bit data Bit7
    17 SD_SS SD card SPI bus chip select signal
    18 SD_DI SD card SPI bus MOSI signal
    19 SD_DO SD card SPI bus MISO signal
    20 SD_SCK SD card SPI bus clock signal

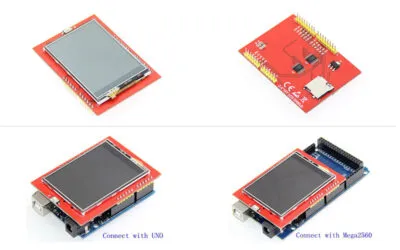

    Product Picture support direct plug in for Arduino UNO and Mega2560

    Télécharger

    320 × 240 TFT LCD Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 320 × 240 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Prise en charge de l'écran tactile :

    Soutien au conseil d'administration

    Arduino, UNO, Mega 2560
