24.3 pouces Long Stripe Display Moniteur Résolution 1920*508

UGS : DS30040
Taille :

Résolution :

Interface :

, , , , ,

Luminosité (cd/m²) :

500

Température de fonctionnement :

-0℃~50℃

24.3 inch Long Stripe Display monitors, offering resolution 1920*508, Brightness 500cd/m2, Interface with Audio/HDMI/USB/RS232/RJ45/DC IN

Demande de tarification au volume







    Description

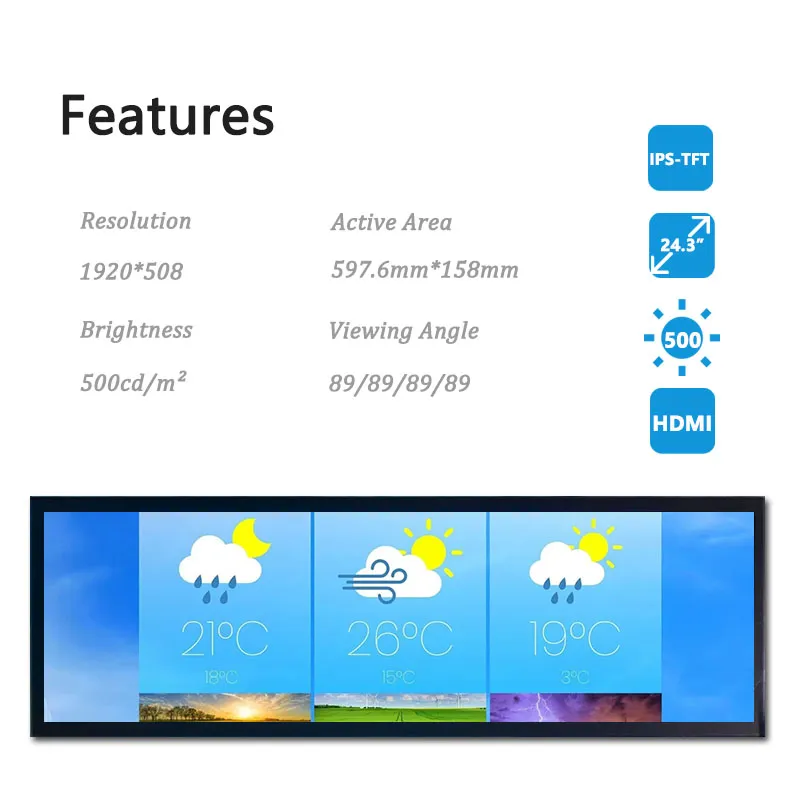

    24.3 inch Long Stripe display monitor main features:

    • 178° ultra-wide viewing angle, 1200:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 300~500cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

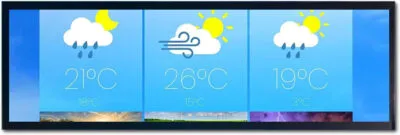

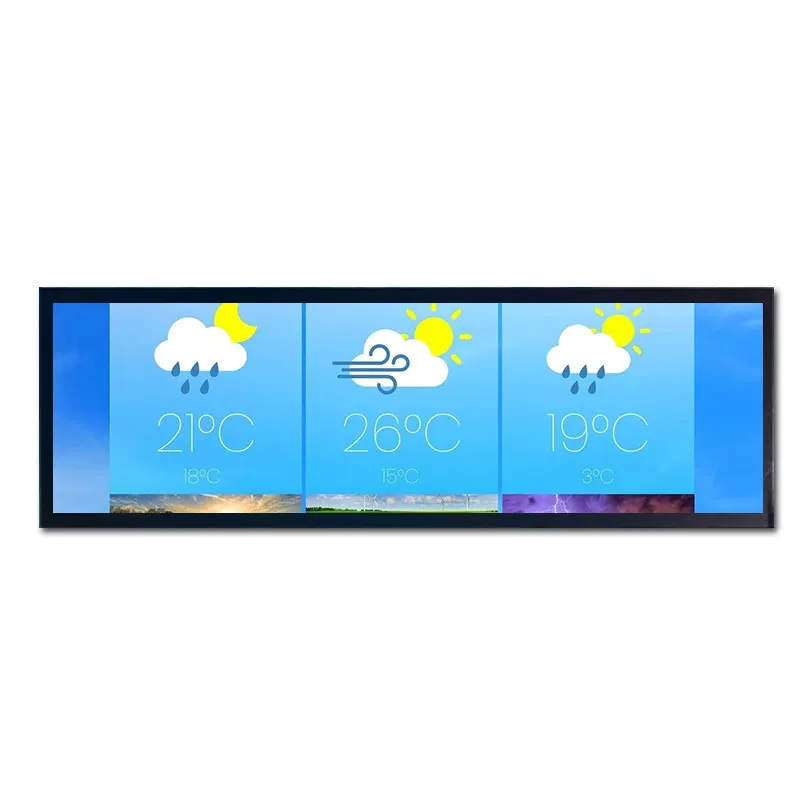

    24.3 inch Long Stripe Display



    24.3 inch Long Stripe display monitor Specification

    Écran LCD Taille de l'écran 24,3 pouces

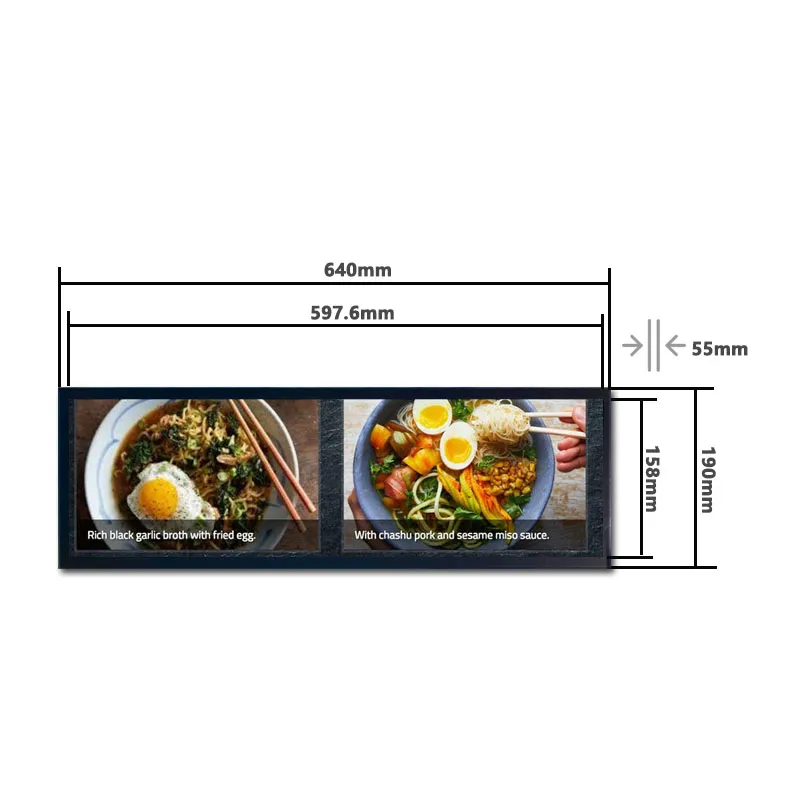

    Zone active 597.6*158(mm)
    Aperçu 640*190*55(mm)
    Type d'écran TFT-LCD a-Si
    Nombre de pixels 1920*508
    Rapport d'aspect 4:1
    Luminance 500 cd/m2
    Rapport de contraste 1200:1
    Angle de vue 89/89/89/89 (Typ.)(CR≥10)
    Profondeur de couleur 16.7M 68% NTSC
    Réponse 8 (Typ.)(G à G) ms
    Hauteur du pixel -
    Carte mère UNITÉ CENTRALE A40
    Ram
    Flash
    O/S
    Interface Audio/HDMI/USB/RS232/RJ45/DC IN
    Machine Apparence et structure Tôle
    Couleur Black
    Périphérique WIFI/Speaker*2
    Alimentation électrique DC12V
    Consommation électrique ≦45W
    Température de fonctionnement 0℃~50℃
    Température de stockage -10℃~50℃
    Méthode d'installation Suspension murale
    Poids net 3.2KG
    Taille du corton -
    Number of boxes -
    Corton weight -

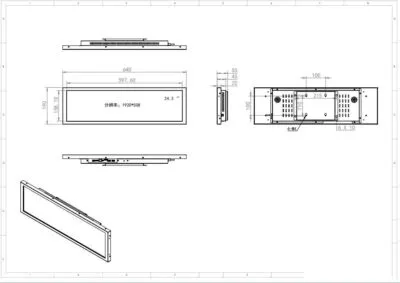

    Drawing and photo 24.3 inch Long Stripe display monitor drawings

    24.3-Inch 1920 × 508 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 24.3-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 508 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    , , , , ,

    Luminosité (cd/m²) :

    500

    Température de fonctionnement :

    -0℃~50℃

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
