77.5 inch Stretched Bar LCD Monitor Resolution 3840*1080

UGS : DS30011
Taille :

Résolution :

Interface :

, , , ,

Température de fonctionnement :

-0℃~50℃

77.5 inch Stretched Bar LCD Monitor, offering resolution 3840*1080, Aspect Ratio 32:9, Brightness 400cd/m2, Interface with Audio/HDMI IN*2/USB/DP IN/DC IN

Demande de tarification au volume







    Description

    77.5 inch Stretched Bar LCD Monitor main features:

    • 178° ultra-wide viewing angle, 1000:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 400cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

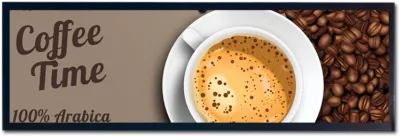

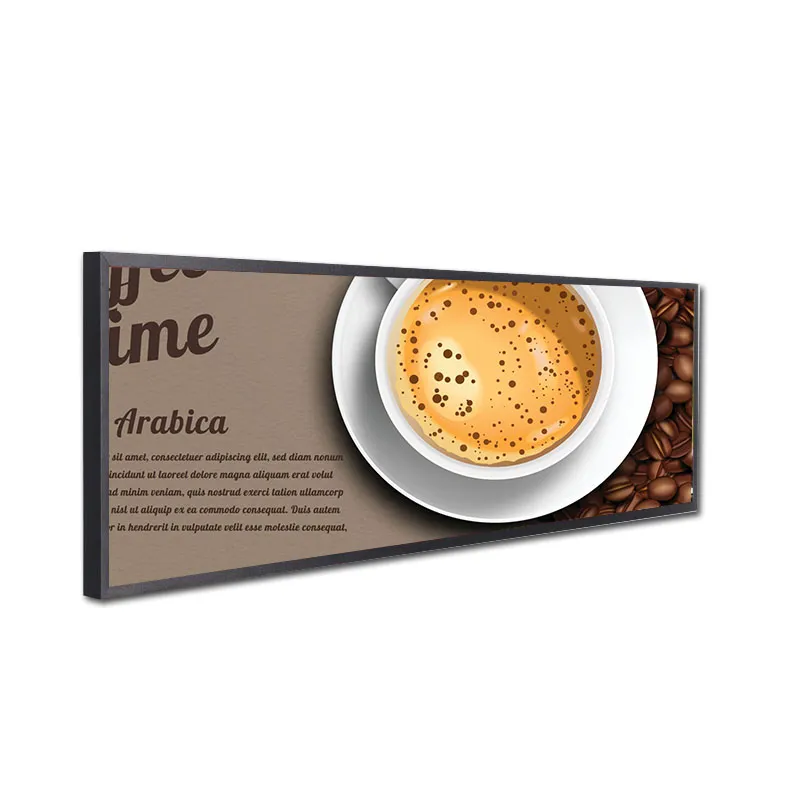

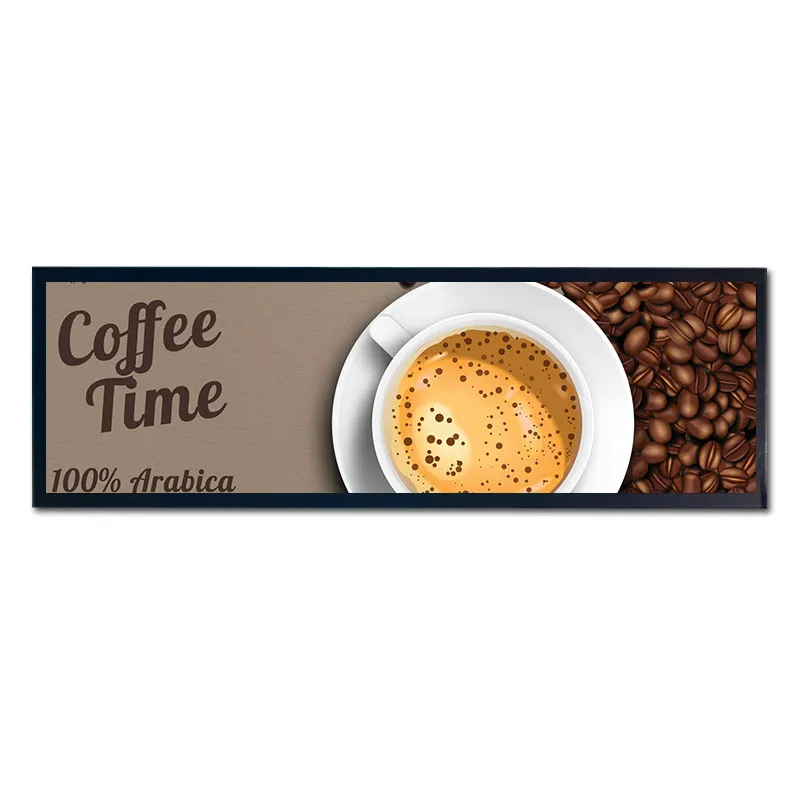

    77.5 inch Stretched Bar LCD Monitor



    77.5 inch Stretched Bar LCD Monitor Specification

    Écran LCD Taille de l'écran 77.5 inch
    Zone active 1895*533(mm)
    Aperçu 1935*573*50(mm)
    Type d'écran TFT-LCD a-Si
    Nombre de pixels 3840*1080
    Rapport d'aspect 32:9
    Luminance 400 cd/m2
    Rapport de contraste 1000:1
    Angle de vue 89/89/89/89 (Typ.)(CR≥10)
    Profondeur de couleur 1.07B   68% NTSC
    Réponse 8 (Typ.)(G à G) ms
    Hauteur du pixel 0.372*0.372(mm)
    Carte mère UNITÉ CENTRALE 9U13
    Ram -
    Flash -
    O/S -
    Interface Audio/HDMI IN*2/USB/DP IN/DC IN
    Machine Apparence et structure Tôle
    Couleur Black
    Périphérique WIFI/Speaker*2
    Alimentation électrique AC100~230V
    Consommation électrique ≦120W
    Température de fonctionnement 0℃~50℃
    Température de stockage -20℃~60℃
    Méthode d'installation Suspension murale
    Poids net 35Kg
    Taille du corton 1575*165*560
    Number of boxes 1PCS/Corton
    Corton weight 40Kg

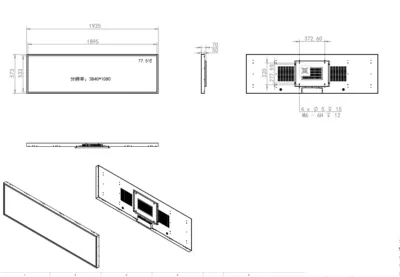

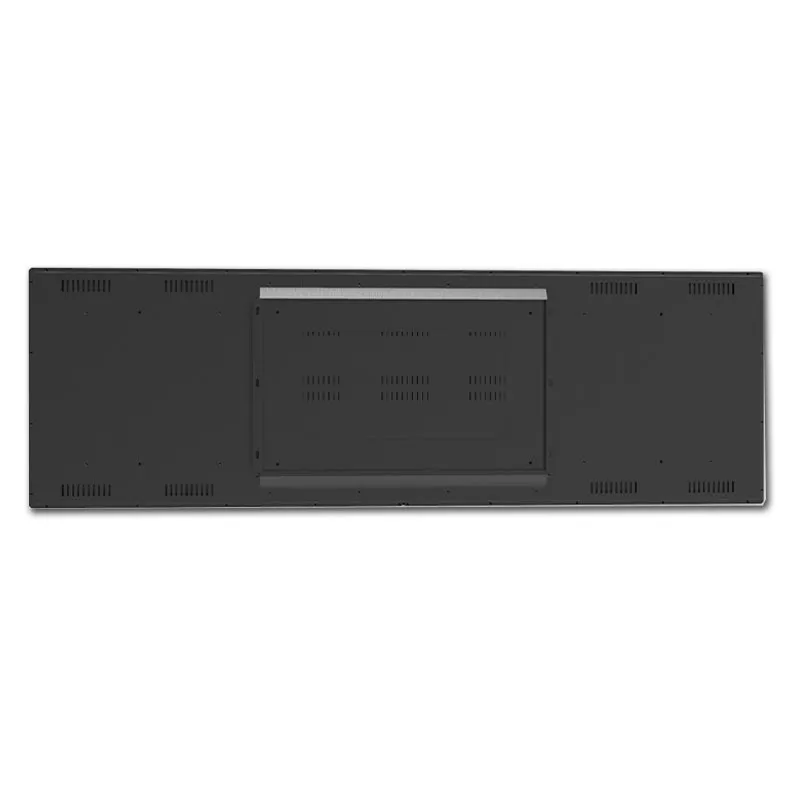

    Drawing and photo 77.5 inch Stretched Bar LCD Monitor

    77.5-Inch 3840 × 1080 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 77.5-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    The catalog mentions DisplayPort and HDMI. Send us your source model and OS or firmware version and ask us to confirm the role and wiring of each connection on the configuration you plan to order.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 3840 × 1080 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
