G070ACE-LH3 7 inch 800×480 IPS LCD High-Temp Robotics & EV Dashboards, -30°C~85°C Operation

UGS : DS50224
Taille :

Numéro de modèle

G070ACE-LH3

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Prise en charge de l'écran tactile :

Type d'affichage :

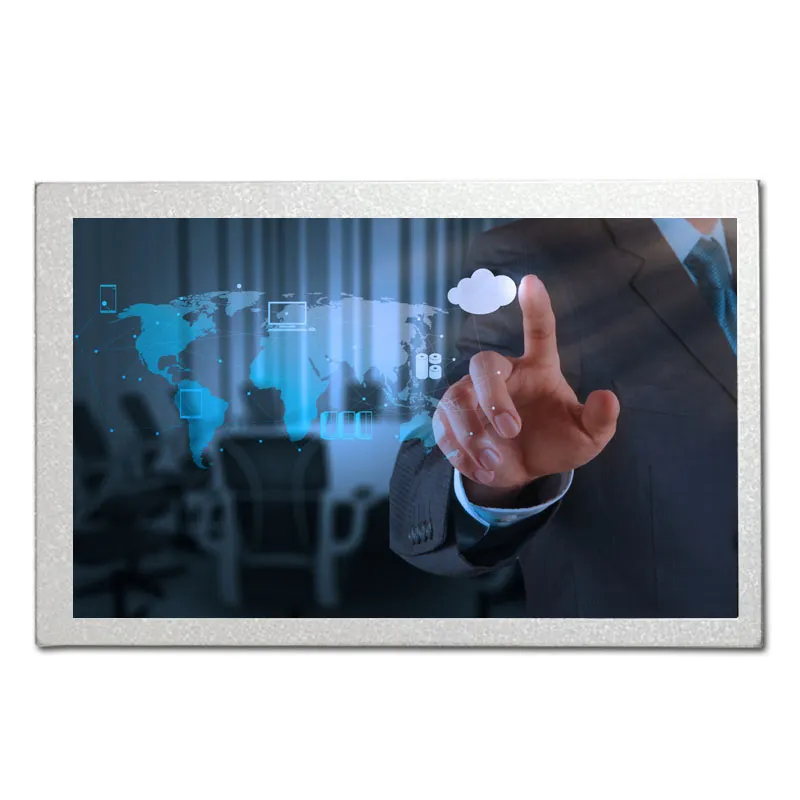

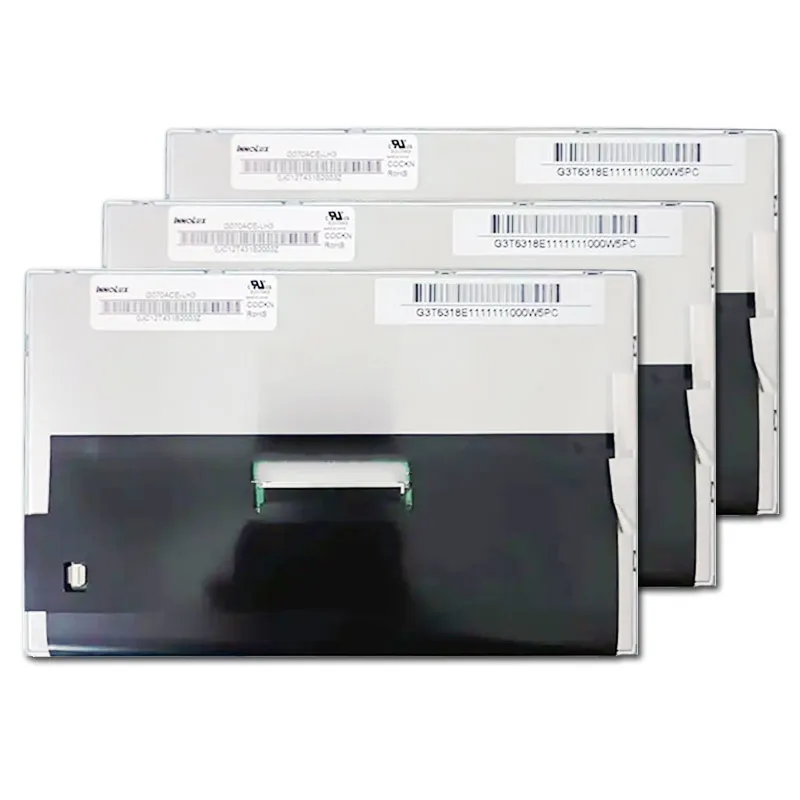

Innolux G070ACE-LH3  Space Warrior LCD: 165mm Ultra-Compact Frame for Robot Arms & EV Batteries, Surviving -30°C to 85°C Thermal Beasts.

Demande de tarification au volume







    Description

    G070ACE-LH3 General Desription

    Redefining space-critical applications, the Innolux G070ACE-LH3 packs industrial-grade performance into a slim 165×104×8.85mm footprint – 12% smaller than standard 7" displays – ideal for robotic arm control modules and EV battery management dashboards. The IPS panel maintains 89° quad-viewing angles even in 85°C engine bay diagnostics, with 500cd/m² brightness cutting through desert off-road vehicle dust clouds. LVDS interface ensures zero latency in electromagnetic-heavy environments like welding robot controllers, while 800:1 contrast reveals micro-crack details in foundry quality inspection systems. With 50,000-hour lifespan, it withstands 24/7 operation in molten salt reactor monitoring and vibrating grain dryer HMIs. The -30°C cold-start capability powers Arctic oil drilling telemetry, and 3.3V low power enables solar-powered wildfire tracking drones.



    Application & Performanc

    Designed for confined spaces and thermal extremes, this display drives autonomous forklift dashboards in 85°C warehouse zones and lithium battery pack monitoring in electric supercars. Its compact frame integrates into surgical robot arms for real-time 89° multi-angle imaging during procedures. Vibration resistance ensures stability on mining drill rigs and hypersonic wind tunnel test consoles. The extended thermal range supports cryogenic lab sample tracking (-30°C) and glass furnace control interfaces (85°C). LVDS reliability prevents signal loss in MRI machine control panels, while IP67-rated variants monitor offshore aquaculture cages in salt spray environments. Ideal for satellite test chamber HMIs and mobile artillery targeting systems requiring instant -30°C cold boot.

    7.0" Product Specifications

    Taille de la diagonale 7.0 inch
    Nombre de pixels 800×480
    Luminance 500
    Module Size 165×104×8.85
    Zone active 152.4×91.44
    Direction de visualisation IPS
    View Angle(U/D/R/L) 89/89/89/89
    Interface LVDS
    Rapport de contraste 800 : 1
    Température de fonctionnement -30~85℃
    Température de stockage -30~90℃
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G070ACE-LH3 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070ACE-LH3?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G070ACE-LH3?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G070ACE-LH3 compare with the AUO G070VAN01.1?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −30 °C to +85 °C for the Innolux panel and −20 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G070VAN01.1

    Is the Innolux G070ACE-LH3 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G070ACE-LH3

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
