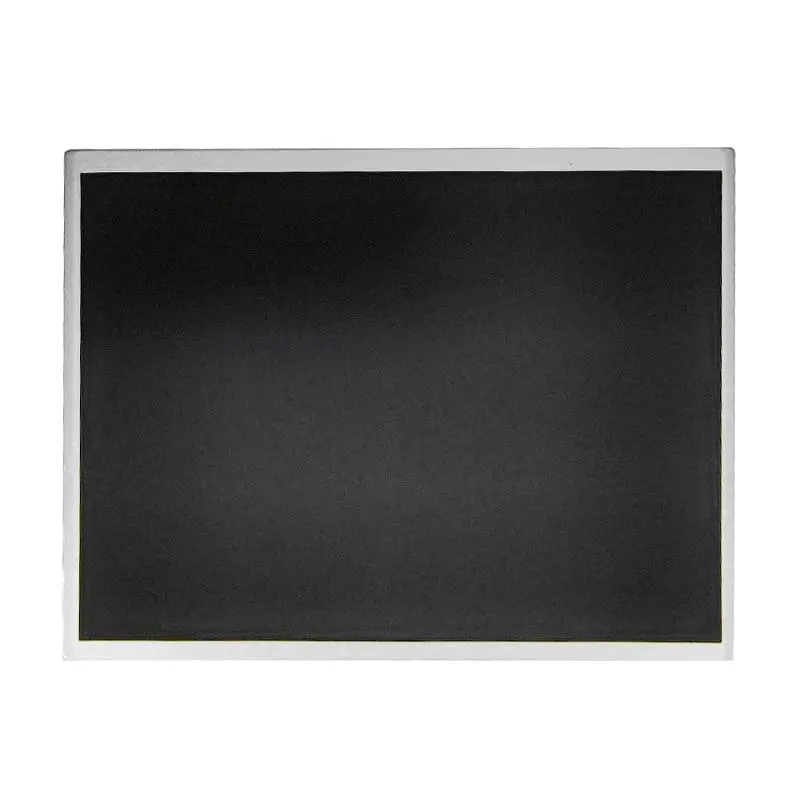

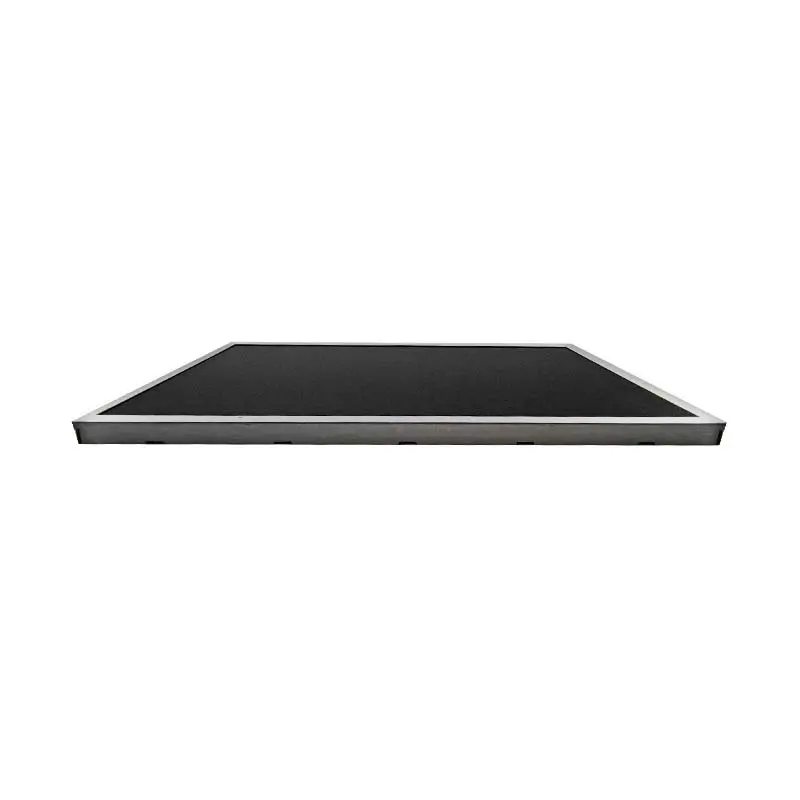

Innolux G104X1-L04 10.4 inch IPS LCD 500cd/m² Sunlight Readable, 1024×768 Resolution

UGS : DS50236
Taille :

Numéro de modèle

G104X1-L04

Résolution :

Interface :

Température de fonctionnement :

-0℃~50℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Innolux g104x1-l04 10.4 inch Industrial-Grade Display: 1024×768 Clarity, 80°C Heat Endurance Built for Extreme Environments.

Demande de tarification au volume







    Description

    G104X1-L04 General Desription

    The Innolux G104X1-L04 10.4-inch industrial IPS LCD sets new standards with 500cd/m² ultra-high brightness, delivering sunlight-readable performance for outdoor applications. Featuring 1024×768 XGA resolution and 1000:1 contrast ratio, it ensures razor-sharp details in petrochemical control panels and desert solar farms. Its IPS technology maintains 88° viewing angles across all directions, critical for collaborative robotic arms and emergency vehicle consoles. With expanded -30°C to 80°C operational range (storage: -30°C~80°C), this 3.3V LVDS-interface display withstands Arctic mining equipment and foundry furnace HMIs. The 225.5×176.3×9.2mm compact design integrates into ATEX-certified systems, while 30,000-hour LED lifespan ensures 24/7 reliability in port cranes and oil rig monitoring stations.



    Application & Performanc

    Engineered for extreme conditions, this display excels in offshore wind turbine controls, military field computers, and high-altitude railway signaling. The 500nit brightness pierces through desert glare for mining truck dashboards and airport runway status boards. IPS color consistency benefits aircraft maintenance diagnostics and color-critical food grading systems. LVDS stability prevents signal loss in electromagnetic-heavy environments like power substations and welding robots. Withstands rapid temperature swings in cryogenic storage monitors and steel mill interfaces. 9.2mm ruggedized frame resists vibration in construction machinery and armored vehicle systems. IP67 optional version available for marine navigation equipment and desertified agriculture controllers.

    10.4" Product Specifications

    Taille de la diagonale 10,4 pouces
    Nombre de pixels 1024×768
    Luminance 500
    Module Size 225.5×176.3×9.2
    Zone active 210.432×157.824
    Direction de visualisation IPS
    View Angle(U/D/R/L) 88/88/88/88
    Interface LVDS
    Rapport de contraste 1000 : 1
    Température de fonctionnement -30 ~ 80 °C
    Température de stockage -30 ~ 80 °C
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G104X1-L04 10.4-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G104X1-L04?

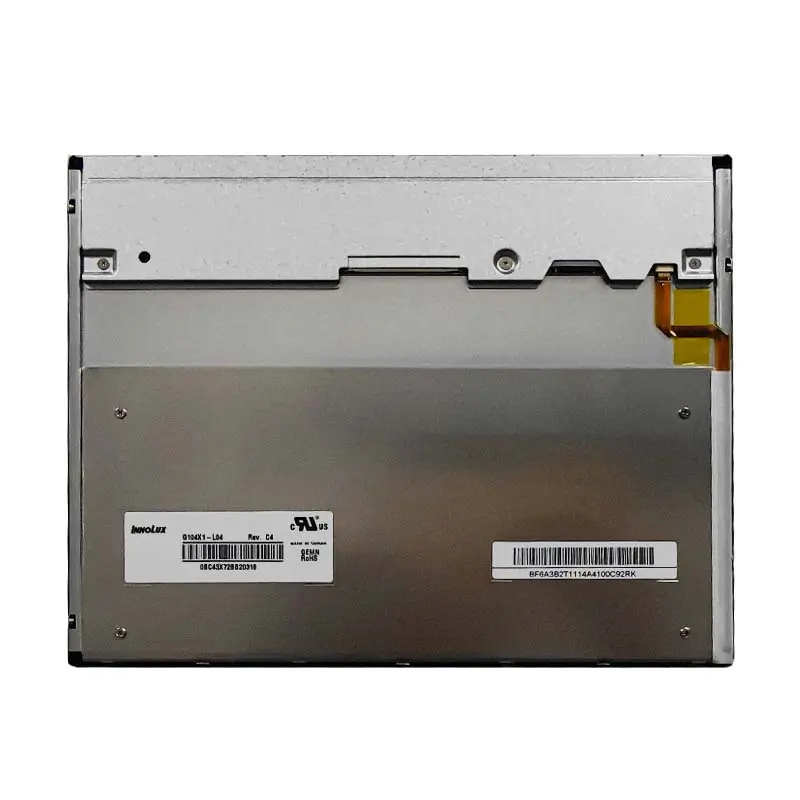

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G104X1-L04?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G104X1-L04 compare with the AUO G104XVN01.0?

    Both catalog listings show 10.4 inches, 1024 × 768 and LVDS. The catalog lists 500 cd/m² for the Innolux panel and 470 cd/m² for the AUO panel. Compare readability through the same cover at the intended viewing angle. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G104XVN01.0

    Is the Innolux G104X1-L04 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
