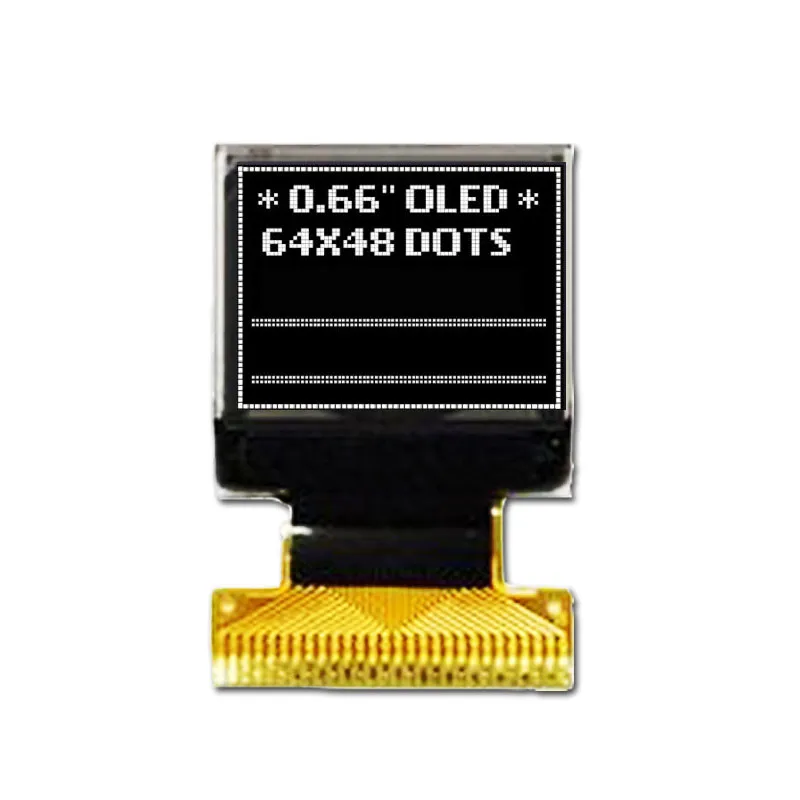

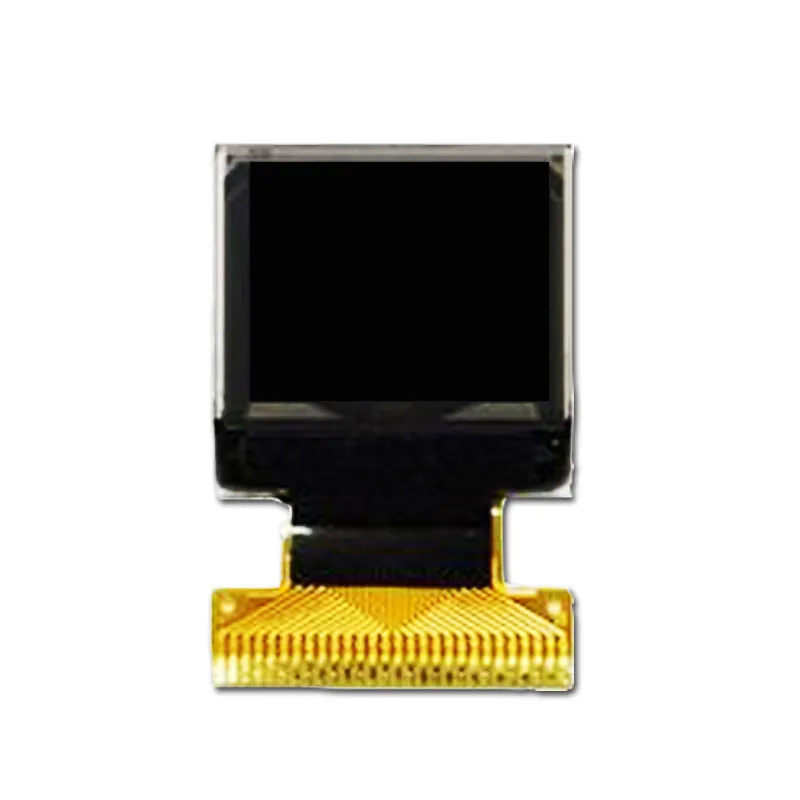

0.66 inch Small Size PMOLED 64x48 Pixels Energy-efficient

COD: DS10026
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

‐40℃~70℃

Luminosità (cd/m²):

200

Supporto per touchscreen:

Tipo di display:

0.66 inch Small Size PMOLED  Resolution 64*48 Pixels   SPI interface   ‐40℃~70℃ Operation Temperature  OLED display module

Richiesta di prezzi a volume







    Descrizione

    0.66" pmoled Displays Features

    The small size PMOLED (Passive Matrix Organic Light Emitting Diode) technology offers exceptional energy efficiency, making this display ideal for battery-operated devices by extending their operational life. Its SPI (Serial Peripheral Interface) simplifies connectivity with various microcontrollers and processors, streamlining the integration process and reducing development time. Designed to operate efficiently within a wide temperature range of -40°C to 70°C, this display is suitable for diverse environments, including outdoor and industrial applications. Additionally, its durability, with a storage temperature range of -40°C to 85°C, ensures reliable performance even in harsh conditions.



    0.66" pmoled Display Application

    The 0.66 inch small size PMOLED display is versatile and ideal for a range of applications, including wearable devices like smartwatches and fitness trackers that require energy efficiency. It's also suitable for portable electronics, where space and power efficiency are crucial, as well as for medical devices such as handheld diagnostic tools that demand clear and reliable functionality. In industrial controls, it works well in small control panels and monitoring devices that require durability and readability. Additionally, this display can be used in various consumer electronics, such as remote controls and gaming devices, and is applicable in automotive displays, fitting into dashboard systems that need compact and reliable visual outputs in diverse conditions.

    0.66" pmoled Display Product Specifications

    Dimensione LCD (pollici) 0.66(Diagonal)
    Numero di pixel 64*48
    Pixel Pitch(um) 81.6
    Dimensioni di massima (mm) 18.46× 29.6 ×1.45
    Area attiva (mm) 13.42 ×10.06(V)
    Tipo di display PMOLED
    Interfaccia SPI
    - -
    - -
    - -
    - -
    - -
    - -
    - -

    0.66" Pmoled Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    0.66-Inch 64 × 48 SPI PMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 0.66-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 64 × 48 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed PMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    ‐40℃~70℃

    Luminosità (cd/m²):

    200

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
