128*128 Low Power OLED Display with I2C Interface for Instrument Clusters

COD: DS10030
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

‐40℃~70℃

Luminosità (cd/m²):

200

Supporto per touchscreen:

Tipo di display:

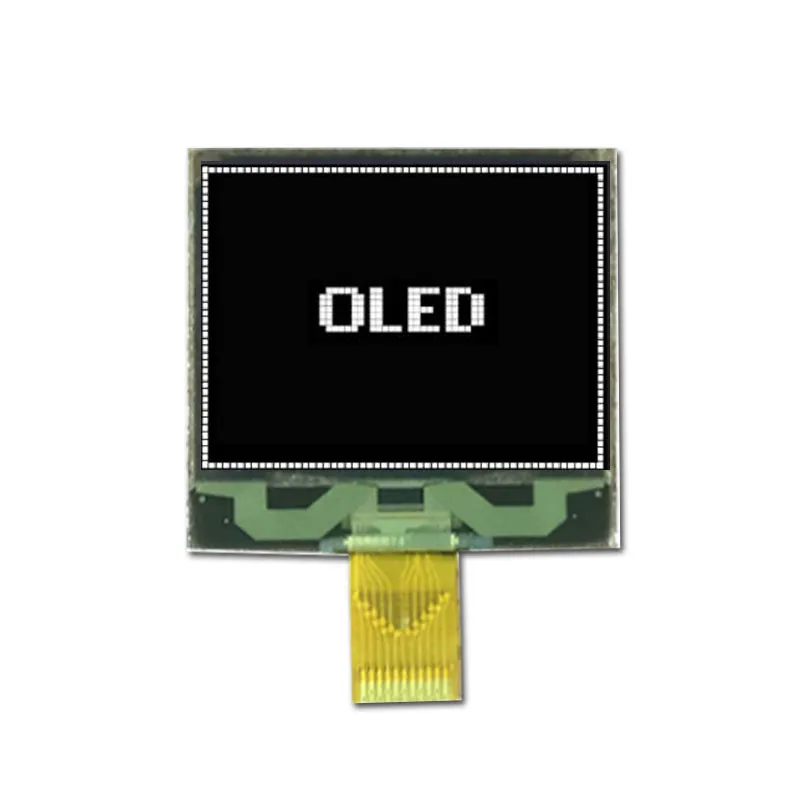

1.5 inch Low Power OLED Display  Resolution 128*128  IIC Interface  Operating Temperature ‐40℃~70℃  Application for smart door locks, instruments

Richiesta di prezzi a volume







    Descrizione

    1.5" pmoled Displays Features

    The 1.5 inch Low Power OLED Display is a compact and efficient visual solution designed for integration into small devices, featuring a diagonal size that allows for a sleek design without sacrificing functionality. With a resolution of 128 x 128 pixels, it provides crisp images and clear text, making it ideal for displaying essential information and user interfaces in smart devices. The display utilizes an IIC interface, ensuring straightforward connectivity with microcontrollers, which simplifies the integration process and reduces development time. Additionally, it operates effectively within a wide temperature range of -40℃ to 70℃, ensuring reliable performance in both indoor and outdoor applications, even in environments with significant temperature fluctuations.



    1.5" pmoled Display Application

    Ideal for use in smart door locks, where it can display status indicators and user prompts, as well as in various instruments that require a compact, low-power display for clear and immediate feedback.

    1.5" pmoled Display Product Specifications

    Dimensione LCD (pollici) 1.5(Diagonal)
    Numero di pixel 128*128
    Dimensioni di massima (mm) 60.5*47.22*2.027
    Area attiva (mm) 26.86*26.86
    Tipo di display PMOLED
    Interfaccia IIC
    Temperatura di esercizio ‐40℃~70℃
    Temperatura di stoccaggio ‐40℃~85℃
    - -
    - -
    - -
    - -
    - -
    - -

    1.5" Pmoled Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    1.5-Inch 128 × 128 I²C Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 1.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 128 × 128 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    ‐40℃~70℃

    Luminosità (cd/m²):

    200

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
