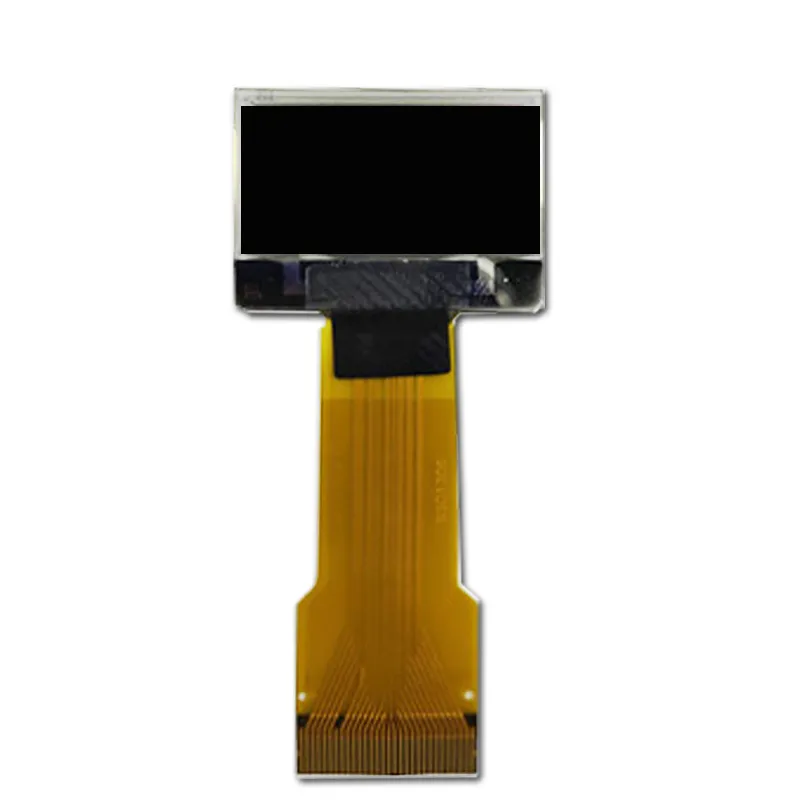

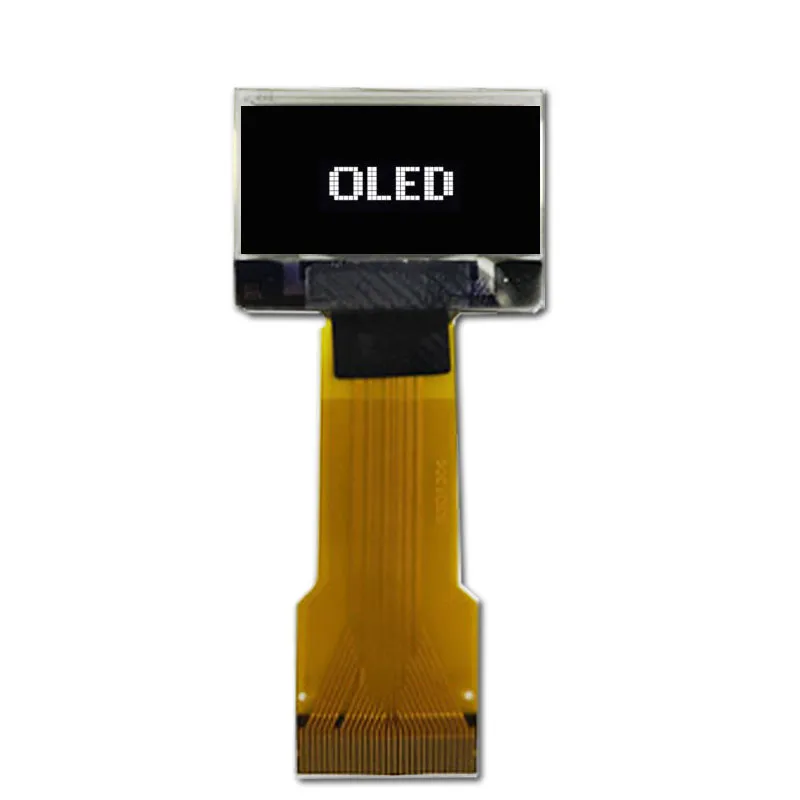

0.96 inch Small PMOLED Screen with Module Size 26.7*19.26*1.41

COD: DS10029
Dimensioni:

Risoluzione:

Interfaccia:

,

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

200

Supporto per touchscreen:

Tipo di display:

0.96 inch Small PMOLED Screen  Resolution 128*64  MCU/4SPI Interface   Operating Temperature ‐20℃~70℃  Application for blood Glucose Meter

Richiesta di prezzi a volume







    Descrizione

    0.96" pmoled Displays Features

    The 0.96 Inch Small PMOLED Screen is an ideal solution for small devices, featuring a compact diagonal size that allows for seamless integration without sacrificing functionality. With a resolution of 128 x 64 pixels, it provides clear images and text, making it suitable for displaying essential data such as blood glucose levels and trends. The display supports both MCU and 4SPI interfaces, offering flexible connectivity with various microcontrollers, which simplifies the integration process. Additionally, it operates effectively in a wide temperature range of -20℃ to 70℃, ensuring reliable performance in both indoor and outdoor environments, making it particularly advantageous for medical devices in diverse conditions.



    0.96" pmoled Display Application

    Tailored for use in blood glucose meters, the display enhances user experience by providing clear, real-time feedback on glucose levels, helping users manage their health effectively.

    0.96" pmoled Display Product Specifications

    Dimensione LCD (pollici) 0.96(Diagonal)
    Numero di pixel 128*64
    Dimensioni di massima (mm) 26.7*19.26*1.41
    Area attiva (mm) 21.744*10.864
    Tipo di display PMOLED
    Interfaccia MCU/4SPI
    Temperatura di esercizio ‐20℃~70℃
    Temperatura di stoccaggio ‐30℃~80℃
    - -
    - -
    - -
    - -
    - -
    - -

    0.96" Pmoled Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    0.96-Inch 128 × 64 SPI PMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 0.96-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 128 × 64 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed PMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
