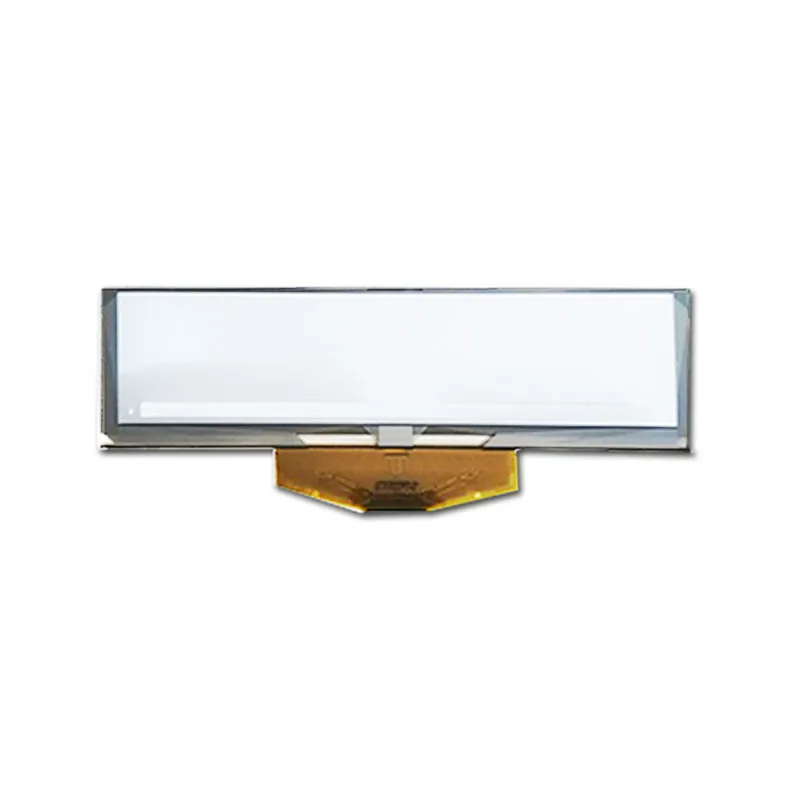

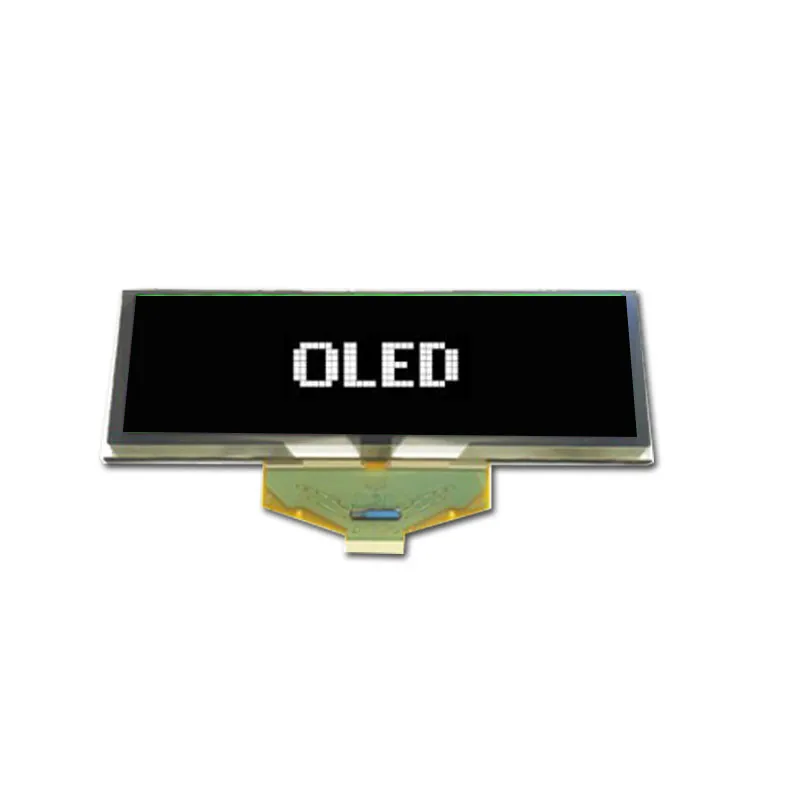

5.5 inch OLED Panel for Portable Devices

COD: DS10049
Dimensioni:

Risoluzione:

Interfaccia:

,

Temperatura di esercizio:

‐40℃~70℃

Luminosità (cd/m²):

200

Supporto per touchscreen:

Tipo di display:

5.5 inch OLED Panel  Resolution 256*64  IIC Interface  Operating Temperature ‐40℃~70℃  Application for Instruments, smart devices

Richiesta di prezzi a volume







    Descrizione

    5.5" pmoled Displays Features

    The 5.5 Inch OLED panel offers a large screen size that provides ample space for displaying detailed information and graphics, making it particularly advantageous for portable devices with a clear and extensive viewing area. Designed for low power consumption, this display is highly efficient, extending battery life and enabling longer operation without frequent recharging. Featuring an I2 C interface, it simplifies communication with various micro controllers and processors, ensuring straightforward and cost-effective integration. Additionally, the display's durable construction withstands daily use, maintaining performance/appearance over time despite regular handling/transportation.



    5.5" pmoled Display Application

    The 5.5 Inch OLED panel is versatile and ideal for a range of applications, including portable devices like handheld gaming consoles and portable medical tools, where its large screen size and high resolution allow for detailed information display. It is also suitable for wearable technology, offering a larger interface for notifications while extending battery life through low power consumption. In consumer electronics, such as smart home controllers and remote controls, the display enhances user experience with its clarity and durability.

    5.5" pmoled Display Product Specifications

    Dimensione LCD (pollici) 5.5(Diagonal)
    Numero di pixel 256*64
    Dimensioni di massima (mm) 145*65*2
    Area attiva (mm) 135.65*33.89
    Tipo di display PMOLED
    Interfaccia IIC
    Temperatura di esercizio ‐40℃~70℃
    Temperatura di stoccaggio ‐40℃~85℃
    - -
    - -
    - -
    - -
    - -
    - -

    5.5" Pmoled Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    5.5-Inch 256 × 64 Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 256 × 64 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    ,

    Temperatura di esercizio:

    ‐40℃~70℃

    Luminosità (cd/m²):

    200

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
