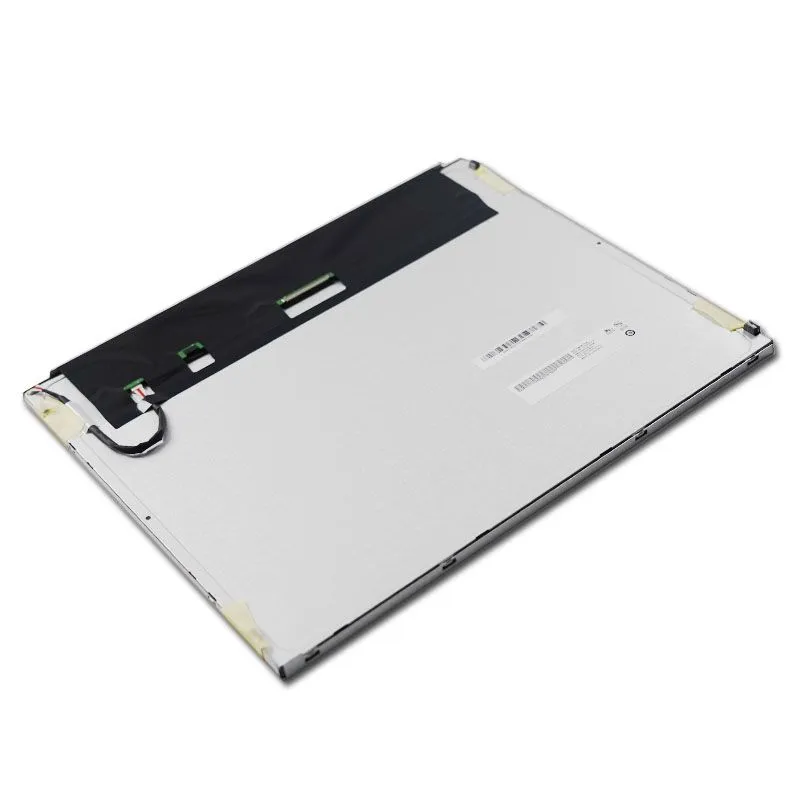

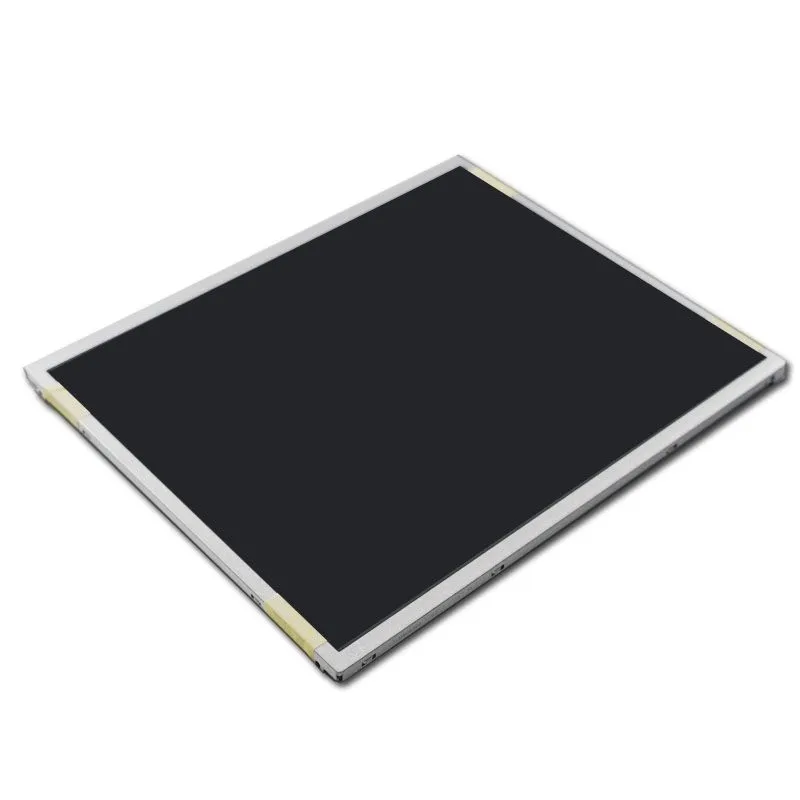

17 inch AUO G170EG01 V.1 Twisted Nematic Panel 1280*1024 Brightness 350cd/m²

COD: DS50042
Dimensioni:

Numero di modello

G170EG01 V.1

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

350

Temperatura di esercizio:

-30℃~ 85℃

Supporto per touchscreen:

Tipo di display:

Resources:

17 inch AUO G170EG01 V.1 Twisted Nematic Panel  offering Resolution 1280*1024  Brightness 350cd/m²  Operating Temperature from -30~85℃ Interface LVDS 30 pin  Stable supply  Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    AUO G170EG01 V.1 Key Features

    The 17-inch AUO G170EG01 V.1 Twisted Nematic Panel is designed for high-performance applications, featuring a resolution of 1280 x 1024 pixels that delivers sharp and clear visuals. With a brightness level of 350 cd/m², this panel ensures decent visibility in various lighting conditions, making it suitable for indoor and outdoor environments. It operates efficiently within an extensive temperature range of -30 to 85°C, providing reliable performance even in extreme conditions. The display utilizes a 30-pin LVDS interface, allowing for seamless integration into various systems and enhancing its versatility across multiple applications. As an original A-grade quality product with a stable supply, the G170EG01 V.1 is ideal for industrial automation, medical devices, and other demanding applications, ensuring durability and long-lasting performance.



    G170EG01 V.1 Application

    The 17-inch AUO G170EG01 V.1 Twisted Nematic Panel is highly versatile and ideal for a range of applications across various industries. Its resolution of 1280 x 1024 pixels and brightness of 350 cd/m² make it suitable for industrial automation, where clear visuals are critical for control panels and human-machine interfaces (HMIs). The panel’s wide operating temperature range of -30 to 85°C ensures reliable performance in harsh environments, making it perfect for outdoor displays and transportation applications. Additionally, its 30-pin LVDS interface allows for easy integration into consumer electronics, medical equipment, and other electronic systems, providing durability and consistent performance in applications that require high-quality display solutions. This makes the G170EG01 V.1 an excellent choice for sectors such as manufacturing, logistics, and healthcare.

    17.0" TFT-LCD Product Specifications

    Numero di modello G170EG01 V.1
    Dimensione 17.0
    Risoluzione 1280*1024
    Dimensione del contorno 358.5*296.5*18
    Area attiva 337.92*270.336
    Luminosità (cd/m²) 350
    Interfaccia LVDS
    Visualizza la direzione TN
    Temperatura di esercizio -30~85
    Temperatura di stoccaggio -30~85
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 800:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    17.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G170EG01 V.1 17-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G170EG01 V.1?

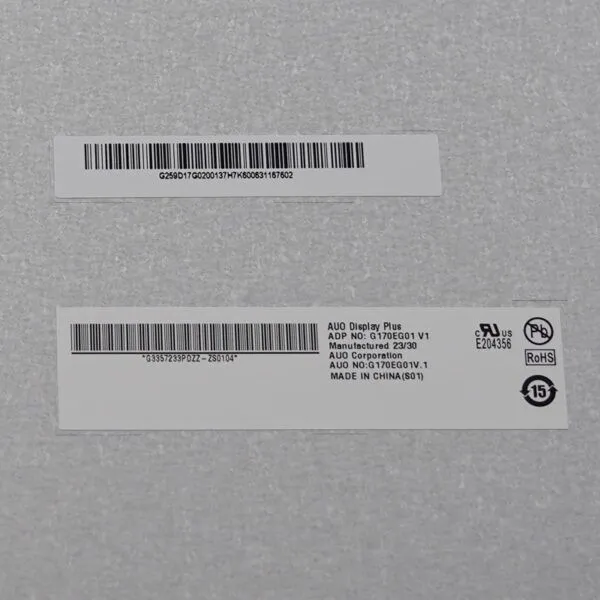

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 17-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G170EG01 V.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G170EG01 V.1 compare with the BOE DV170E0M-N10?

    Both catalog listings show 17 inches, 1280 × 1024 and LVDS. The catalog lists −30 °C to +85 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE DV170E0M-N10

    Is the AUO G170EG01 V.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G170EG01 V.1

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    350

    Temperatura di esercizio:

    -30℃~ 85℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
