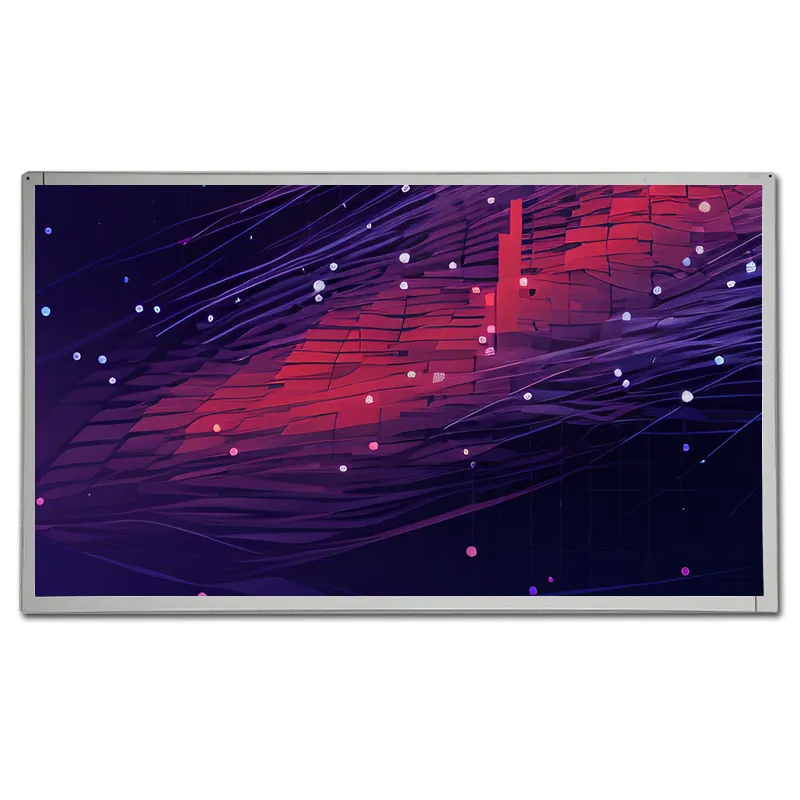

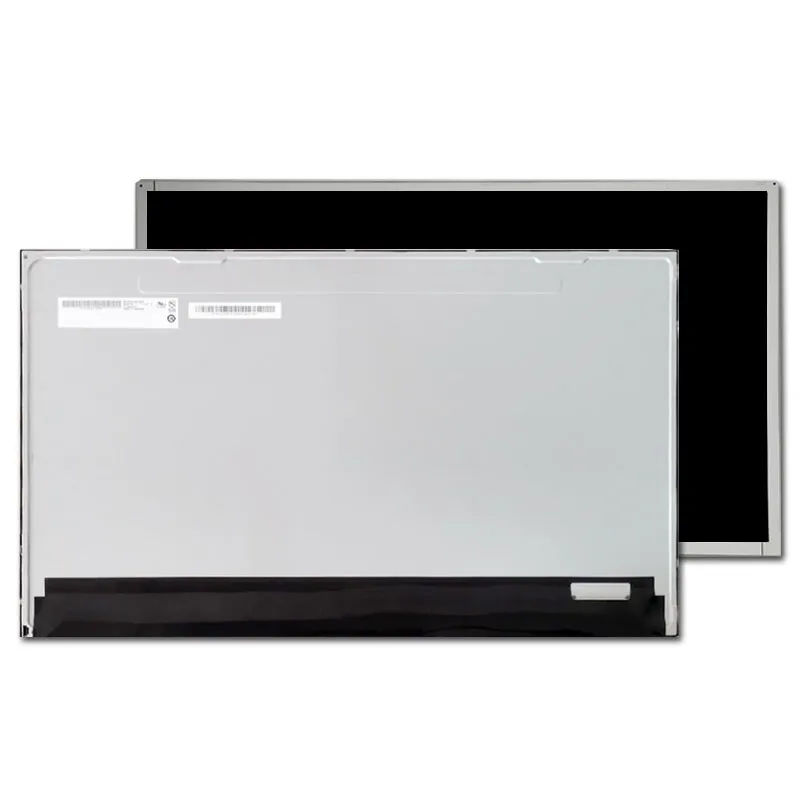

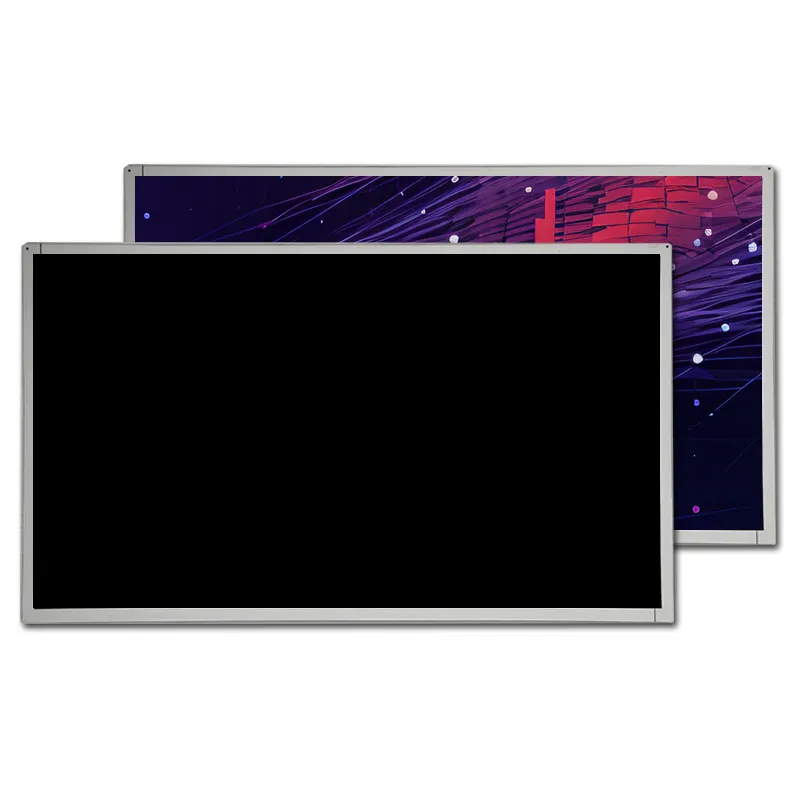

AUO G215HAN01.2 21.5" IPS LCD – 1920×1080, 350cd/m²,IPS Industrial LCD Display

COD: DS50056
Dimensioni:

Numero di modello

G215HAN01.2

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-0℃~60℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

Resources:

AUO G215HAN01.2 21.5" IPS LCD – 1920×1080, 350cd/m², wide-temperature (-0~60°C), LVDS interface, ultra-wide viewing angle industrial display.

Richiesta di prezzi a volume







    Descrizione

    G215HAN01.2 Key Features:

    The AUO G215HAN01.2 is a 21.5-inch IPS LCD engineered for demanding industrial and commercial applications. With Full HD 1920×1080 resolution and 350 cd/m² brightness, it delivers crystal-clear visuals even in bright environments. The IPS technology ensures 89°/89°/89°/89° ultra-wide viewing angles, maintaining color accuracy for multi-user control panels or public information displays. Built for reliability, it operates flawlessly across -0°C to 60°C and features a 50,000-hour LED lifespan for reduced maintenance in 24/7 operations. The LVDS interface provides stable signal transmission in high-interference industrial settings, while the 5V power supply simplifies integration with low-voltage systems. Its ultra-slim 11mm profile (497.6×292.2mm outline) allows space-efficient installation in compact HMIs or kiosks. With 1000:1 contrast ratio and anti-glare coating, it excels in high-precision imaging tasks and outdoor visibility.



    Applications & Performance:

    This display thrives in industrial control rooms, medical imaging, and retail digital signage. The 350cd/m² brightness ensures sunlight readability for outdoor payment terminals, EV charging stations, and factory floor dashboards. Its -0°C~60°C tolerance suits cold storage monitoring, desert solar farms, and heated manufacturing plants. The IPS panel’s wide viewing angles make it ideal for airport information boards, hospital diagnostic screens, and multi-user control panels. The Full HD resolution delivers sharp details for SCADA systems, security surveillance centers, and CAD/CAM design workstations. The LVDS interface resists EMI in CNC machines, robotic control systems, and power grid management. Applications also include rugged HMIs for logistics vehicles, military command displays, and automated production lines. With IPS color consistency and fast response times, it supports dynamic environments like traffic control hubs or interactive retail kiosks.

    21.5" TN LCD Product Specifications

    Numero di modello G215HAN01.2
    Dimensione 21.5
    Risoluzione 1920*1080
    Dimensione del contorno 497.6×292.2×11
    Area attiva 476.064×267.786
    Luminosità (cd/m²) 350
    Interfaccia LVDS
    Visualizza la direzione IPS
    Temperatura di esercizio -0~60
    Temperatura di stoccaggio -20~60
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1000:1
    Alimentazione 5.0V
    Tipo di display LCD a colori

    21.5" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G215HAN01.2 21.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G215HAN01.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 21.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G215HAN01.2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G215HAN01.2 compare with the BOE HR215WU1-120?

    Both catalog listings show 21.5 inches, 1920 × 1080 and LVDS. The catalog lists 0 °C to +60 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE HR215WU1-120

    Is the AUO G215HAN01.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
