Description

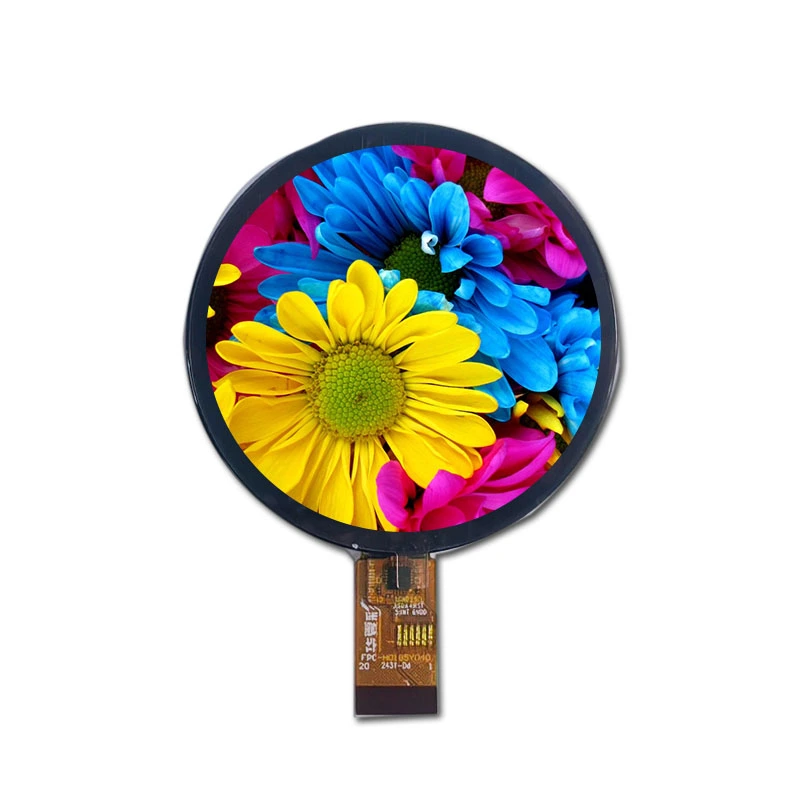

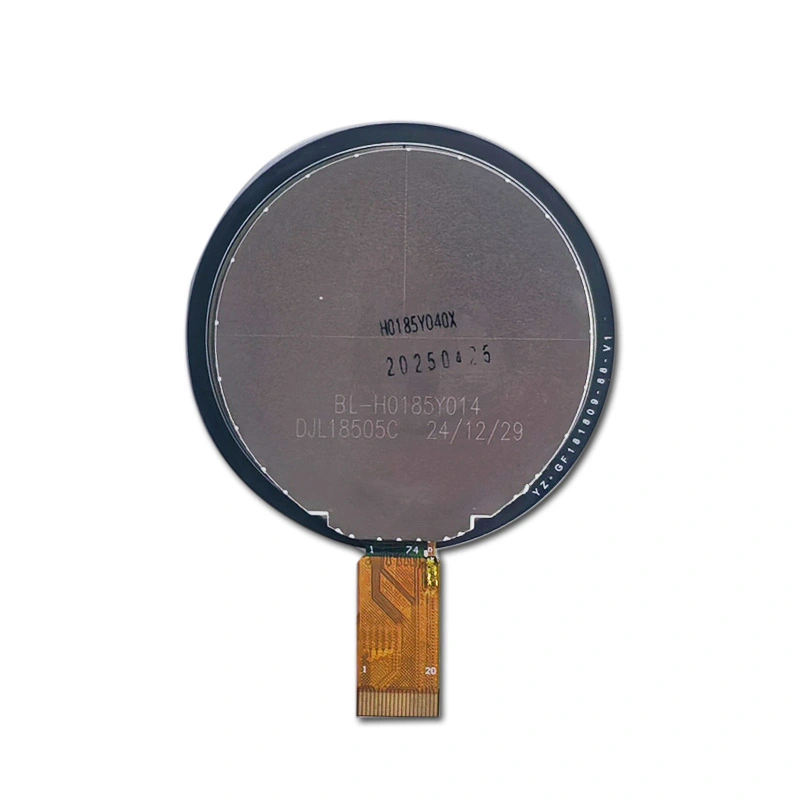

1.85″ Round LCD Display:
Sized between 1.6″ and 2.1″—a perfect fit for small appliances where 1.6″ feels too compact and 2.1″ too large, filling the gap in mid-sized displays.
Featuring 360×360 resolution and 178° wide viewing angles, it delivers crisp visuals from any angle. With an operating temperature range of -20°C to 70°C, it adapts to most environments, making it ideal for smart home appliances, industrial meters, and beyond.
Below are the basic parameters of this display. Based on this module structure, we can modify the flex cable interface, brightness, and cover size to ensure the product achieves seamless integration with your host driver board.
1.85″ Round TFT Display Specifications
| Model Number | H0185Y040XT040 V1 |
|---|---|
| Size | 1.85 |
| Resolution | 360*360 |
| Outline Dimension | 48.08*49.95*2.12 |
| Active Area | 45.68*45.68 |
| Brightness(cd/m²) | 400 |
| Interface | QSPI |
| View Direction | ALL |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 20000 |
| Touchscreen Support | Cover lens |
| Contrast Ratio | 1200:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
1.85″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
