Description

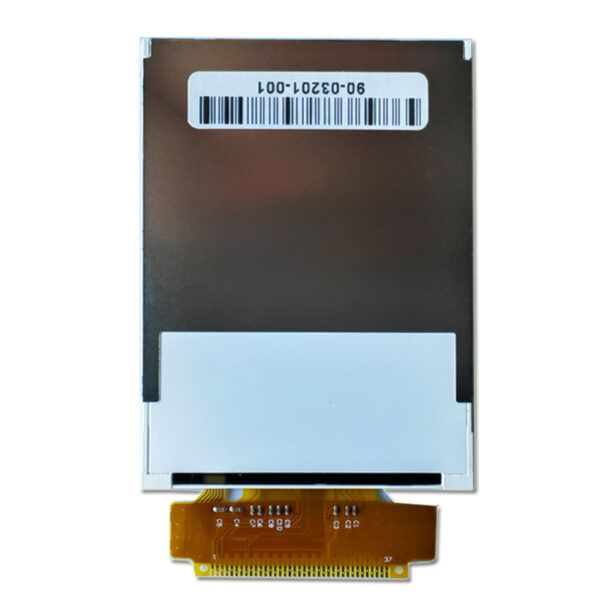

3.2" MCU TFT Display Screen
The TFT Display Screen module is designed to provide vibrant visuals with a resolution of 240x320 pixels. This module is ideal for a variety of applications, ensuring clear and sharp images that enhance user interaction. It is idea for embedded systems, including industrial control panels, home automation systems, and robotics, where real-time data display and reliable performance are vital
Main Features for this 3.2 inch MCU LCD Display

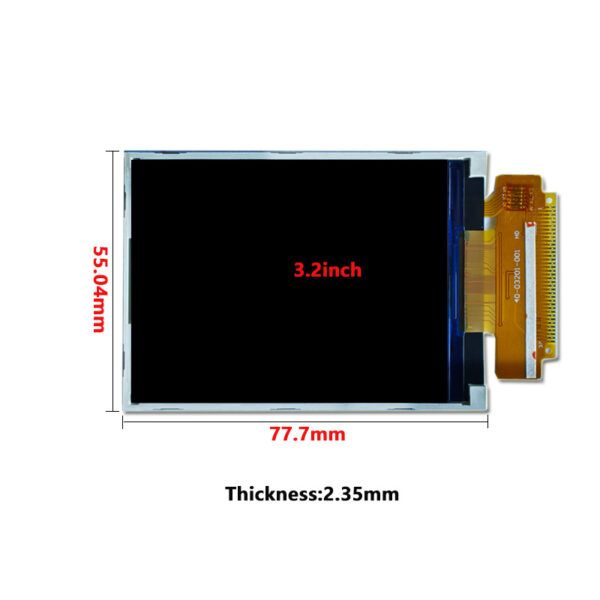

Measuring 48.6mm x 64.8mm, With overall dimensions of 55.04mm x 77.7mm x 2.35mm, within a temperature range of -20°C to 70°C and can be safely stored at temperatures from -30°C to 80°C, providing flexibility for different environments. Utilizing an MCU (Microcontroller Unit) interface, this display allows for seamless integration with microcontrollers, facilitating efficient data transfer and communication for enhanced performance in applications.
3.2" TFT-LCD Product Specifications
| Model Number | 90-03201-001 |
|---|---|
| Size | 3.2 |
| Resolution | 240*320 |
| Outline Dimension | 55.04*77.77*2.3 |
| Active Area | 46.8*64.8 |
| Brightness(cd/m²) | 300 |
| Interface | MCU |
| View Direction | 12 O"clock |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 20000 |
| Touchscreen Support | Without |
| Contrast Ratio | 500:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
3.2" TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
