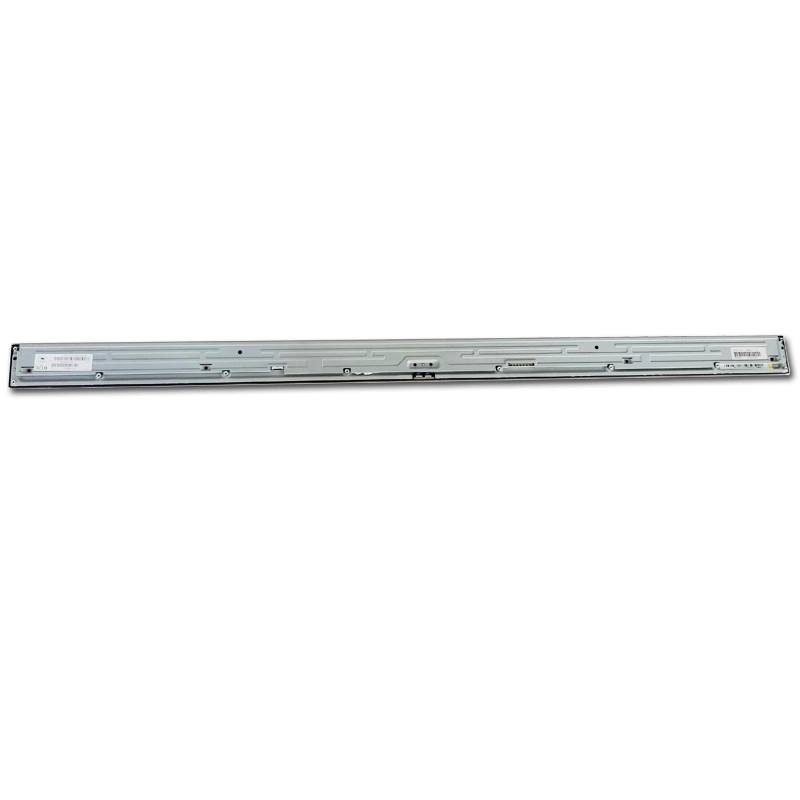

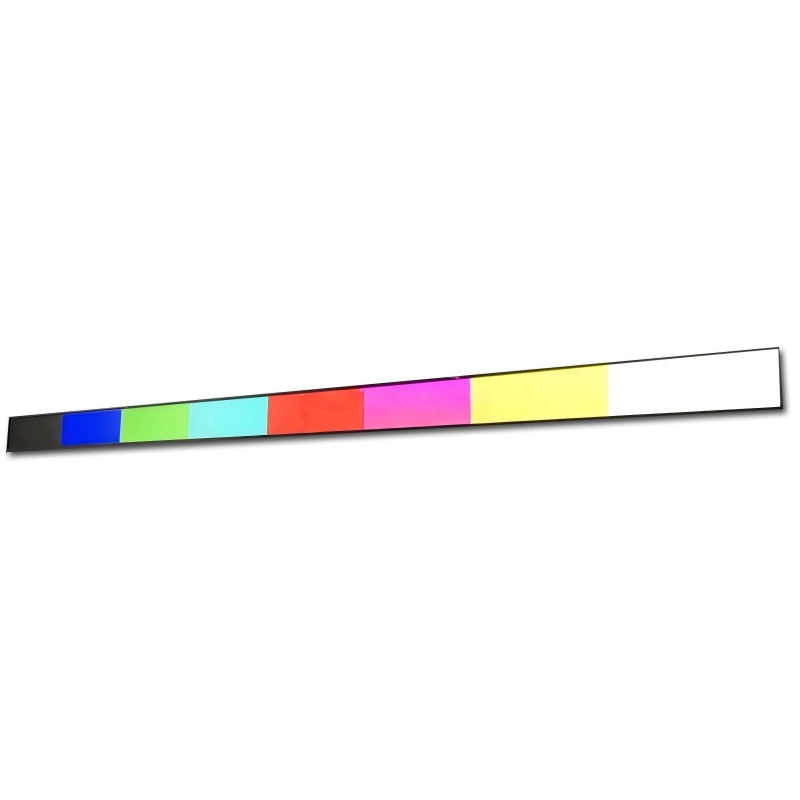

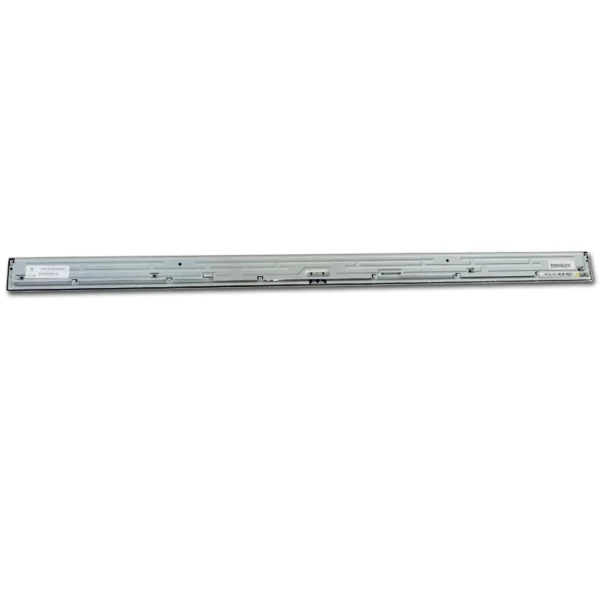

47” Long Stretched LCD Display 3840x160 for Shelf Advertising

Use the 47-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 3840 × 160 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

For the listed V-by-One interface, match lane configuration, connector pinout and link timing. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

Check for uneven illumination and cable strain after mounting. Use the listed 0 °C to +50 °C operating range to plan cold starts and hot running tests, with temperature measured at the panel. Test any intended rotation and dimming with the application running.

Send us the panel drawing or label, installed orientation, connector exit and controller model. Include the approved revision, any cover or touch requirement, forecast quantity and required date on the purchase specification.
