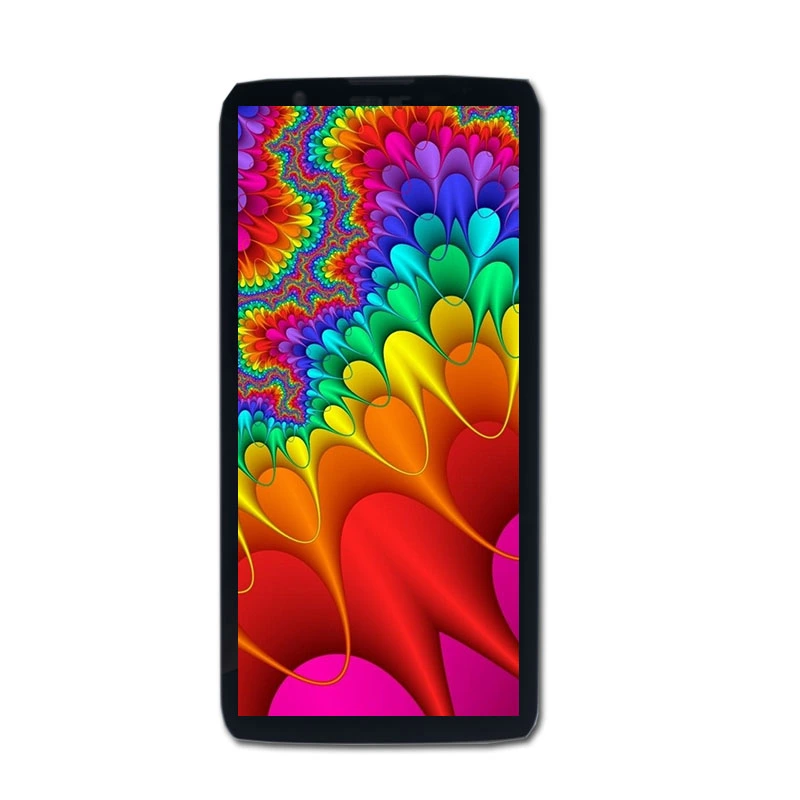

5.5 inch TFT Display with Incell Capacitive touch 720×1440

SKU: DS20286
Size:

Resolution:

Interface:

Operating Temperature:

-20℃~70℃

Brightness(cd/m²):

450

Touchscreen Support:

Display Type:

5.5 inch TFT Display Panel, 720×1440 high resolution, with capacitive touch screen, all-in one-black cover glass, idea for Industrial, HMI project

$99.00
Request Volume Pricing







    Description

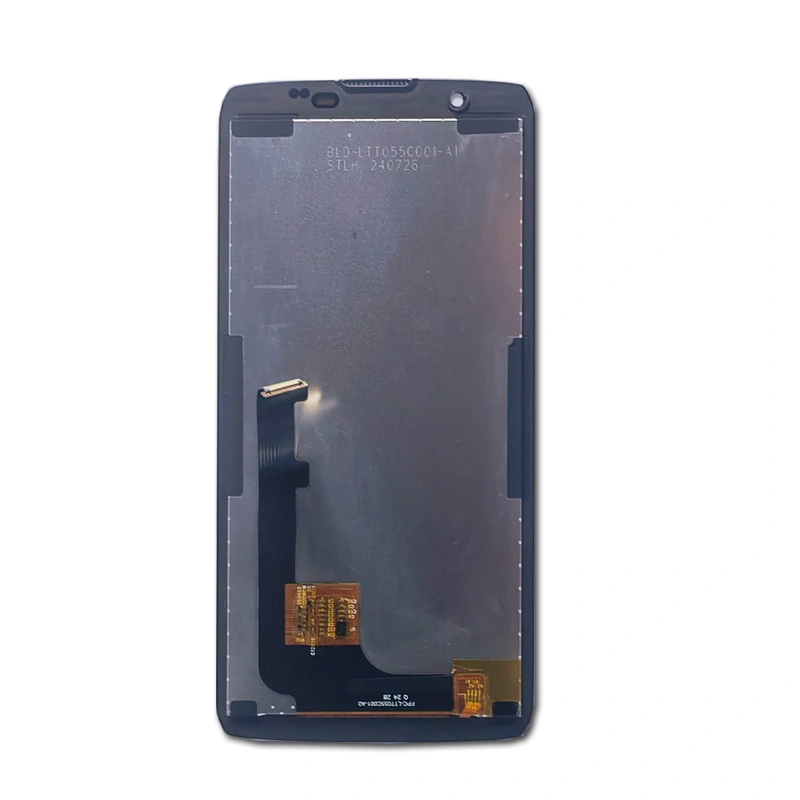

    5.5 inch TFT Display with In-cell Touch:

    ✅ 5.5 inch TFT Display Incell touch integration for precision and simplicity
    ✅Corning Gorilla Glass 3 cover: scratch-resistant and drop-tested
    ✅One-piece black design: minimalist aesthetics with a reflective black screen
    ✅Versatile applications: PDA, industrial, HMI systems

    Below are the basic parameters of this display. Based on this module structure, we can modify the flex cable interface, brightness, and cover size to ensure the product achieves seamless integration with your host driver board.

    5.5″ TFT Display Specifications

    Model Number BV055Y9Q-L10
    Size 5.5
    Resolution 720*1440
    Outline Dimension 63.88*129.18*3.24
    Active Area 61.88*123.77
    Brightness(cd/m²) 450
    Interface MIPI
    View Direction ALL
    Operating Temperature -20~70
    Storage Temperature -30~80
    LED Lifetime 20000
    Touchscreen Support Capacitive touch
    Contrast Ratio 1200:1
    Power Supply 3.3V
    Display Type Color LCD

    5.5″ TFT LCD Custom Solutions

    Optimize Your Cable Solutions

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    LCD Interface Customization

    Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

    Elevate User Experience with Touch Screen Technology

    Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

    custom touch

    Custom Cover Glass

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

    Additional information

    Size:

    Resolution:

    Interface:

    Operating Temperature:

    -20℃~70℃

    Brightness(cd/m²):

    450

    Touchscreen Support:

    Display Type:

    Custom Display Solutions

    Work with our engineering experts to create the perfect display for your application.
