Description
8.8 Inch High-Resolution MIPI Display with In-Cell Touch
This 8.8-inch LCD display module delivers exceptional visual clarity with a resolution of 1600×2560, making it ideal for applications that demand sharp image quality and fine detail rendering.
Equipped with a MIPI interface, the module ensures fast data transmission and seamless integration with modern embedded systems. The integrated In-Cell touch technology enhances responsiveness while maintaining a slim and lightweight structure.
Key Features
High Resolution (1600×2560) – Provides ultra-clear images and detailed visuals
In-Cell Touch Integration – Slim design with improved touch sensitivity
MIPI Interface – High-speed and stable signal transmission
400 nits Brightness – Suitable for indoor and controlled lighting environments
Operating Temperature: -10°C to 50°C – Reliable performance in various conditions

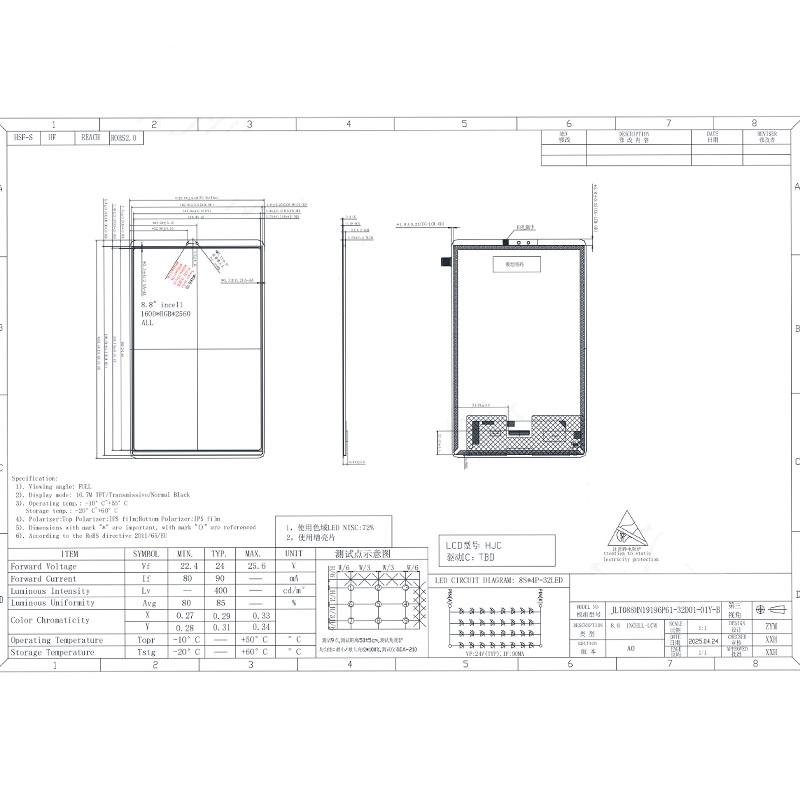

8.8 Inch LCD Display Specifications
| Model Number | JLT088MN19196P61-32D01-01Y-B |
|---|---|
| Size | 8.8 inch |
| Resolution | 1600*2560 |
| Outline Dimension | 125.96*205.04*2.58 |
| Active Area | 118.46*189.54 |
| Brightness(cd/m²) | 400 |
| Interface | MIPI |
| View Direction | IPS |
| Operating Temperature | -10~55 |
| Storage Temperature | -20~60 |
| LED Lifetime | 50000 |
| Touchscreen Support | With incell touch |
| Contrast Ratio | 1000:1 |
| Power Supply | 1.8V |
| Display Type | Color LCD |
8.8" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
