Description

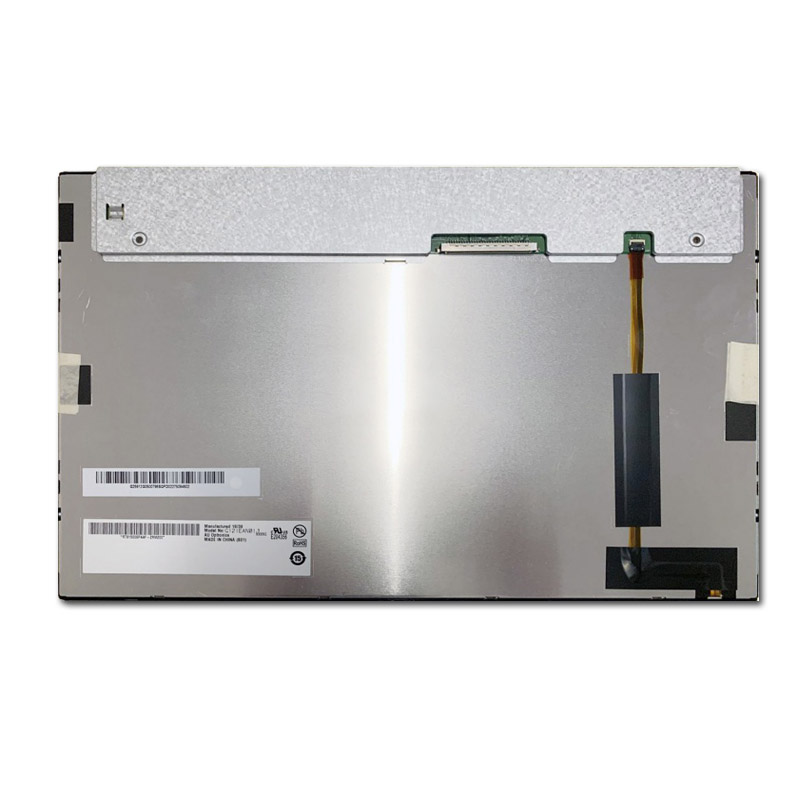

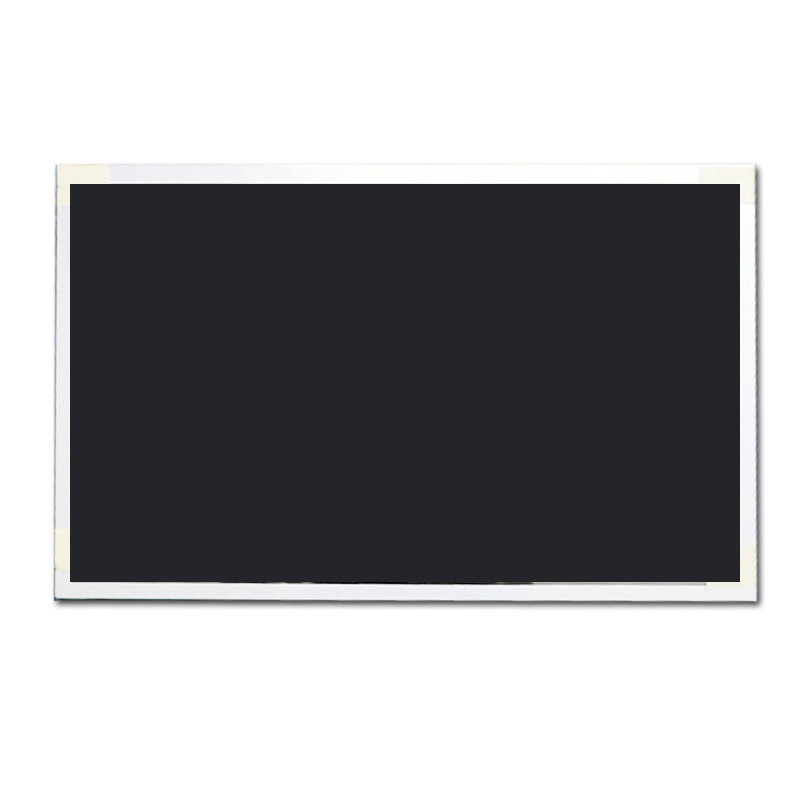

AU Optronics G121EAN01.1 TFT Panel General Desription
The AU Optronics G121EAN01.1 is a 12.1-inch a-Si TFT-LCD LCM with 1280×800 WXGA resolution (124 PPI, RGB vertical stripe), featuring a 261.12×163.2mm active area, 278×184×9.64mm outline size, and antiglare 3H hard-coated surface. It offers 400 cd/m² (Typ.) brightness, 1000:1 (Typ.) contrast, 89/89/89/89 wide viewing angles (CR≥10), AHVA normally black transmissive mode, 25ms (Typ.) response time, and 262K/16.2M colors (99% sRGB). Equipped with a 50K-hour WLED backlight (with driver), it supports 60Hz refresh (up to 240Hz via MEMC), weighs max 480g, uses a 30-pin LVDS interface (3.3V input), and operates/stores at -30~85°C, designed for industrial and healthcare applications.
Buy it now!
1-With a -30°C to 85°C wide temperature range (operating/storage), it maintains stable performance in extreme heat, cold, or fluctuating climates, making it ideal for rugged industrial equipment, outdoor signage, and mobile applications..
2-Reliable inventory and on-time delivery to support your production schedules,Expert technical guidance and customized solutions to meet your specific requirements
G121EAN01.1 Product Specifications
| Diagonal Size | 12.1″(Diagonal) |
|---|---|
| Pixel Number | 1280×800 Pixels |
| Luminance | 400 |
| Module Size | 278(W)×184(H) ×9.64(D) |
| Active Area | 261.12(W)×163.2(H) |
| Viewing Direction | ALL |
| View Angle(U/D/R/L) | 89/89/89/89 |
| Interface | LVDS |
| Contrast Ratio | 800 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
