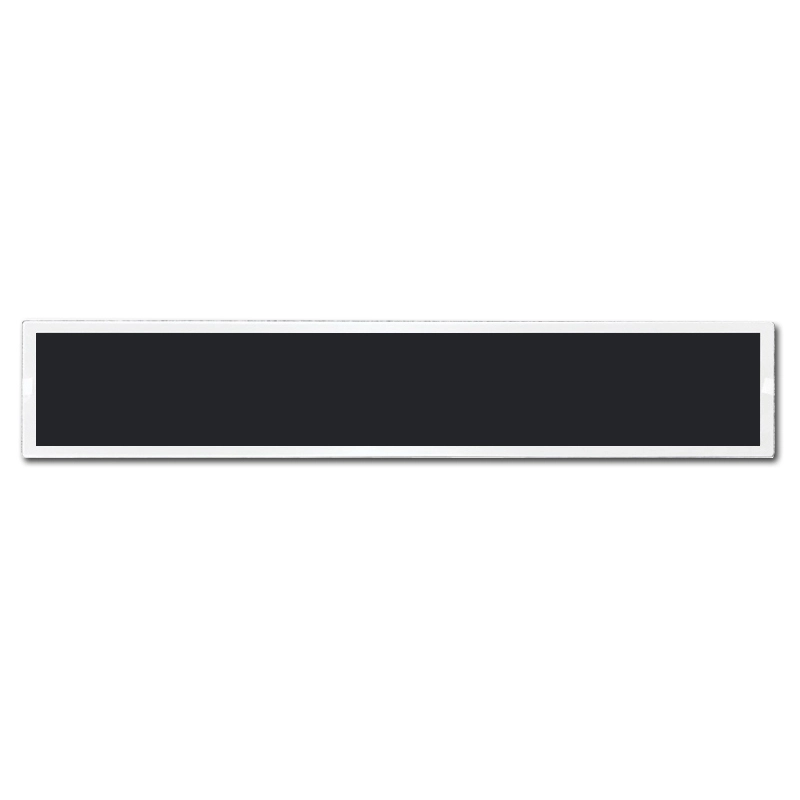

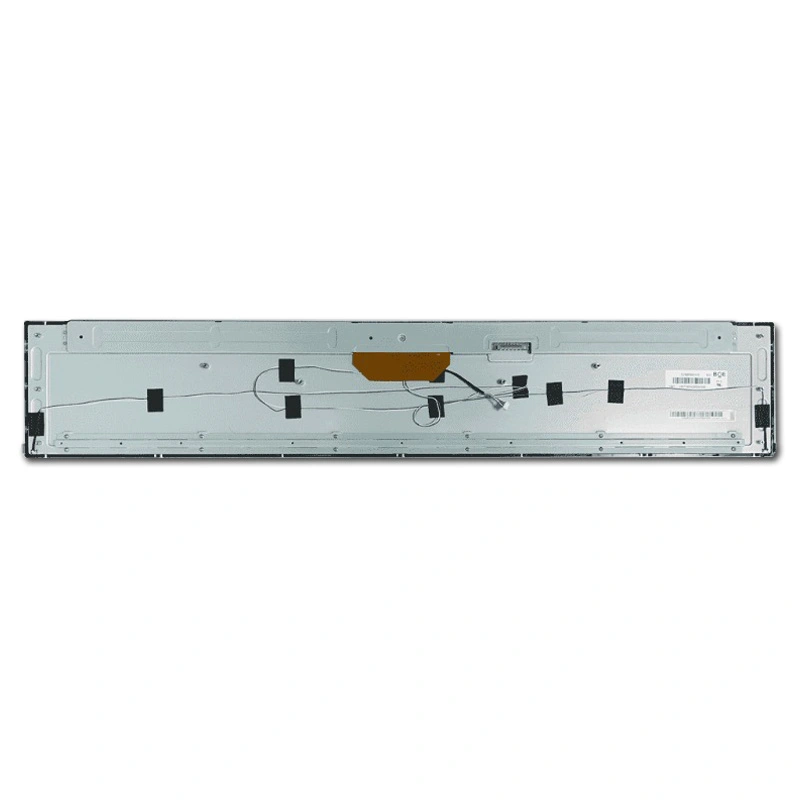

DV366FBM-N10 BOE LCD Screen 36.6 inch 1920×290 Bar Type

SKU: DS50292
Size:

Resolution:

Interface:

Operating Temperature:

-0℃~50℃

Brightness(cd/m²):

700

Touchscreen Support:

Display Type:

DV366FBM-N10 BOE LCD Screen, 36.6 inch, 1920×290, 89/89/89/89 IPS Screen, LVDS interface, 700 nits Sunlight readable for outdoor advertising.

$99.00
Request Volume Pricing







    Description

    DV366FBM-N10 BOE LCD Screen Description

    BOE 36.6-inch Ultra-Wide LCD Strip Panel

    Engineered for reliability, this BOE panel delivers stable performance with 700-nit brightness and IPS full-view technology, ensuring consistent visuals from any angle. Equipped with LVDS for secure signal transmission, it is ideally suited for transportation applications such as:

    Train interior information displays
    Subway station route indicators
    Bus passenger notification systems

    The ultra-wide format and rugged design make it a trusted choice for mission-critical transit environments requiring 24/7 operation.

    36.6″ TFT Display Specifications

    Model Number DV366FBM-N10
    Size 36.6
    Resolution 1920*290
    Outline Dimension 960*174.35*16.9
    Active Area 919.3*138.85
    Brightness(cd/m²) 700
    Interface LVDS
    View Direction ALL
    Operating Temperature -0~50
    Storage Temperature -20~60
    LED Lifetime 50000
    Touchscreen Support No
    Contrast Ratio 1200:1
    Power Supply 3.3V
    Display Type Color LCD

    36.6″ TFT LCD Custom Solutions

    Optimize Your Cable Solutions

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    LCD Interface Customization

    Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

    Elevate User Experience with Touch Screen Technology

    Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

    custom touch

    Custom Cover Glass

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

    Additional information

    Size:

    Resolution:

    Interface:

    Operating Temperature:

    -0℃~50℃

    Brightness(cd/m²):

    700

    Touchscreen Support:

    Display Type:

    Custom Display Solutions

    Work with our engineering experts to create the perfect display for your application.
