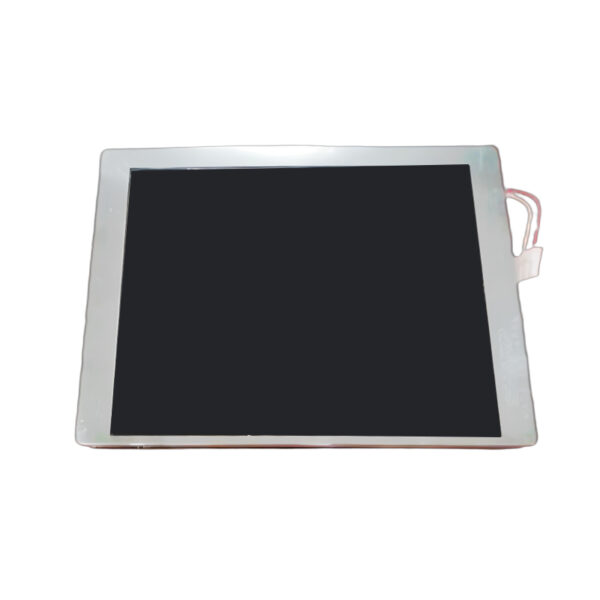

Innolux G070ACE-LH2 TFT Screen General Desription
Innolux G070ACE-LH2 7-inch TFT-LCD Panel: Features 800×480 WVGA resolution (133 PPI, RGB vertical stripe), 152.4×91.44mm active area, and 170×110×9.35mm outline with antiglare/hard coating (3H); offers 500 cd/m² brightness, 800:1 contrast ratio, AAS normally black transmissive mode, and 89°/89°/89°/89° wide viewing angles (CR≥10). Supports 60Hz refresh rate with MEMC for 120Hz/240Hz compatibility, 262K/16.7M color depth, 13/12ms response time, and 50K-hour WLED backlight (with driver). It uses LVDS (1 ch, 6/8-bit, 30-pin) interface, 3.3V input, and suits industrial applications with -30~85°C operation (-40~90°C storage), no touchscreen(Can be customized).
Why choose us？
1）Quality Guarantee: Original A-grade Innolux lcd.
2）Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
3）Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.
7″ Product Specifications
| Diagonal Size | 7 inch |
|---|---|
| Pixel Number | 800×480 |
| Luminance | 500 |
| Module Size | 170×110×9.35 |
| Active Area | 154.4×91.44 |
| Viewing Direction | IPS |
| View Angle(U/D/R/L) | 89/89/89/89 |
| Interface | LVDS 30 |
| Contrast Ratio | 800 : 1 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 90 °C |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Power Supply | 3.3V |
| Display Type | Color TFT |
Innolux G070ACE-LH2 Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
