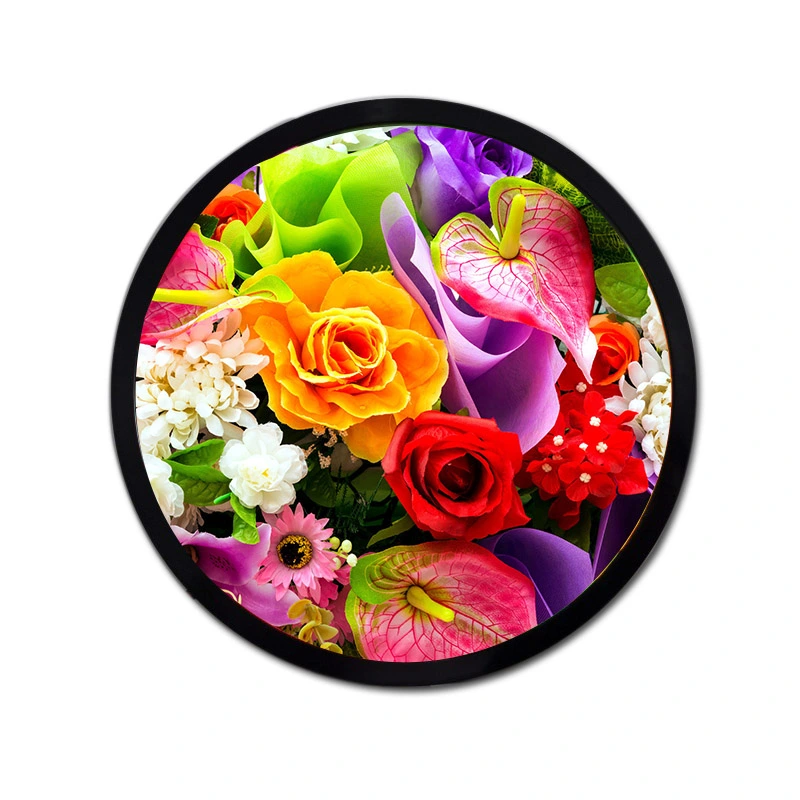

Round TFT Display Large Size 23.6 inch BOE DV236FBM-N00

Use the 23.6-inch diagonal to shortlist round displays, then check the exact drawing for fit. Make a mask from the active circle and bezel drawing. Try your dial, long labels and controls with the mask applied on a 1280 × 1280 canvas before committing to the enclosure.

For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check orientation and any address-window offsets in the initialization code, then show a marked test grid to verify the center and edge alignment.

Compare the visible arc, text clipping, module clearance and flex routing for both approaches. Use the listed 1500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. A mock-up with your longest labels will show how much of the nominal screen you can actually use.

Check that the artwork and bezel remain concentric, the outer text stays visible and the flex is clear of the mount. The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote.

Send us the approved module and bezel drawings, flex position and any touch or cover version. Save the orientation and initialization settings alongside the sample revision and quote reference.
