Description
ZJ050NA-08C General Desription

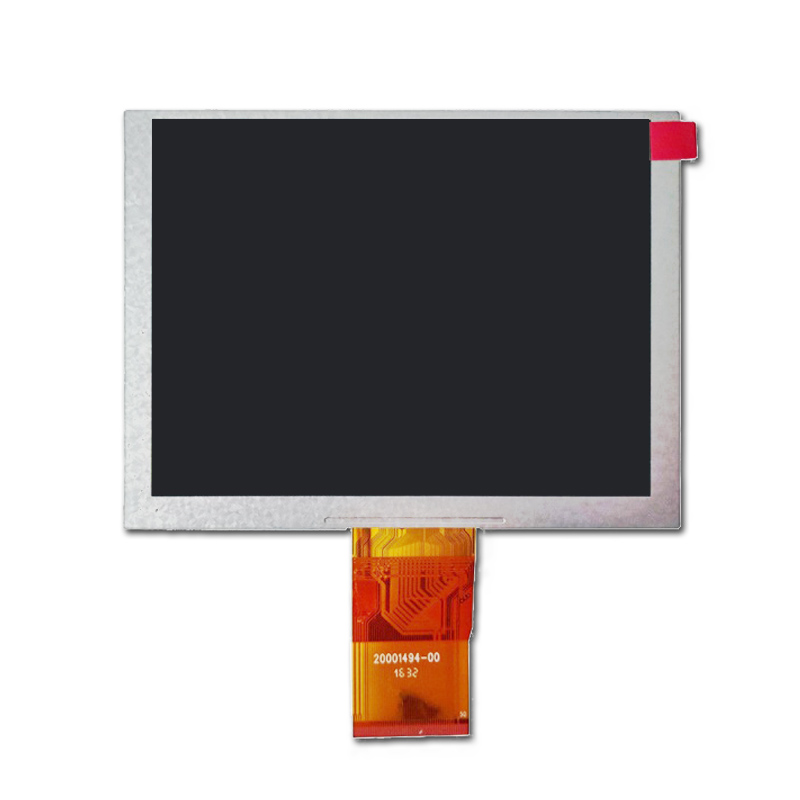

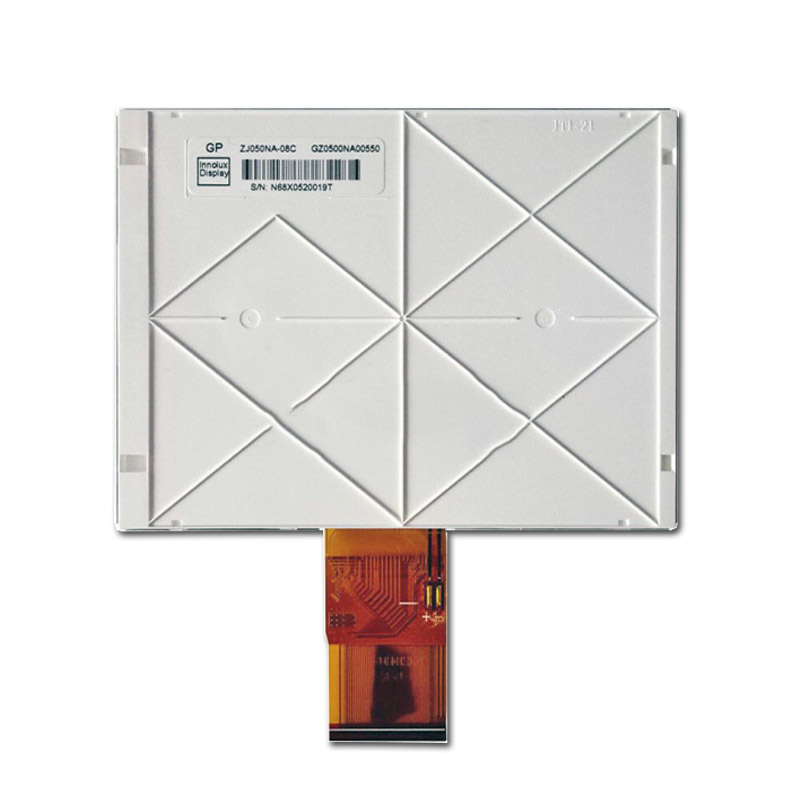

The Innolux NZJ050NA-08C is a 5 inch a-Si TFT-LCD module with an antiglare surface. It features a VGA resolution of 640×480 (159PPI) with an RGB vertical stripe pixel format, a 250 cd/m² typical brightness, and a 500:1 contrast ratio. The display offers a 70°/70°/50°/70° viewing angle (left/right/up/down, CR≥10) in a TN, supporting 16.7 million colors (50% NTSC gamut) with a response time of 10/15ms (Tr/Td). Powered by a WLED backlight with a 15,000-hour lifespan and no integrated driver, it connects via an 8-bit single-channel parallel RGB interface with a 50-pin FPC cable, requiring input voltages of 3.3V (DVDD), 10.4V (AVDD), 17.0V (VGH), and -7.0V (VGL), this 67g panel is ideal for applications like digital photo frames, video door phones, and VOIP phones, with an operating temperature range of -20°C to 70°C and a storage range of -30°C to 80°C.
Why choose us？
1）Innolux A-grade NZJ050NA-08C, original package. Quality guarantee
2）Compared with the original manufacturer, we offer more flexible minimum order quantities. Whether you need just 1 unit for testing or require small-batch trial production, we can fulfill your order.
3）Whether you’re purchasing retail items or in small batches, we provide stockpiling prices. Of course, the larger the quantity you order, the more favorable the price will be.
5″ Product Specifications
| Diagonal Size | 5 inch |
|---|---|
| Pixel Number | 640×480 |
| Luminance | 250 |
| Module Size | 117.65×88.43×5.9 |
| Active Area | 101.76×76.32 |
| Viewing Direction | TN |
| View Angle(U/D/R/L) | 70/70/50/70 |
| Interface | RGB |
| Contrast Ratio | 500 : 1 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| LED Lifetime | 15000 |
| Touchscreen Support | Without |
| Power Supply | 3.3V |
| Display Type | Color TFT |
Innolux LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
