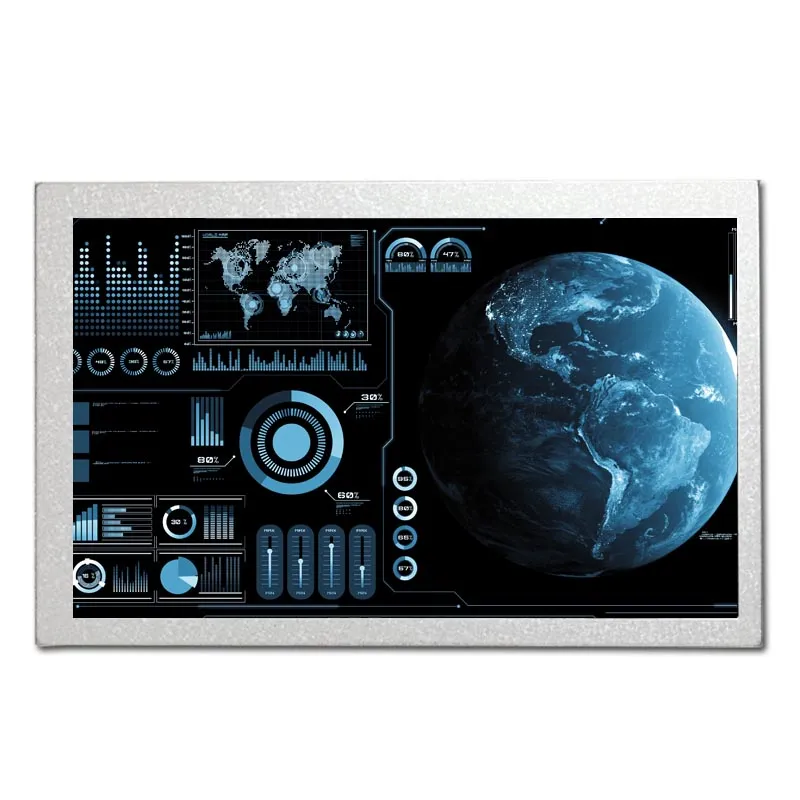

G070ACE-LH1 7 inch LCD – 1000cd/m² Sunlight Visibility, -30°C~80°C Survival

UGS : DS50222
Taille :

Numéro de modèle

G070ACE-LH1

Résolution :

Interface :

Température de fonctionnement :

-30℃~80℃

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Innolux G070ACE-LH1 Industrial Sunscreen LCD: 2X Brightness of Standard Displays for Offshore Oil/Gas Control Panels.

Demande de tarification au volume







    Description

    G070ACE-LH1 General Desription

    Redefining outdoor visibility, the G070ACE-LH1 delivers 1000cd/m² brightness – double standard industrial displays – enabling crisp readability in direct desert sunlight or arctic glare. Its IPS panel achieves quad 89° viewing angles with 800:1 contrast, critical for color-critical operations like offshore oil spill monitoring. Built for thermal extremes, it cold-starts at -30°C for Siberian pipeline controls and withstands 80°C in steel mill furnace HMIs. The LVDS interface maintains signal integrity in high-EMI environments like mining explosion-proof systems. With 50,000-hour lifespan (5.7 years non-stop), it’s ideal for unmanned lighthouse displays and Mars rover prototype dashboards. The 8.85mm slim rugged profile survives 20G shocks in armored vehicle systems, while 3.3V low-power design extends runtime in solar-powered wildfire monitoring drones.



    Application & Performanc

    Engineered for Earth’s harshest frontiers, this display powers volcanic monitoring station HMIs with 1000cd/m² to cut through ash clouds, and arctic oil rig control panels requiring -30°C cold starts. The ultra-bright IPS screen enables daylight visibility in open-cast mine blasting controllers and tropical storm tracking systems aboard research vessels. Quad 89° viewing angles allow multi-crew coordination on icebreaker bridge consoles and collaborative diagnostics in mobile field hospitals. LVDS reliability ensures stable imaging in electromagnetic-heavy environments like railway traction substations. Its 80°C tolerance suits cement kiln control interfaces, while IP69K-rated variants monitor high-pressure washdown zones in food processing plants. Ideal for UV-intensive alpine rescue equipment and vibrating desert ore conveyors.

    7.0" Product Specifications

    Taille de la diagonale 7.0 inch
    Nombre de pixels 800×480
    Luminance 1000
    Module Size 170×110×8.85
    Zone active 152.4×91.44
    Direction de visualisation IPS
    View Angle(U/D/R/L) 89/89/89/89
    Interface LVDS
    Rapport de contraste 800 : 1
    Température de fonctionnement -30~80℃
    Température de stockage -30~85℃
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G070ACE-LH1 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070ACE-LH1?

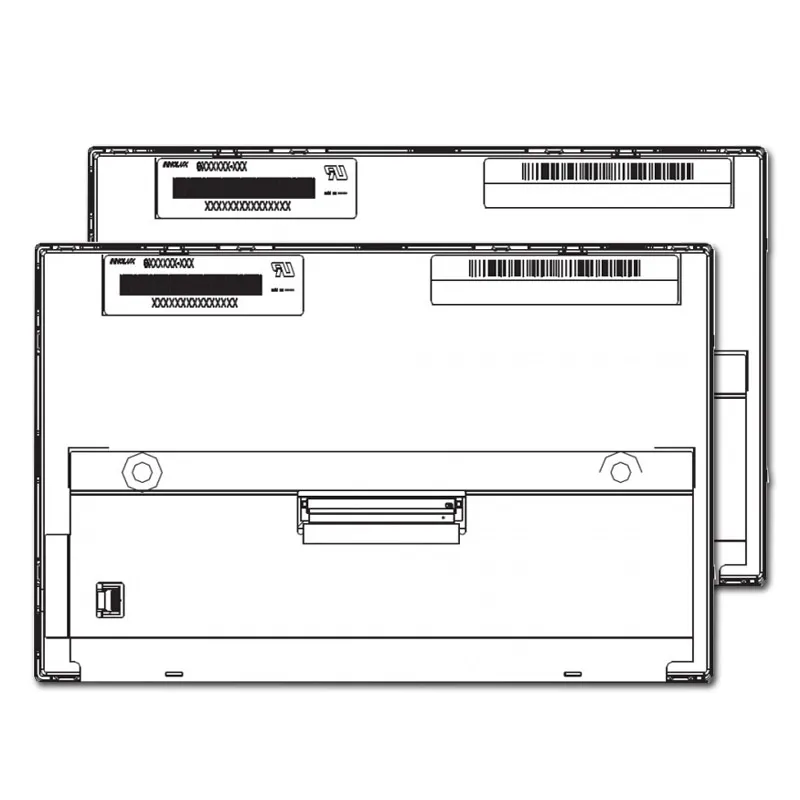

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G070ACE-LH1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux G070ACE-LH1?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux G070ACE-LH1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G070ACE-LH1

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~80℃

    Prise en charge de l'écran tactile :

    Type d'affichage :
