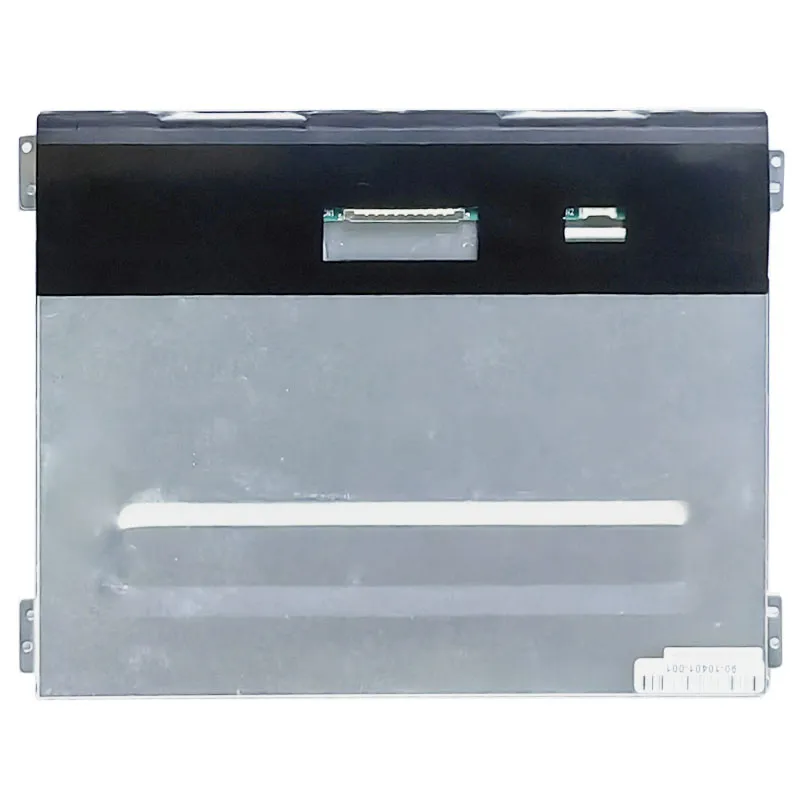

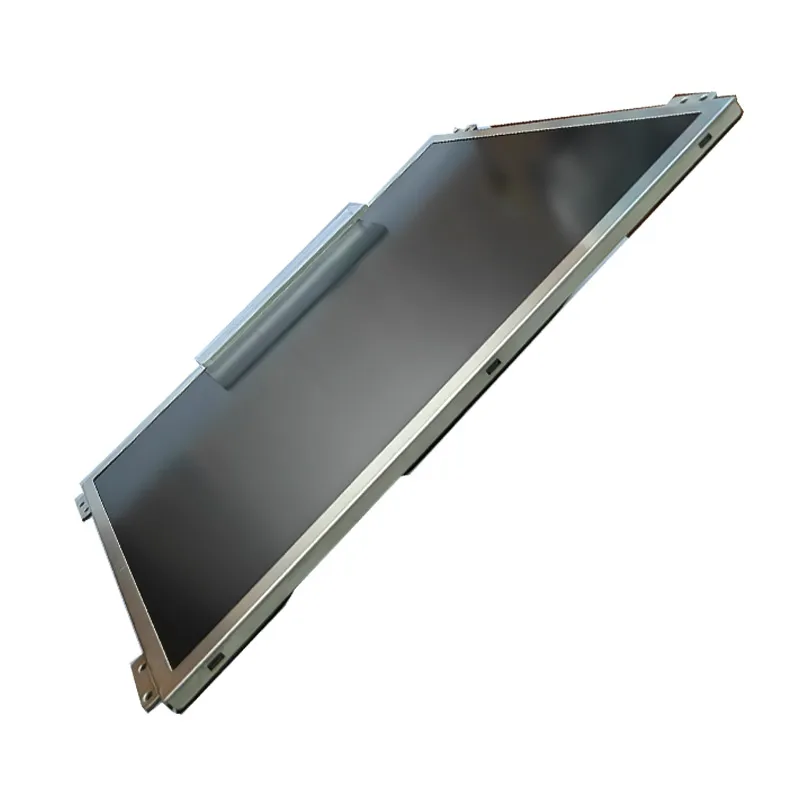

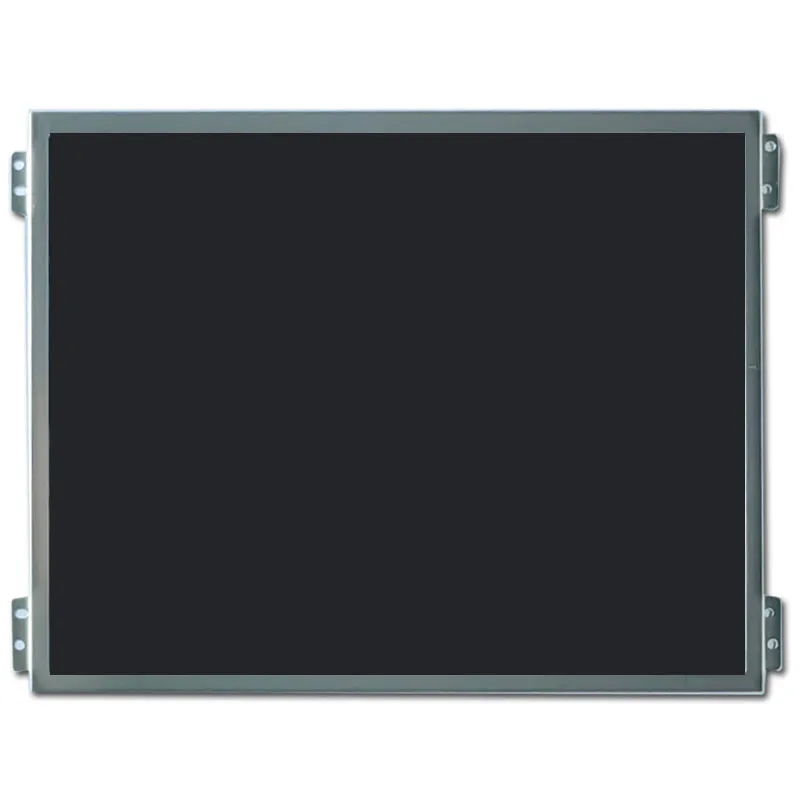

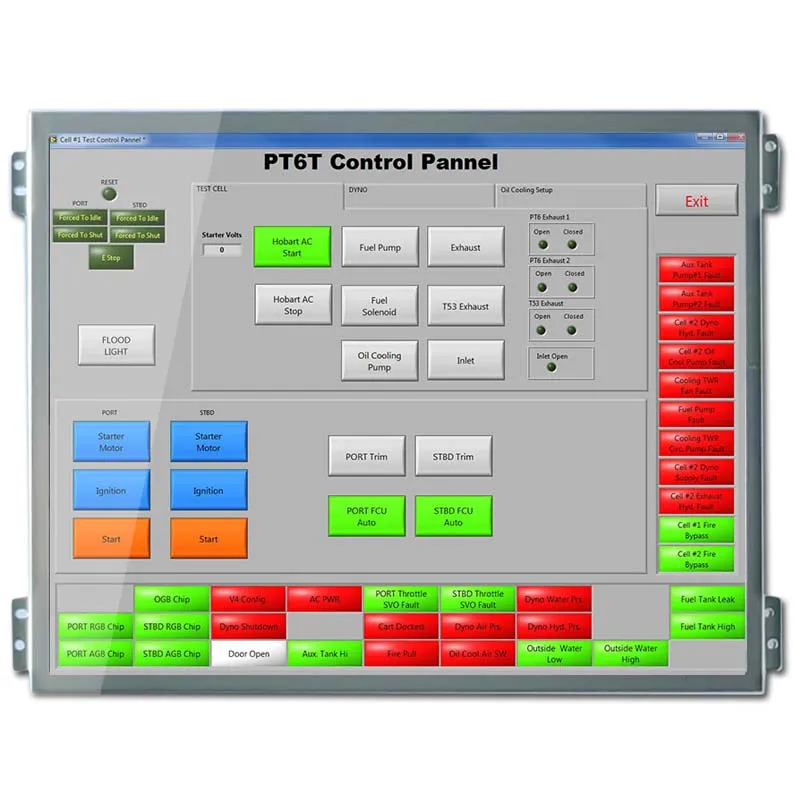

10.4 inch High Brightness LCD Panel 1024*768

COD: DS20098
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-30℃~80℃

Luminosità (cd/m²):

700

Supporto per touchscreen:

Tipo di display:

10.4 inch IPS display panel  -30℃ to 80℃  1024*768 Pixels  Serial LVDS Interface  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

    10.4" High Brightness LCD Panel Features

    With a brightness of 700 cd/m², this 10.4 inch TFT display is highly visible even in bright environments, making it ideal for outdoor and semi-outdoor use. The LED backlight, with a 30,000-hour lifespan, ensures long-term reliability and reduces maintenance needs. Its 1200:1 contrast ratio enhances image quality with deeper blacks and brighter whites for a more immersive viewing experience. Operating within a temperature range of -30°C to 80°C, the display is perfect for applications like automotive systems, industrial controls, medical devices, and outdoor displays, where high brightness and durability are crucial.



    10.4" LCD Panel with Reliable Performance

    This 10.40-inch display, with a wide temperature range of -30°C to 80°C and a high brightness of 700 cd/m², is designed for reliable performance in harsh industrial and outdoor environments. Its visibility in direct sunlight and durability make it ideal for applications like public displays, security systems, automotive dashboards, and industrial controls, where robust temperature tolerance and excellent brightness are essential.

    10.4" TFT-LCD Product Specifications

    Numero di modello  90-10401-001
    Dimensione 10.4
    Risoluzione 1024*768
    Dimensione del contorno 215.4*175.8*5.2
    Area attiva 210.43*157.82
    Luminosità (cd/m²) 700
    Interfaccia LVDS
    Visualizza la direzione ALL
    Temperatura di esercizio -30~80
    Temperatura di stoccaggio -30~80
    Durata del LED 30000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1200:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    10.4" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    10.4-Inch 1024 × 768 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 700 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 10.4-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1024 × 768 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -30℃~80℃

    Luminosità (cd/m²):

    700

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
