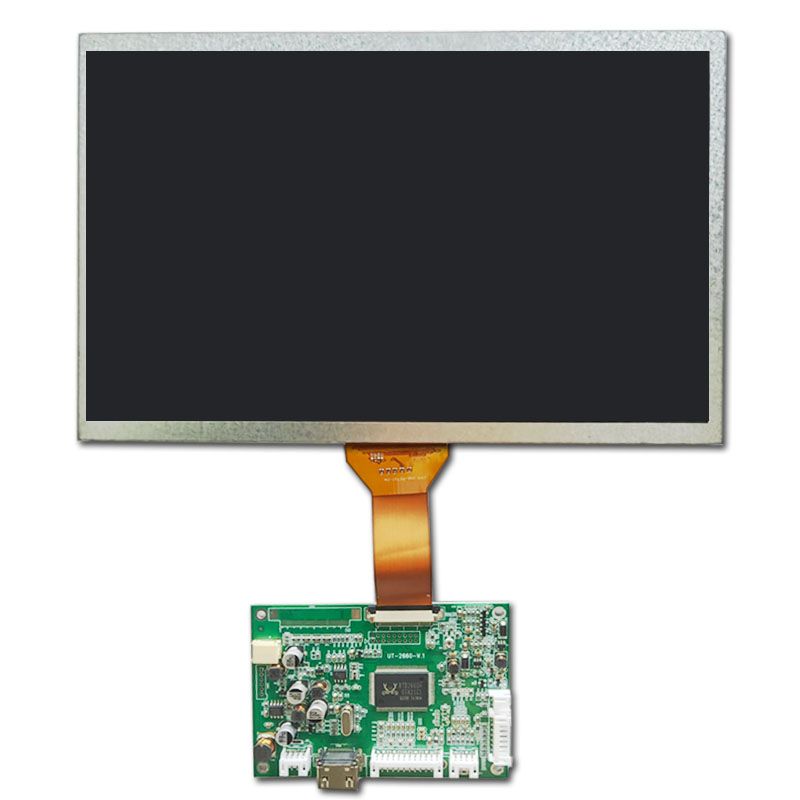

10.1 inch LCD Display Panel with LCD Controller Board

Description

10.1″ HDMI TFT Display Features

The 10.1 inch LCD Display Panel features a resolution of 1024 x 600 pixels and dimensions of 222.72 mm x 125.28 mm, providing a clear and vibrant visual experience. The driver board supports multiple video signal inputs, including HDMI, VGA, and CVBS, with HDMI compliant with the general 1.1 version. The VGA input accommodates a range of resolutions, such as 640 x 480, 800 x 480, 800 x 600, 1024 x 600, 1024 x 768, and 1280 x 800. It operates with a power input of DC +12V (within a range of 9V to 15V) and includes features like multi-function on-screen display (OSD), an optional remote control function, and automatic shutdown when no signal is detected, making it a versatile choice for various applications.

10.1″ HDMI TFT Display Application

The 90-10126-BH1 is a versatile 10.1″ LCD Display Panel featuring a resolution of 1024×600 pixels and comes equipped with a HDMI/VGA signal driver board. For added functionality, it offers optional touch panel support, including a 4-wire resistive touch panel with a USB driver board and cable, or a capacitive touch panel with a USB controller board and cable.
Designed for superior image quality, this display delivers full viewing angles, making it an ideal choice for a variety of applications, such as embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high-quality video output is essential. Its compatibility with Raspberry Pi via HDMI enhances its flexibility, supporting operating systems like Raspbian, Ubuntu, and Windows 10 IoT. The display also supports multi-touch and it is driver-free, ensuring ease of integration.

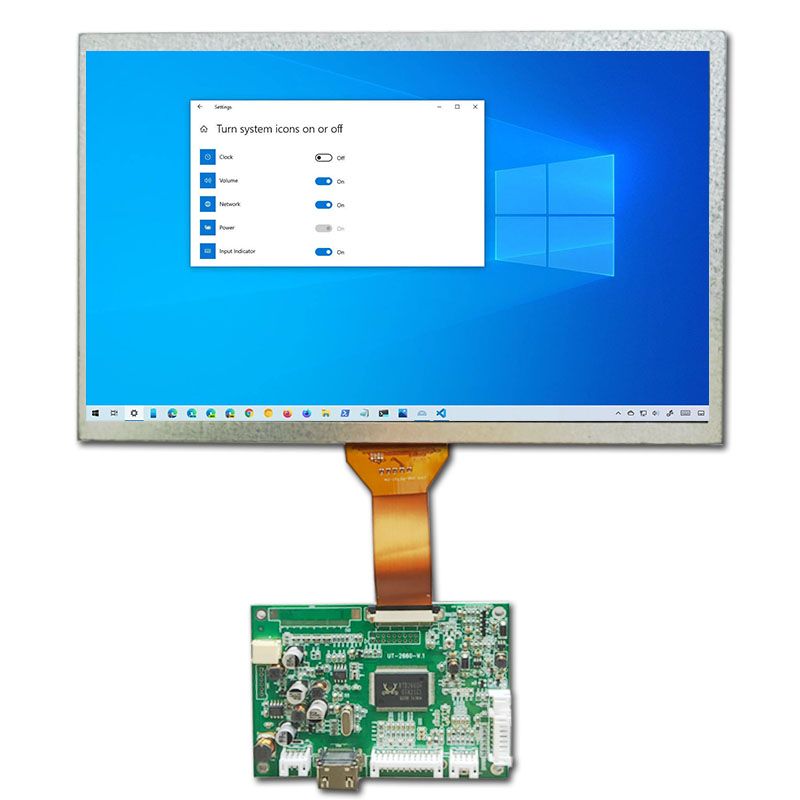

Beyond Raspberry Pi, the 90-10124-BH1 can serve as a computer display, offering compatibility with Windows 11, 10, 8, and 7. Its driver-free functionality and multi-touch capabilities make it a convenient display solution, suitable for a broad spectrum of applications.

10.1″ HDMI TFT Display Product Specifications

Diagonal Size	10.1(Diagonal)
Display Format	1024×600 Pixels
Interface	HDMI
IC or Equivalent	–
Connection	Plug-in FPC
Outline Dimension	235(W)x143(H)X5.1(T)mm
Active Area	222.72(W)x125.28(H)mm
Touch Panel Optional	Yes
Contrast Ratio(Typ)	600
Viewing Direction	TN
Viewing Angle Range	70/70 /70/70
Brightness(Typ)	400cd/m2
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
–	–

10.1″ HDMI TFT Display Custom Solutions

Optimize Your Cable Solutions

Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

LCD Interface Customization

Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

Elevate User Experience with Touch Screen Technology

Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

Custom Cover Glass

Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
