Description
10.1" TFT LCD Display Key Features
This 10.1-inch WXGA (1280x800) TFT LCD module utilizes advanced IPS technology to provide full viewing angles and an 800:1 high contrast ratio. Engineered for durability, it supports an industrial-grade operating temperature of -20°C to +70°C. By using original FOB glass, we ensure high quality and long-term supply stability with a significant price advantage. It is a perfect solution for industrial HMI, automotive systems, and medical devices.
Service & Support
Fast Lead Time: Standard products delivered within 30 days.
Quality Guarantee: Strict 5-step QC process and 1-year warranty.
Technical Support: Complete technical files (Datasheet, Initial Code) and samples are available for evaluation.
No High MOQ: Flexible order quantities to support project-based procurement and distribution.

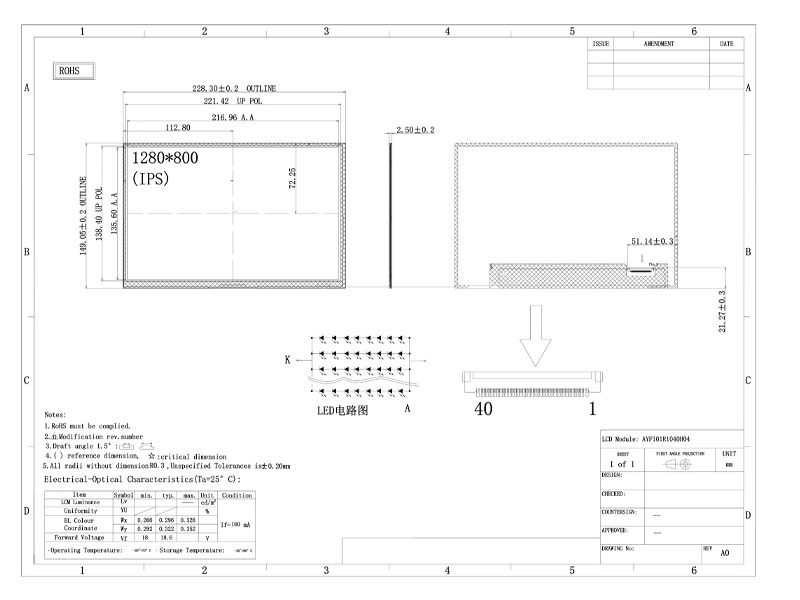

Technical Specifications
| Model Number | AYF101R1040H03-L |
|---|---|
| Size | 10.1 inch |
| Resolution | 1280(RGB)*800 |
| Outline Dimension | 228.3 (H) × 149.05 (V) × 2.5(D) |
| Active Area | 216.96 (H) × 135.60 (V) |
| Brightness(cd/m²) | 300 |
| Interface | LVDS |
| View Direction | IPS |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 30000 |
| Touchscreen Support | Capacitive Touch |
| Contrast Ratio | 300:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
10.1" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
