Description

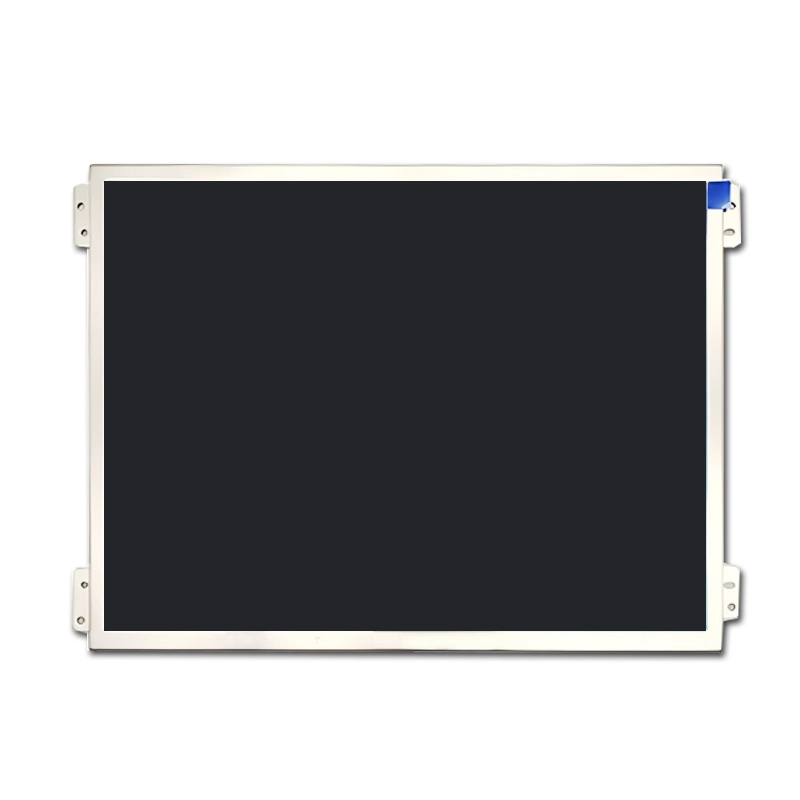

10.4 inch LVDS LCD Display Description
This 10.4 inch LCD display features a resolution of 1024x768 and an operating temperature range of -20~70℃. As an industrial-grade screen, it boasts stable quality and can replace some original screens from manufacturers like AUO and Innolux for selection needs.
15-year LCD factory direct sales. We have extensive experience in R&D and manufacturing of small-size, medium and large-size LCD screens. With reasonable prices, a one-year warranty, and professional R&D capabilities to solve technical issues.
10.4" LCD Display Specifications
| Model Number | AYF104R0830H01-L |
|---|---|
| Size | 10.4 |
| Resolution | 1024*768 |

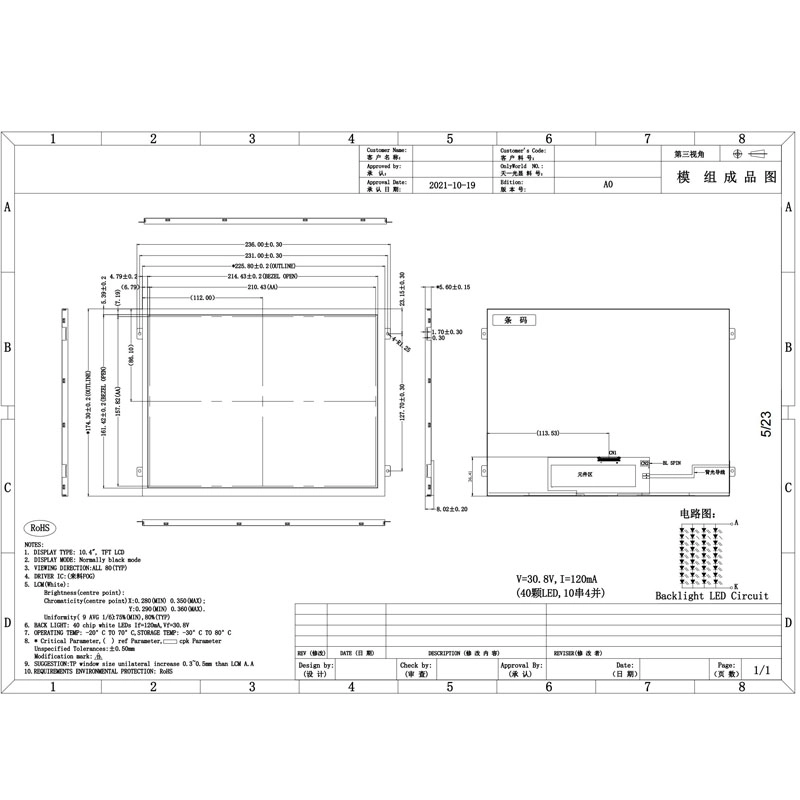

| Outline Dimension | 225.8*174.3*5.6 |
| Active Area | 211.2*158.48 |
| Brightness(cd/m²) | 600 |
| Interface | LVDS |
| View Direction | IPS |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 20000 |
| Touchscreen Support | No |
| Contrast Ratio | 700:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
10.4" TFT Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
