Description
11.6 inch G+G capacitive touch screen:
| Introduce this 11.6 inch G+G capacitive touch screen, supports 5-point multi-touch with touch + gesture operation.it operates reliably within a -20 ~ 70 °C temperature range, withstand diverse environments, suitable for industrial, commercial, or consumer applications. Advanced Features: ✓ Multi-touch capability with fast response and precise positioning Enables smooth interaction with rapid feedback and high-precision touch localization. ✓ Passed rigorous tests for high/low temperature, vibration, and heavy ball drop Proven durability under extreme environmental conditions and mechanical impacts. ✓ 24/7 online technical support from an in-house team, the factory-direct advantage, and worry-free after-sales service Immediate expert assistance, vertically integrated manufacturing, and comprehensive post-sales support. |
| 11.6 inch G+G capacitive touch screen | ||
| Construction | Cover Glass | Thickness: 1.1 mm±0.05mm |
| OCR | Thickness: 0.175mm ± 0.05mm | |
| Sensor | Thickness: 0.7mm ± 0.05mm | |
| Machanical Characteristics | Touch size | 11.6 inch |

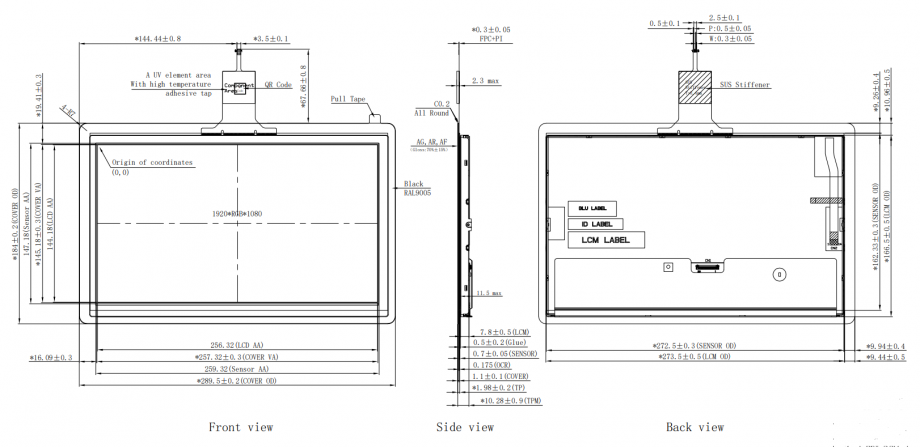

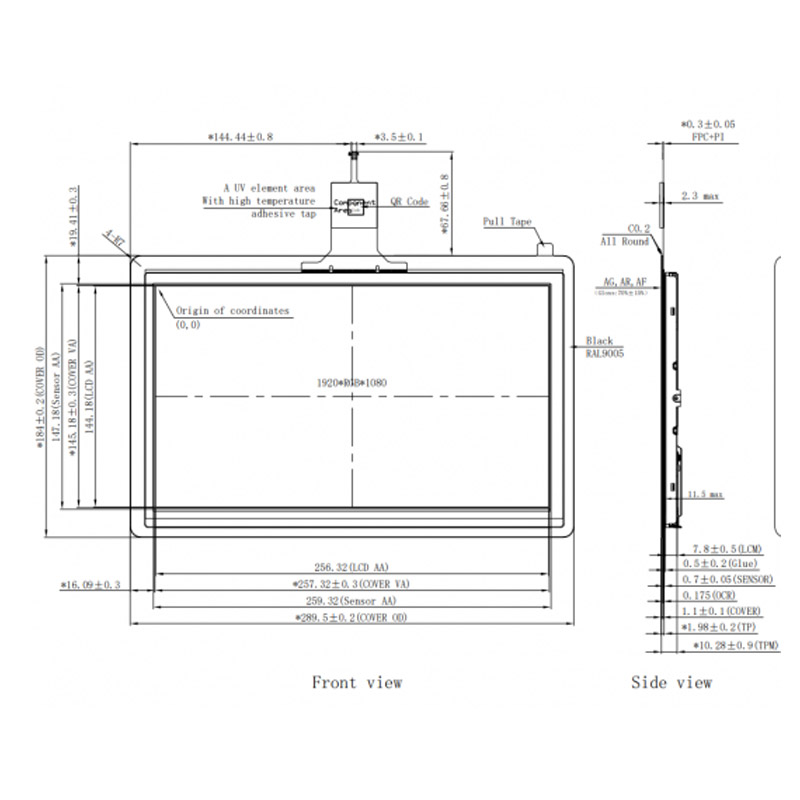

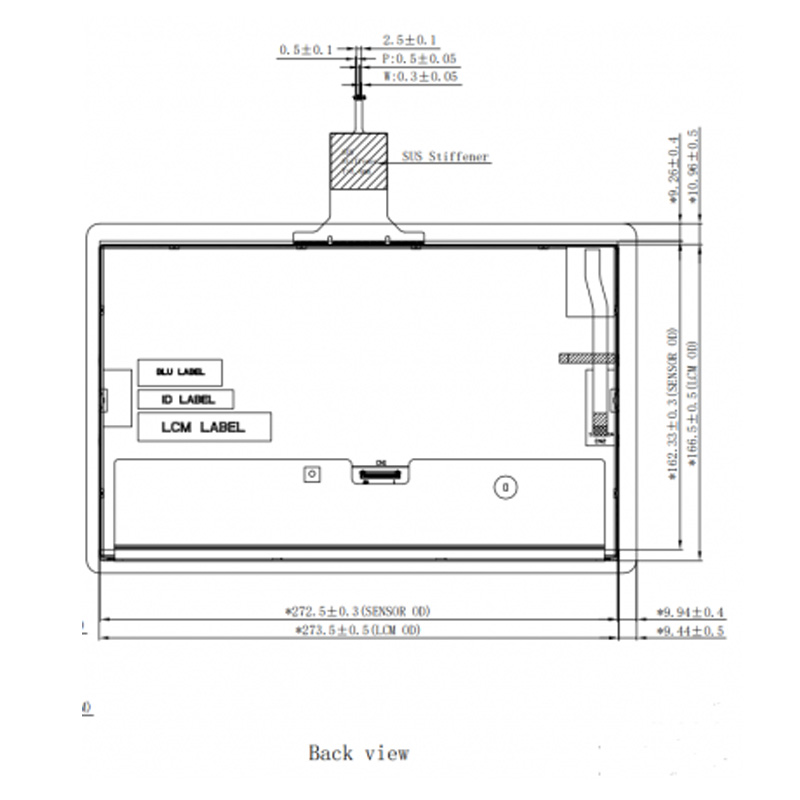

| Outer Dimension | 289.5*184 mm | |
| View Area | 257.32*145.18 mm | |
| Active Area | 259.32*147.18 mm | |
| TP Thickness | 1.98 mm±0.2 | |
| Number of Touch | 5 | |
| Interface | IIC | |
| Controller | Microchip | |
 |
||
