Description

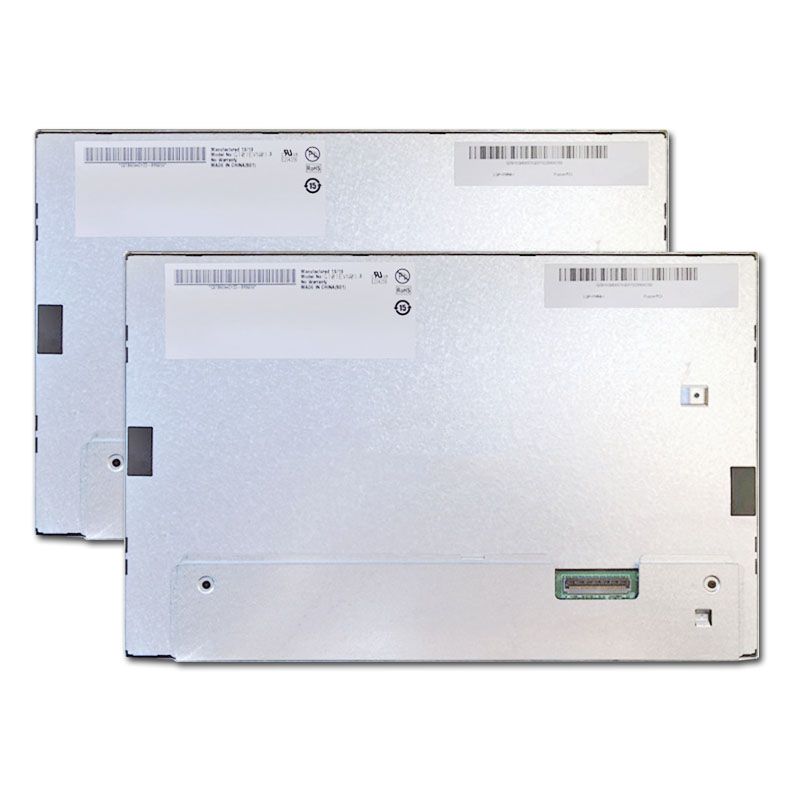

G101EVN01.3 General Description
G101EVN01.3 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:10 WXGA, 1280(H) x800(V) screen and 16.2M colors (RGB 6-bits + 2-bits dithering) with LED backlight driving circuit. All input signals are LVDS interface compatible.
G101EVN01.3 AUO LVDS Display Characteristics
The 10.1-inch AUO LVDS Display features an active area of 216.96 mm (H) x 135.6 mm (V) with a resolution of 1280 x 800 pixels, arranged in a RGB vertical stripe pattern and a pixel pitch of 0.1695 mm. Utilizing MVA (Multi-Domain Vertical Alignment) technology in a normally black display mode, it operates at a nominal input voltage of 3.3V with a maximum power consumption of 6.65W (including logic and backlight power). The module weighs up to 350 grams and has physical dimensions of 227.91 mm (H) x 148 mm (V) x 7.6 mm (T) (without the connector). It employs an LVDS electrical interface and features a surface treatment with anti-reflection (≤1.5%), hardness of 3H, and anti-static properties. Supporting 16.2 million colors (8-bit) and 262K colors (6-bit), the display operates effectively within a temperature range of -20°C to +70°C (central) and can be stored in temperatures from -30°C to +80°C. The module is also RoHS compliant, ensuring adherence to environmental standards.

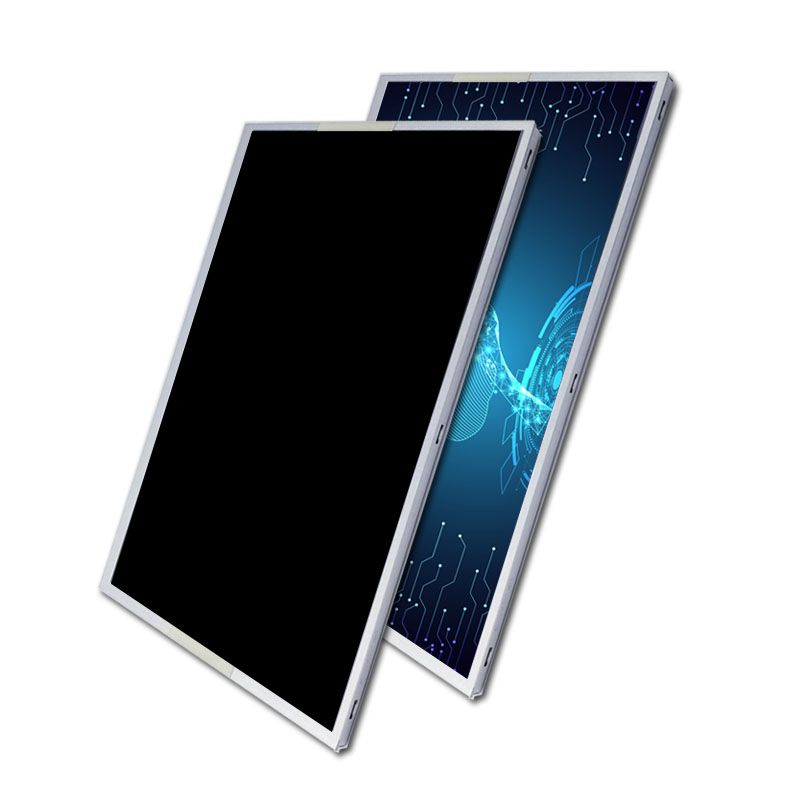

10.1" TFT-LCD Product Specifications
| Model Number | G101EVN01.3 |
|---|---|
| Size | 10.1 |
| Resolution | 1280*800 |
| Outline Dimension | 227.91*148*8.34 |
| Active Area | 216.96*135.6 |
| Brightness(cd/m²) | 500 |
| Interface | LVDS |
| View Direction | ALL |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Contrast Ratio | 1300:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
10.1" TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
