Description
12.1 inch TFT LCD Highlight
High-Performance 12.1" Industrial IPS LCD - The Perfect Replacement for Original Brands Experience superior visual clarity with our self-developed 12.1-inch TFT LCD. Boasting an industry-leading 1500:1 contrast ratio and IPS full viewing angles, this display delivers vivid, accurate colors even in challenging industrial environments. Designed for reliability, it operates across a wide temperature range (-20°C to 70°C) and features a versatile LVDS interface. With our factory-direct pricing and full customization support, we provide a cost-effective, high-quality alternative for your project needs.
Why Choose US:
Superior Contrast: Our 1500:1 contrast ratio significantly outperforms standard 800:1 displays, ensuring sharper text and deeper blacks.
Industrial Ruggedness: Built for stability in harsh conditions with wide temperature tolerance and long backlight life.
Cost Efficiency: Direct factory R&D allows us to offer premium IPS quality at a price point much lower than original branded equivalents.
Flexible Customization (OEM/ODM):
Brightness Upgrades: Up to 1000+ nits for outdoor visibility.
Tailored Interface: FPC/Interface modifications to match your mainboard.
Touch Solutions: Custom Capacitive Touch (PCAP) with your Logo on the cover glass.
Service Commitment:
No MOQ for standard samples.
Strict Quality Control: 5-step QC process with 1-year warranty.
Fast Support: Comprehensive technical data and localized service for global markets.

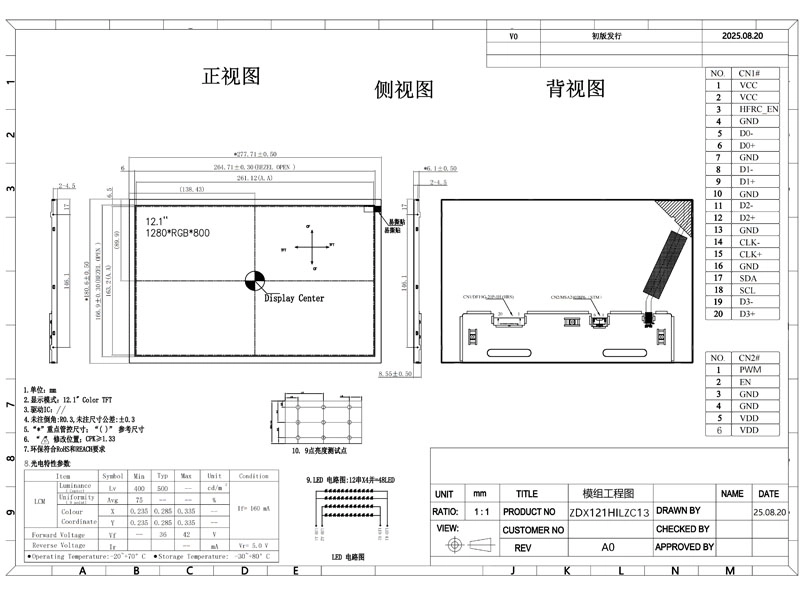

Technical Specifications
| Model Number | ZDX121HILZC13 |
|---|---|
| Size | 12.1 inch |
| Resolution | 1280(RGB)*800 |
| Outline Dimension | 277.71 (H) × 180.6 (V) × 6.1(D) |
| Active Area | 260.35 (H) × 162.72 (V) |
| Brightness(cd/m²) | 500 |
| Interface | LVDS(8-bit) |
| View Direction | IPS |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 30000 |
| Touchscreen Support | Custom |
| Contrast Ratio | 1200:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
12.1" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
